Description
- Model: PPC902AE101
- Brand: ABB
- Part Number: 3BHE010751R0101
- Series: ABB AC 800PEC / PPC900 controller family
- Part Type: Control/processor board
- Core Function: Provides processing and control functions within compatible ABB power-electronics control systems
- Key Identification: PPC902AE101, 3BHE010751R0101
Product Introduction
The ABB PPC902AE101 3BHE010751R0101 is a controller board used in ABB power-electronics control architectures where the processor hardware is tied directly to the application firmware and I/O configuration.
This assembly is associated with ABB’s AC 800PEC / PPC900 controller family and is commonly treated as a legacy automation spare for installed power-converter equipment. The exact application and hardware revision should be checked against the cabinet documentation, board label, firmware version, and connected I/O before purchase. Publicly indexed secondary references identify PPC902AE101 with 3BHE010751R0101, but detailed OEM electrical specifications for this exact revision are not consistently published. For a legacy migration or emergency replacement, retaining a verified New Surplus or tested spare can avoid unnecessary controller-system changes.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | PPC902AE101 |
| ABB Part Number | 3BHE010751R0101 |
| Product Type | Controller / Processor Board |
| Controller Family | PPC900 |
| Associated Platform | ABB AC 800PEC |
| Application | Power-electronics control systems |
| Hardware Revision | AE101 |
| Condition | New Original, New Surplus, or refurbished depending on stock |
| Lifecycle | Legacy maintenance spare |
Please refer to the OEM documentation for complete processor specifications, memory configuration, power requirements, communication interfaces, firmware compatibility, environmental tolerances, dimensions, and connector assignments.

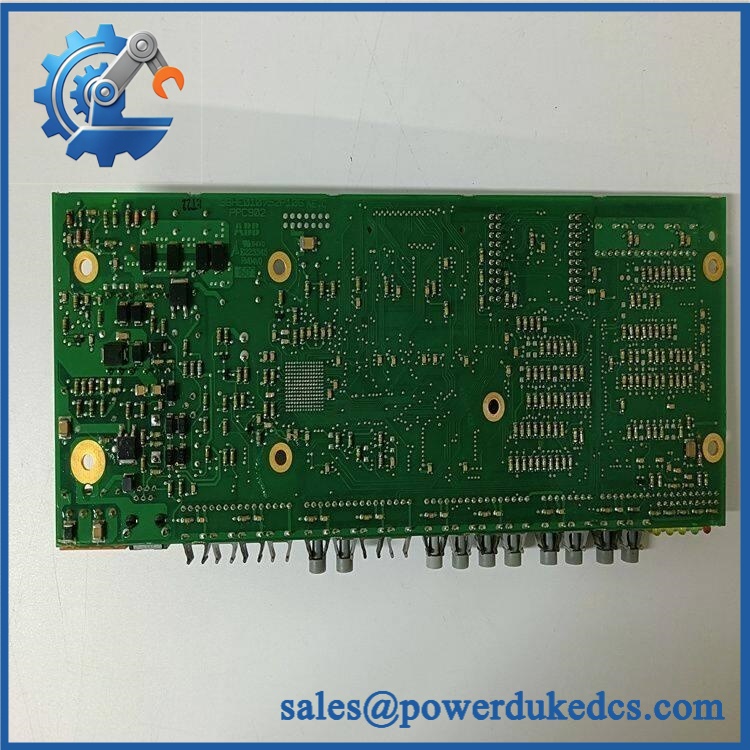

ABB PPC902AE101 3BHE010751R0101
Application Scenarios & Pain Points
During a converter shutdown, a failed PPC board can prevent the system from reaching a usable control state even when the power stage and field hardware remain serviceable. Keeping an exact replacement reduces the need to modify the existing control architecture.
For legacy ABB power-converter installations, the board may be tied closely to application-specific firmware and configured I/O. A replacement therefore needs more than a matching connector; the hardware revision and software environment have to agree.
In cabinets operating around 50°C ambient or higher, inspect ventilation, fan operation, cabinet temperature, and power-supply quality before installing the spare. Heat-related processor faults can recur when the underlying cabinet condition is not corrected.
On a planned turnaround, a tested controller board with known identification and configuration records is considerably easier to qualify than an unidentified used board sourced after the failure occurs.
Common Error Codes & Diagnostic Symptoms
Controller fails to initialize / no normal processor status → Diagnosis: Check control power, board seating, backplane connections, and processor-board condition → Action: Replace the PPC902AE101 after the external supply and backplane have been verified.
Unexpected controller reset or intermittent control loss → Diagnosis: Investigate power quality, cabinet temperature, connector condition, and board-level hardware faults → Action: Replace the controller board if the fault follows the board.
Application fails after hardware replacement → Diagnosis: Check firmware revision, application configuration, I/O mapping, and controller compatibility rather than assuming the replacement PCB is defective → Action: Load only the OEM-approved configuration or use a correctly matched replacement assembly.
No reliable public source reviewed provides a verified numeric ABB fault-code table specifically for PPC902AE101, so unsupported error numbers are not listed here.
Cross-Reference & Lifecycle Migration
Primary identification: PPC902AE101 / 3BHE010751R0101.
The available references reviewed do not establish a verified universal replacement chain, such as a direct drop-in range covering earlier PPC902 revisions. Firmware requirements are also application-specific and should not be assumed from the board number alone.
Before a legacy migration, record the installed board revision, firmware version, application configuration, I/O mapping, and communication setup. A physically compatible PPC900-family board can still be unsuitable if the software environment does not match.
Lifecycle: Legacy / limited-availability maintenance spare. For an installed ABB AC 800PEC system, keeping at least one tested spare is sensible where a controller failure would stop converter operation and replacement sourcing may involve long lead times.
Field Engineer’s Tech Notes
- Back up the configuration before pulling the failed board. Capture firmware information, application parameters, DIP/jumper settings if present, connector positions, and I/O mapping. In the field, these records often matter as much as the replacement PCB itself.
- Protect the board from ESD. The PPC902AE101 is an electronic controller assembly. Use an ESD-safe work area, wrist grounding, and antistatic packaging. Never place the replacement PCB directly on a metal cabinet surface or unapproved workbench.
Strict QA & Testing SOP
1. Inbound identification
Verify PPC902AE101 and 3BHE010751R0101 against the purchase order. Record serial number, revision markings, and visible firmware information where available.
2. Physical inspection
Check connectors, PCB condition, mounting points, components, labels, and evidence of corrosion, contamination, or overheating.
3. Electrical inspection
Inspect for shorts or abnormal resistance before controlled power-up. Verify the applicable control supply using the OEM test procedure.
4. Live-rig testing
Where a compatible ABB AC 800PEC/PPC900 test setup is available, power the board and verify processor startup, status indications, communication, and expected controller behavior.
5. Configuration verification
Confirm the hardware revision and available firmware/configuration information against the customer’s installed system. Where approved, test representative I/O and communication functions.
6. Final QC and packaging
Record test results, photograph the board, protect it with ESD packaging, and use shock-resistant packaging suitable for international shipment.
Test reports, inspection photographs, and available test videos can be provided upon request.

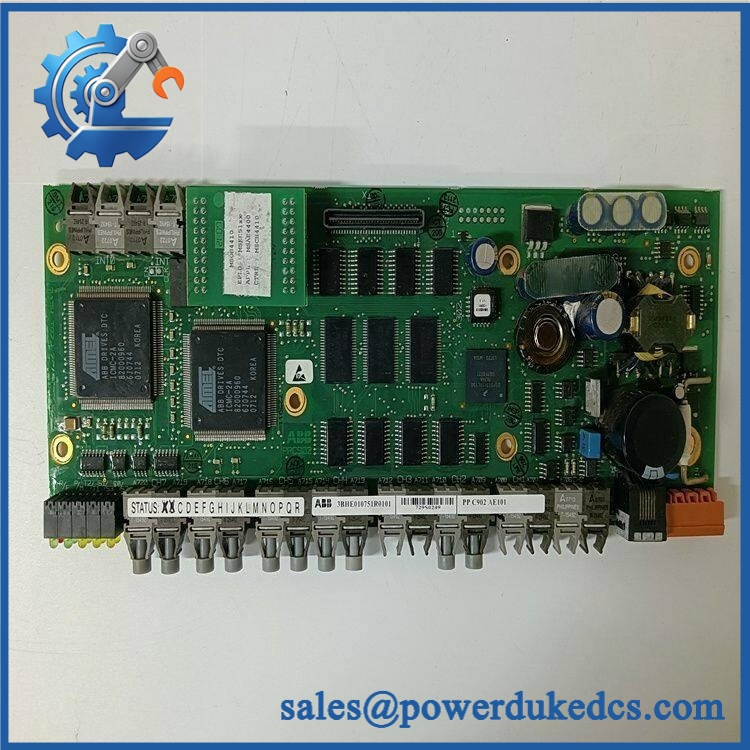

ABB PPC902AE101 3BHE010751R0101
Buyer’s FAQ
Can I install PPC902AE101 directly without changing the system software?
Not automatically. The board may depend on application-specific firmware and configuration. Verify the installed hardware revision and software environment before replacement.
Is 3BHE010751R0101 the same part as PPC902AE101?
Yes, these are the two primary identification numbers associated with the requested assembly. The physical nameplate should still be checked for revision or additional suffix information.
Is this a New Original ABB part?
Condition depends on the actual inventory lot. New Original, New Surplus, and professionally refurbished units may be available. The quotation should state condition, test status, and any available traceability information.
Can the board be tested before shipment, and what warranty is provided?
Where a suitable ABB test environment is available, the board can be checked for power-up, processor operation, communication, and applicable I/O behavior. Warranty depends on the supplied condition and commercial terms; confirm the warranty period and return conditions before purchase.
