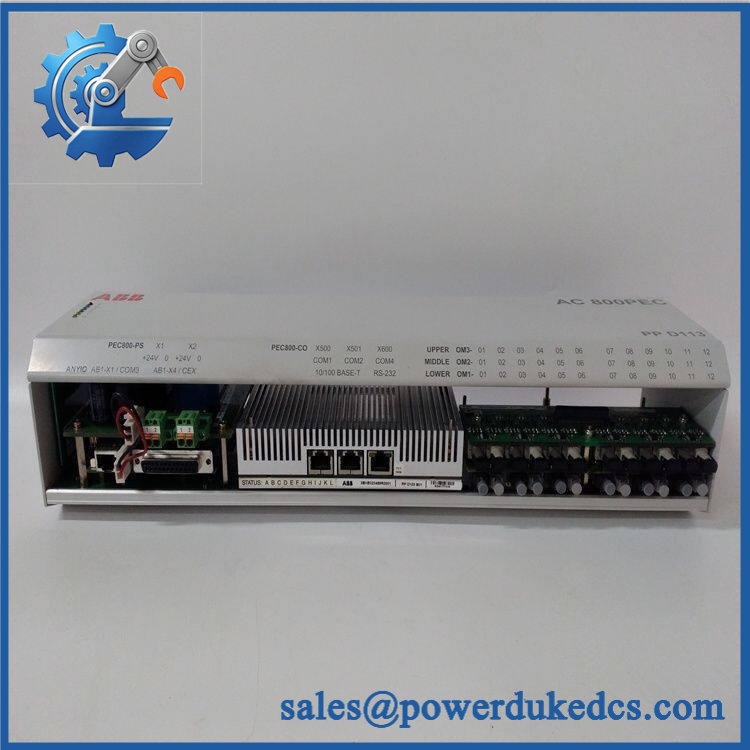

ABB PPD103B101 3BHE020455R0101 | AC 800PEC Control Module

Description

• Model: PPD103B101
• ABB Product ID: 3BHE020455R0101
• Brand: ABB
• Series / Platform: AC 800PEC
• Part Type: Excitation control / processor board
• System Application: Generator excitation and power electronics control
• Cross-Reference: PPD113 is associated with this part number in multiple industrial spare references.

Product Introduction

In a generator excitation system, a failed control processor can stop an otherwise healthy power section from regulating the generator correctly. The ABB PPD103B101 3BHE020455R0101 is identified in industrial spare-part references as an excitation control board/controller associated with the AC 800PEC platform. Several supplier cross-reference databases also associate PPD113 with PPD103B101 / 3BHE020455R0101, making those identifiers useful when tracing legacy invent

In field deployments, this part should be treated as a configured controller rather than a generic PLC card. Exact compatibility depends on the host AC 800PEC/PEC system, application software, hardware revision, and the surrounding excitation architecture. Public sources provide conflicting descriptions of its detailed I/O and electrical characteristics, so unsupported channel counts or operating limits should not be copied into an engineering specificat

Core Technical Specifications

ABB PPD103B101 3BHE020455R0101

Multiple industrial sources identify PPD103B101 3BHE020455R0101 as an ABB excitation/control module and associate it with AC 800PEC. However, detailed technical data published by third-party sellers is inconsistent; the OEM documentation and installed-unit nameplate should control the final engineering specificat

Application Scenarios & Pain Points

A generator excitation controller develops a hardware fault while the power stage remains serviceable. Replacing the controller board can restore the control path without replacing the entire excitation cabinet, provided the replacement hardware and application configuration match.

For hydroelectric generation, the PPD103B101 can be relevant to legacy excitation-system spare coverage where the plant is maintaining an existing AC 800PEC architecture instead of performing a full legacy migration.

In thermal power plants, the same procurement concern appears during planned outages: a controller that has been unavailable for years may be difficult to source quickly, making an exact tested spare useful for shutdown inventory.

During emergency troubleshooting, processor or controller diagnostics should be reviewed before replacing I/O or power modules. A common-control hardware failure can create several downstream symptoms at once.

Common Error Codes & Diagnostic Symptoms

Symptom: Excitation controller fails to initialize or remains unavailable → Diagnosis: Possible controller hardware, power, configuration, or communication fault. → Action: Verify supply and system diagnostics first; replace the only after the controller is identified as the failed element.

Symptom: Control-system communication to the excitation controller is lost → Diagnosis: Could originate from the controller, communication path, or host configuration rather than the excitation power section. → Action: Check interface status and cabling, then compare the replacement controller’s revision and configuration.

Symptom: Generator excitation regulation becomes unavailable after controller fault → Diagnosis: Loss of the control processor can prevent normal excitation regulation even when the power stage remains operational. → Action: Follow the approved excitation-system recovery procedure and replace the failed controller with a verified compatible unit.

No reliable OEM source was found establishing specific numeric fault codes for , so unsupported error numbers should not be attributed to this part.

Cross-Reference & Lifecycle Migration

Primary identification: = 3BHE020455R0101. Industrial spare listings consistently pair these two numb

Related reference: Multiple supplier databases associate PPD113 with / 3BHE020455R0101. That is useful for inventory searches, but it should not be interpreted as proof that every PPD113 revision is a direct drop-in replacem

Firmware: No reliable public source establishes a mandatory firmware flash specifically for 3BHE020455R0101. Before commissioning, compare the installed firmware/application revision with the replacement unit and the target AC 800PEC configuration.

Lifecycle status: The part is best treated as a legacy / limited-availability spare from a procurement perspective. Current aftermarket listings show stock availability can exist, but the exact condition may range from new to used. For plants with AC 800PEC excitation equipment still in service, maintaining an exact tested spare reduces exposure during planned outa

ABB PPD103B101 3BHE020455R0101

Field Engineer’s Tech Notes

1. Save the controller configuration before removal.
Do not assume the replacement will inherit the plant’s application settings automatically. Record the installed hardware revision, software/firmware information, configuration files, and communication settings before taking the failed controller out of service.

2. Do not approve PPD113 as a substitute from the cross-reference alone.
Supplier databases associate with this part number, but the replacement decision should be based on the actual ABB system documentation, revision information, connectors, and application compatibility. A matching base designation does not eliminate revision-control iss

Strict QA & Testing SOP

1. Inbound inspection: Verify / 3BHE020455R0101, nameplate markings, serial number where present, revision information, connectors, mounting hardware, and PCB condition.

2. Configuration capture: Compare the replacement against the failed unit. Photograph connector positions and any accessible hardware settings before shipment or installation.

3. Power-up test: Apply the appropriate controlled power source using the manufacturer’s procedure and verify normal startup behavior, status indicators, and absence of immediate hardware alarms.

4. Controller diagnostics: In a suitable AC 800PEC test environment, check controller recognition, processor health, system communication, and applicable diagnostic information.

5. Application verification: Where the customer’s test environment allows, load or verify the required application configuration and confirm that the controller communicates correctly with the surrounding excitation-control hardware.

6. Extended run check: Run the unit under controlled conditions to identify intermittent startup, communication, or thermal behavior before release.

7. Final QC: Record test results, photograph the tested unit, use ESD-safe packaging, and protect connectors during transport.

Test reports, inspection photographs, and available test videos can be provided upon request.

Buyer’s FAQ

Is the same as 3BHE020455R0101?

Yes. Industrial spare references identify and 3BHE020455R0101 as the same ABB part-number p

I also see listed against this number. Is that a direct replacement?

is associated with this part number in several industrial cross-reference listings, but that does not by itself prove direct interchangeability across every revision or excitation-system configuration. Compatibility should be checked against the actual AC 800PEC installat

Can this controller be hot-swapped?

Do not assume hot-swapping is permitted. An excitation controller is part of a generator control system, and replacement should follow the approved plant maintenance and electrical isolation procedure.

Is the available unit New Original, New Surplus, or refurbished?

The actual condition depends on inventory. Request confirmation of New Original, New Surplus (NSFP), or refurbished status, together with actual-part photographs, serial/part-number verification, test status, warranty, and lead time
