ABB PPD113B01-10-150000 | High-Speed Controller Module

Description

• Model: ABB PPD113B01-10-150000
• ABB Product ID: 3BHE023784R1023
• Product family: AC 800PEC
• Product type: High-performance process controller / power-electronics controller.
• Primary application: ABB AC 800PEC control systems, including high-power rectifier and power-conversion applications. ABB documentation identifies the product as AC 800PEC and specifies an ANYIO-1 (U4) CEX2-Bus RS422 configuration.
• Physical dimensions: A reliable manufacturer dimension set was not located in the available documentation. Do not use an estimated W × H × D figure for cabinet-fit or freight planning.
• Estimated net weight: Approximately 2.63 kg based on a current product listing. Treat this as a supplier-listed value rather than an ABB-certified dimensional specification.
• Shipping weight: Higher than net weight once the ESD bag, cushioning, carton, and outer packaging are included.
• What’s in the box: Normally the PPD113B01-10-150000 controller unit. Do not assume power supplies, communication cables, mounting hardware, or engineering software are included unless explicitly stated on the packing list.
• Receiving record: Capture PPD113B01-10-150000, 3BHE023784R1023, serial number, hardware revision, date code, and packaging condition.

Product Introduction

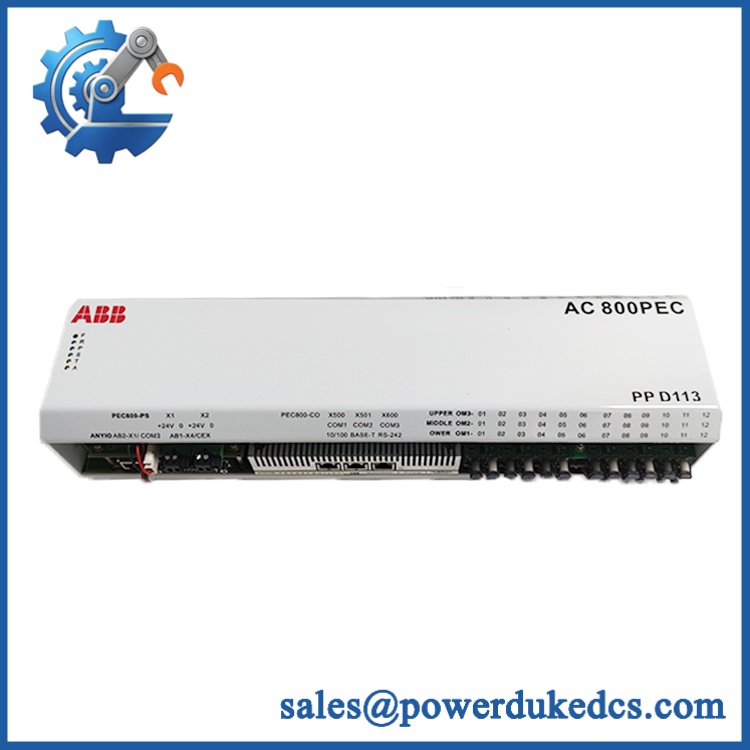

The ABB PPD113B01-10-150000 belongs to the AC 800PEC controller family, a platform intended for high-speed industrial control and power-electronics applications. ABB-associated documentation identifies 3BHE023784R1023 with the AC 800PEC system and lists an ANYIO-1 slot with CEX2-Bus RS422, while the second ANYIO slot is specified as empty for this configuration.

From an asset-control standpoint, this is a controller assembly rather than a conventional AC 800M I/O module. Its application is particularly relevant to high-power rectifier and converter equipment, where controller timing and interface compatibility have direct consequences for equipment behavior. One current listing also identifies the unit as an AC 800PEC controller and gives a 2.63 kg weight, but that weight should be confirmed against the actual asset before logistics documentation is issued.

Core Technical Specifications

ABB PPD113B01-10-150000

ABB’s available system documentation confirms the AC 800PEC designation and slot configuration.

Important: Several third-party listings incorrectly describe this same part as a 48 VDC / 150 A power supply or an analog I/O module. Those descriptions conflict with the ABB-associated identification of 3BHE023784R1023 as an AC 800PEC system/controller configuration. Do not use those conflicting specifications for purchasing or installation.

? Global Compliance & Industry Certifications

For this type of industrial controller, certification should be established from the actual ABB product documentation and installed system, rather than inferred from the model number.

• CE Mark: Verify the applicable ABB Declaration of Conformity for the controller revision and complete system.
• UL/cUL: Confirm the relevant North American certification where required by the installation jurisdiction.
• ATEX / IECEx: Do not assume the controller is suitable for direct hazardous-area installation. The complete enclosure, power system, wiring, and certified installation must be evaluated.
• Marine approvals: For marine or offshore projects, verify DNV, ABS, or the specific project approval for the complete AC 800PEC installation.
• RoHS: Verify the applicable environmental declaration for the exact hardware revision.

For high-power converter applications, certification of the complete power-conversion system is more important than relying on a component-level marking alone.

Verify specific lot certifications with OEM.

? Long-Term Storage & Asset Preservation Guide

Keep the controller inside its original ESD shielding packaging. Do not repeatedly remove a high-value spare from its protective bag simply for visual inventory checks.

Control humidity and condensation. Use a clean, dry warehouse environment with stable temperature. Before opening a unit moved from a cold storage area into a warmer environment, allow it to reach ambient temperature first.

Preserve configuration identity. Record the hardware revision, serial number, date code, and any memory/configuration media supplied with the controller. For an AC 800PEC spare, the physical controller alone may not contain the application configuration required by the installed machine.

Do not apply power periodically merely as a storage-preservation exercise unless ABB’s applicable maintenance procedure specifically requires it. Unnecessary energized testing introduces electrical and ESD handling risks.

Physical Installation Prerequisites

• Mounting: Install only in the designated AC 800PEC chassis/system arrangement. Do not treat the PPD113B01 as a generic DIN-rail controller.
• Clearance: Use the ABB mechanical installation drawing for the applicable AC 800PEC enclosure. A generic 50 mm clearance rule should not replace the specified cabinet arrangement.
• Cooling: Maintain the designed airflow around the controller and associated power-conversion hardware. Keep ventilation paths clear of cable bundles and packaging material.
• Grounding: Follow the ABB protective-earth and cabinet bonding scheme.
• Communication: Confirm the CEX2-Bus / RS422 arrangement before reconnecting the controller. The identified configuration uses ANYIO-1/U4 for this interface.
• Configuration: Verify the controller’s application software, firmware revision, and machine-specific parameters before commissioning.
• ESD: Use grounded ESD protection while handling the exposed controller and its connectors.

Check the exact hardware revision before installation. AC 800PEC application compatibility should be established from the installed system documentation, not from the model number alone.

Buyer’s FAQ

Q1: What HS tariff code should be used for PPD113B01-10-150000?

Do not assign a final HS code solely from the part number. The classification depends on the confirmed controller function and the importing country’s tariff schedule. Provide the customs broker with ABB 3BHE023784R1023, the technical description, and supporting documentation before filing.

Q2: Does the Country of Origin need to match the invoice?

Yes. The COO should represent the actual origin of the supplied unit, not the seller’s location or shipping origin. Keep the commercial invoice, packing list, and Certificate of Origin consistent, particularly when preferential tariff treatment is being requested.

Q3: What shipping weight should I declare?

A current supplier listing gives the unit a 2.63 kg weight. This should be treated as a net-weight planning reference, not automatically as gross weight. Weigh the fully packed shipment before issuing freight documents.

For an expensive AC 800PEC controller, shipping insurance should reflect the documented commercial value. Photograph the original packaging, ABB nameplate, serial number, and outer carton before dispatch.

Q4: Does the include the latest firmware?

Do not assume it does. AC 800PEC controllers are configuration-dependent, and the required firmware/application combination must match the installed system. Before purchasing a replacement, request the hardware revision, firmware revision, serial number, and application/configuration status of the actual unit.

The ABB-associated documentation identifies 3BHE023784R1023 as the AC 800PEC system product ID, so this complete identity should be used when matching a replacement rather than relying on the shorter PPD113B01 designation alone.
