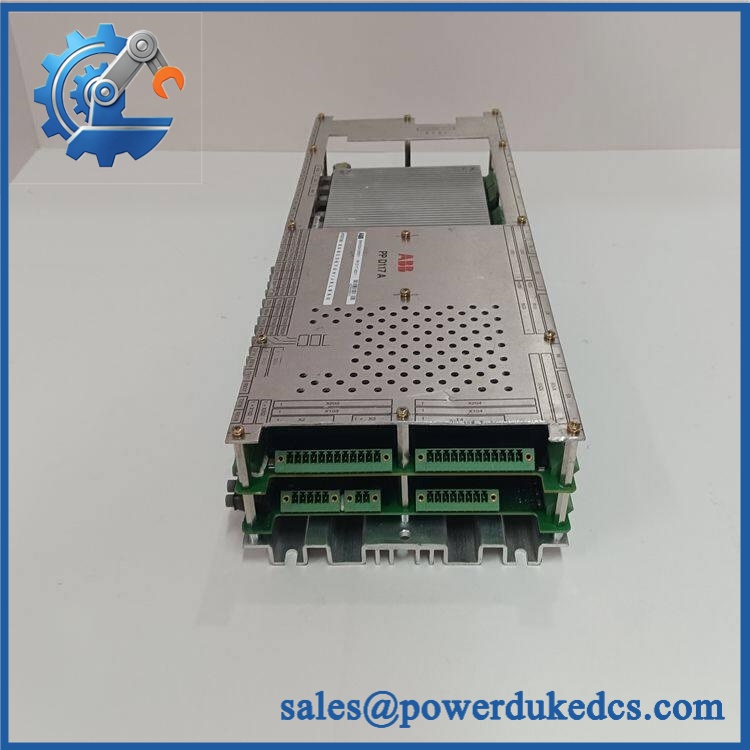

ABB PPD117A 3BHE030410R3011 | Excitation System Controller

• Brand: ABB
• Full Model Number: PPD117A
• Part Number: 3BHE030410R3011
• Lifecycle Status: Legacy installed-base component
• Core Function in System: AC 800PEC excitation-system control and processing
• Top 3 Hardcore Specs: AC 800PEC platform; generator excitation control; central control processing
• System Association: ABB AC 800PEC excitation systems
• Primary Function: Generator excitation regulation and control
• Communication: System configuration dependent
• Condition & Lead Time: Tested inventory or factory-sealed stock; emergency dispatch subject to confirmed availability

Module 3: Technical Intro & Downtime Impact

A failed excitation controller can keep a generator from completing its normal start-up sequence or maintaining the required excitation state. During a forced outage, the replacement therefore has to restore more than simple power and communications. ABB PPD117A 3BHE030410R3011 is associated with the AC 800PEC excitation-control platform and serves as a central control component within generator excitation systems.

Exact electrical specifications for this legacy part number are not sufficiently documented across available technical records to justify publishing unverified CPU speed, memory size, voltage tolerance, or thermal limits. The correct approach is to match the installed controller’s hardware revision, firmware, cabinet configuration, and application parameters. That discipline can reduce MTTR by preventing a technically similar but incompatible controller from being installed during an outage.

Module 4: Dynamic Emergency Swap & Configuration Guide

1. Pre-Swap Prep — capture the existing controller state
Place the generator and excitation system in the plant-approved maintenance condition. Complete the required LOTO procedure and verify safe access to the control cabinet. Photograph the PPD117A nameplate, connector arrangement, LED states, mounting position, and adjacent AC 800PEC hardware. Record the complete 3BHE030410R3011 identification, hardware revision, firmware information, communication parameters, and current controller configuration. Use ESD protection throughout the procedure.

2. Removal — preserve every connector reference
After approved isolation, label each connector before disconnecting it. Record connector positions against the cabinet drawing rather than relying on wire colors. Release the controller from its retaining hardware and withdraw it squarely from the rack, carrier, or backplane. Inspect the mating connector and surrounding wiring for bent contacts, oxidation, contamination, or evidence of thermal stress.

3. Installation & Configuration — reproduce the existing AC 800PEC setup
Install the replacement in the original position and reconnect each interface according to the approved cabinet documentation. Verify the control-power supply before energization. Restore the AC 800PEC application, controller parameters, communication settings, and excitation-system configuration from the latest validated backup. Do not assume another PPD117-series unit is interchangeable without checking the complete part number and hardware revision.

4. Power-On Self-Test (POST) — validate controller and excitation functions
Energize the controller according to the approved commissioning sequence. Observe all available run, status, warning, and fault indicators. Confirm that the control environment recognizes the replacement and that the application initializes without persistent diagnostics. Verify excitation feedback, reference signals, permissives, alarms, and protection interfaces before returning the generator to normal operation.

ABB PPD117A 3BHE030410R3011

Module 5: Quality Assurance & Testing SOP

Every PPD117A should receive documented hardware and functional testing before shipment.

• OEM Anti-Counterfeit Visual Inspection: Verify ABB markings, PPD117A designation, 3BHE030410R3011 part number, PCB construction, connector layout, labels, fasteners, and revision markings.
• Serial and Identity Traceability: Record serial number, hardware revision, visible manufacturing identifiers, and nameplate photographs.
• Mechanical Inspection: Check PCB edges, card guides, mounting points, connectors, retaining hardware, and enclosure condition.
• Power Verification: Apply the documented system supply under controlled laboratory conditions and monitor startup behavior.
• Power-On Self-Test (POST): Check all available RUN, status, warning, and fault LED states during initialization.
• Controller Recognition Test: Verify that the test environment identifies the controller correctly.
• Firmware Verification: Record the installed firmware revision and compare it with the customer’s compatibility requirements.
• Configuration Verification: Compare application files, controller parameters, communication settings, and excitation configuration with the approved reference.
• Communication Test: Verify every communication channel required by the specific AC 800PEC installation.
• Signal Simulation: Exercise representative excitation reference, feedback, permissive, alarm, and control signals.
• I/O Full-Range Simulation: Test applicable signal channels across their documented operating range where the test bench permits.
• Fault-Diagnostic Check: Introduce controlled test faults where permitted and confirm expected diagnostic behavior.
• Extended Run Test: Monitor the unit for intermittent faults, communication instability, abnormal heating, or unexpected diagnostic events.
• Final QC Record: Release the unit only after identification, inspection, test results, photographs, configuration records, and QC approval are complete.

Module 6: Maintenance & Reliability FAQ

1. Is the PPD117A 3BHE030410R3011 a direct drop-in replacement, or does it require a firmware flash?

Do not assume direct interchangeability from the PPD117A designation alone. Verify the complete PPD117A / 3BHE030410R3011 identification, hardware revision, firmware compatibility, cabinet configuration, and application version before installation. A firmware update should only be performed when the applicable system documentation requires it.

2. Is it safe to hot-swap this controller while the system is running?

Do not treat the PPD117A as universally hot-swappable. Unless the specific AC 800PEC system documentation explicitly authorizes energized removal and insertion, perform the replacement with the applicable system safely isolated.

3. Will replacing this controller cause my current excitation program to be lost?

The replacement should not be assumed to contain the plant’s existing application. Back up the complete AC 800PEC project, controller configuration, excitation parameters, communication settings, firmware information, and commissioning records before removing the failed unit. After installation, verify the restored configuration against the approved backup.

4. What should I verify after installing the replacement?

Check power integrity first. Then verify controller diagnostics, application execution, communications, excitation feedback, reference tracking, permissives, alarm status, and protection interfaces. A controller reaching RUN status does not by itself prove that the complete excitation loop is ready for service.

5. What are the warranty terms if the unit fails post-installation?
