- ABB PPD513 3BHE039724R1060 | Authentic Automation CPU
2. Unboxing & Physical Snapshot
- Model & Brand: ABB PPD513 (Part No. 3BHE039724R1060)
- Product Type: AC 800PEC high-performance controller module designed for fast industrial control applications, including power electronics, excitation systems, and advanced process control tasks.
- Approximate Physical Dimensions (W × H × D): Approximately 220 × 185 × 60 mm (8.7 × 7.3 × 2.4 in.) based on PPD513 series hardware references.
- Estimated Shipping Weight: Approximately 0.8-1.2 kg including ESD protection materials and transport packaging.
- What’s in the Box:
- ABB PPD513 controller module
- Integrated processor and FPGA control hardware
- Communication interface connectors (configuration dependent)
- Protective connector covers
- Anti-static (ESD) shielding bag
- Conductive foam insert
- Documentation package when supplied
3. Product Introduction
The ABB PPD513 is installed as the central processing unit within the AC 800PEC control architecture, where high-speed computation and deterministic control execution are required. The controller connects with associated I/O, communication interfaces, and engineering tools through the cabinet-level automation structure (which is critical for power conversion and electrical control applications where timing accuracy directly affects system behavior).
This controller is maintained as a controlled spare for demanding automation assets rather than ordinary PLC replacement inventory. The hardware combines processor resources, memory, and FPGA-assisted control functions, so verification must include application compatibility, firmware revision, communication configuration, and cabinet wiring documentation before replacement. Check the revision label before installation.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | PPD513 |
| Part Number | 3BHE039724R1060 |
| Product Family | ABB AC 800PEC |
| Product Type | High-Speed Controller Module |
| Processor | 750 MHz RISC processor |
| Floating Point Unit | 64-bit IEEE FPU |
| FPGA Function | Hardware-assisted real-time control processing |
| Program/Data Flash Memory | 16 MB |
| SDRAM Memory | 64 MB |
| Supply Voltage | 24 VDC nominal |
| Allowable Supply Range | Approximately 18-32 VDC |
| Communication Interfaces | Ethernet TCP/IP, RS-232/RS-422, fieldbus interfaces (configuration dependent) |
| Supported Protocols | MMS, Modbus TCP Slave, IEC 61850, ABB Fast Fiber Optic Link, DriveBus/DDCS (configuration dependent) |
| Mounting Method | Cabinet-mounted controller assembly |
| Cooling Method | Natural convection / passive cooling |
| Power Consumption | Application dependent |
| Heat Dissipation | Primarily from processor, FPGA, and interface circuitry |
| Operating Temperature | Industrial environment dependent |
| Storage Temperature | Extended industrial storage range depending on configuration |

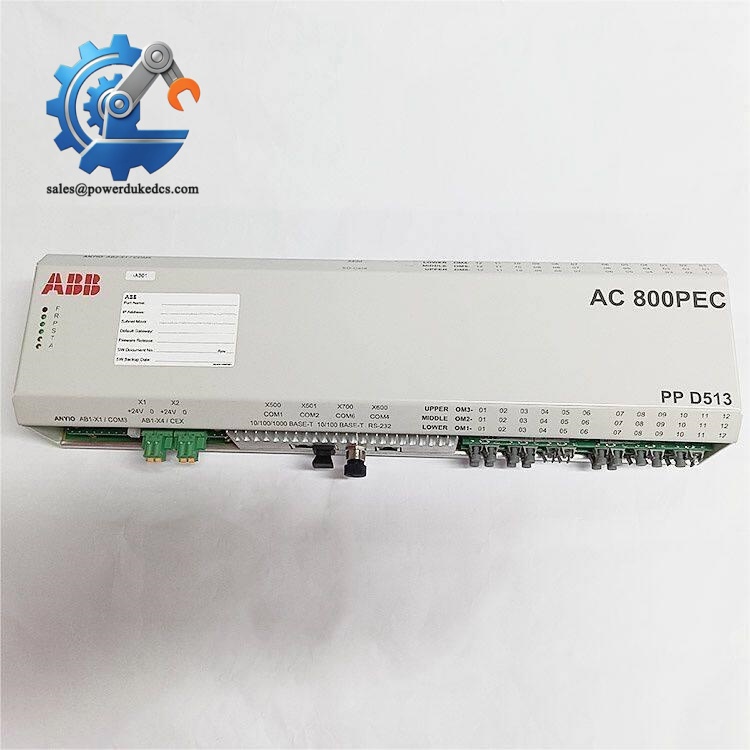

ABB PPD513 3BHE039724R1060
5. ? Global Compliance & Industry Certifications
Expected regulatory approvals and compliance considerations for the ABB PPD513 include:
- CE Mark: Applicable for compliant ABB AC 800PEC system installations meeting EMC and electrical safety requirements.
- UL/cUL Listed or Recognized: May apply when installed as part of an approved industrial control system.
- RoHS Compliance: Expected for applicable manufacturing revisions.
- ATEX / IECEx: Not generally a standalone certification for this controller module. Hazardous-area acceptance depends on the complete certified cabinet, enclosure, and associated equipment.
- Marine Approvals (DNV GL): Applicable only when integrated into certified marine automation or power conversion systems.
For high-speed controllers used in power electronics, certification depends heavily on the complete installation. A processor module alone does not define the safety approval of the finished system.
Verify specific lot certifications with OEM.
6. ? Long-Term Storage & Asset Preservation Guide
Keep the ABB PPD513 sealed inside its original anti-static ESD packaging during storage. The processor board, FPGA devices, and communication connectors are sensitive to static discharge and contamination.
Maintain warehouse humidity below 60% RH. Avoid condensation cycles, chemical storage areas, and locations with corrosive vapors because connector oxidation may create intermittent faults after installation.
Inspect stored units every 12-24 months. Examine the enclosure, retaining hardware, fiber/communication ports, PCB edges, and identification markings. For extended storage periods, perform a controlled power-up inspection before returning the module to service.
7. Physical Installation Prerequisites
- Install the PPD513 only in the designated ABB AC 800PEC cabinet location.
- Confirm the controller revision matches the approved application configuration.
- Verify all communication connectors before insertion.
- Maintain at least 50 mm clearance around ventilation areas to support natural convection cooling.
- Ensure cabinet grounding and protective earth connections are intact.
- Keep communication wiring separated from high-energy switching conductors.
- Inspect connector pins and optical interfaces before installation.
- Confirm firmware, FPGA configuration, and application software compatibility before commissioning.
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for an ABB PPD513 3BHE039724R1060 shipment?
A: Industrial controller modules are commonly reviewed under HS classifications associated with electrical control equipment, frequently within HS 8537. Final classification depends on customs interpretation, product function, and destination-country tariff rules.
Q: Does Country of Origin (COO) documentation matter for this controller?
A: Yes. COO records support customs clearance, warranty tracking, and critical spare inventory audits. Verify the origin marking on the controller label and shipping documents before warehouse acceptance.
Q: Should this ABB controller ship with insurance coverage?
A: Recommended. The PPD513 contains precision electronic assemblies, memory devices, and FPGA circuitry. Shock, moisture, or ESD exposure during transport can create failures that may not appear until system startup.
Q: Does the ABB PPD513 include the latest firmware pre-loaded?
A: The module contains factory-installed controller firmware, but the installed version depends on the hardware revision and previous service history. Confirm firmware compatibility with the AC 800PEC application project before commissioning.
