ABB PPD539A102 BHE039770R0102 | High-Speed PEC Controller

Description

1. ABB PPD539A102 BHE039770R0102 | High-Speed PEC Controller

Unboxing & Physical Snapshot

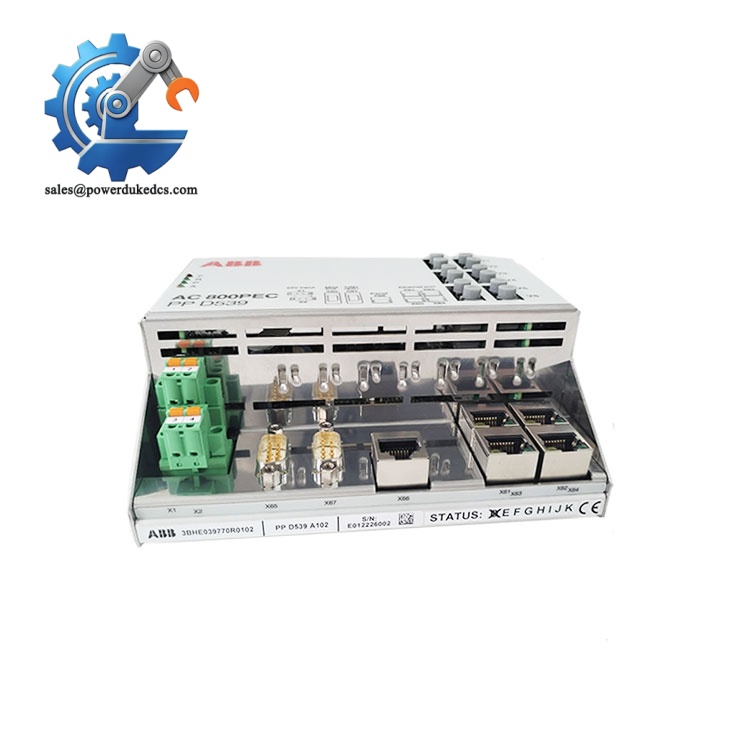

• Brand & Model: ABB PPD539A102
• Order Number: BHE039770R0102 / 3BHE039770R0102
• Product Family: ABB AC 800PEC High-Performance Controller System.
• Product Type: High-speed controller device for power electronics and industrial automation applications.
• Primary Function: Real-time control processor with CPU and FPGA architecture for fast control applications.
• Approximate Physical Dimensions: Approximately 147 × 145.5 × 72.9 mm (5.8 × 5.7 × 2.9 in).
• Estimated Shipping Weight: Approximately 0.85 kg (1.9 lb) including protective packaging.
• Mounting Style: Cabinet-mounted controller module within ABB AC800PEC assemblies.
• Housing Construction:
  • Industrial PCB enclosure
  • Front identification label
  • Internal processor board
  • Communication interfaces
  • Rack/module mounting hardware
• Processor Hardware:
  • Dual-core PowerPC processor
  • FPGA processing device
  • DDR3 memory subsystem
• Communication Interfaces:
  • Ethernet interfaces
  • RS-485 / serial communication
  • Optical communication links depending on configuration
• What’s in the Box:
  • ABB PPD539A102 controller module
  • ESD shielding bag
  • Protective foam packaging
  • Documentation when supplied

Product Introduction

The ABB PPD539A102 mounts inside the AC800PEC control architecture as a dedicated high-speed controller device. It handles real-time processing tasks where conventional PLC timing is insufficient, particularly in power conversion, excitation, and fast electrical control applications. The module combines processor resources with FPGA-based functions to reduce control latency (which is critical in systems reacting to rapid electrical changes).

This is a precision electronic asset. Inspect the communication ports, connector surfaces, enclosure condition, and mounting points before installation. Check the hardware revision carefully. A physically identical replacement may still require configuration verification before being placed into service.

Core Technical Specifications

ABB PPD539A102 BHE039770R0102

Global Compliance & Industry Certifications

Expected regulatory approvals and compliance considerations for the ABB PPD539A102 include:

• CE Mark — applicable for compliant ABB AC800PEC system installations meeting EMC and safety requirements.
• UL/cUL Recognition — may apply depending on the complete cabinet assembly and regional certification scope.
• RoHS Compliance — applicable for supported manufacturing revisions.
• IEC 61131-related industrial control requirements — relevant when evaluated within automation system architectures.
• ATEX/IECEx — requires evaluation of the complete hazardous-area installation; the controller module alone does not automatically qualify for explosive environments.
• Marine approvals (DNV GL, ABS, or LR) — applicable only when incorporated into certified marine control systems.

For high-speed electrical control systems, EMC certification is important because switching equipment can introduce electrical interference that may affect communication stability and processor operation.

Verify specific lot certifications with OEM.

Long-Term Storage & Asset Preservation Guide

• Keep the inside the original anti-static (ESD) shielding bag during warehouse storage. The processor board and FPGA components can be damaged by static discharge without leaving visible marks.
• Maintain storage humidity below 60% RH. Moisture exposure can increase oxidation risk on communication connectors and PCB contacts.
• Store in a temperature-controlled cabinet away from vibration, conductive dust, and corrosive gases.
• Inspect the Ethernet ports, optical interfaces, connector pins, and enclosure condition during periodic spare audits.
• Record firmware revision, hardware revision, serial number, and storage inspection history for traceability.

Physical Installation Prerequisites

• Install the only within the approved ABB AC800PEC hardware architecture.
• Confirm the redundant 24 VDC supply wiring before energizing.
• Inspect all communication connectors before installation.
• Leave at least 50 mm clearance above and below the cabinet assembly where natural convection cooling is required.
• Ensure protective earth grounding of the cabinet structure.
• Avoid routing communication cables alongside high-current switching conductors.
• Verify optical communication interfaces are clean and protected from contamination.
• Follow ABB maintenance procedures before removing or inserting the module.

Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for the ABB ?

A: Industrial controller modules are commonly evaluated under electrical control equipment classifications such as HS 8537. Final classification depends on the importing country’s customs requirements and the declared technical function.

Q: Why does Country of Origin matter for this ABB controller?

A: COO information supports customs declarations, supplier qualification, warranty tracking, and regulated facility documentation. Retain the ABB identification label, serial record, and original shipping documents.

Q: Is shipping insurance recommended for the ?

A: Yes. The module contains processor electronics, FPGA components, memory devices, and communication interfaces. Shock, moisture, or ESD exposure during transportation may create failures that appear only during commissioning.

Q: Does the include the latest firmware pre-loaded?

A: Firmware availability depends on the installed AC800PEC project configuration and hardware revision. The module may require firmware verification and application loading before returning to operation. Confirm compatibility with the existing control system before installation.
