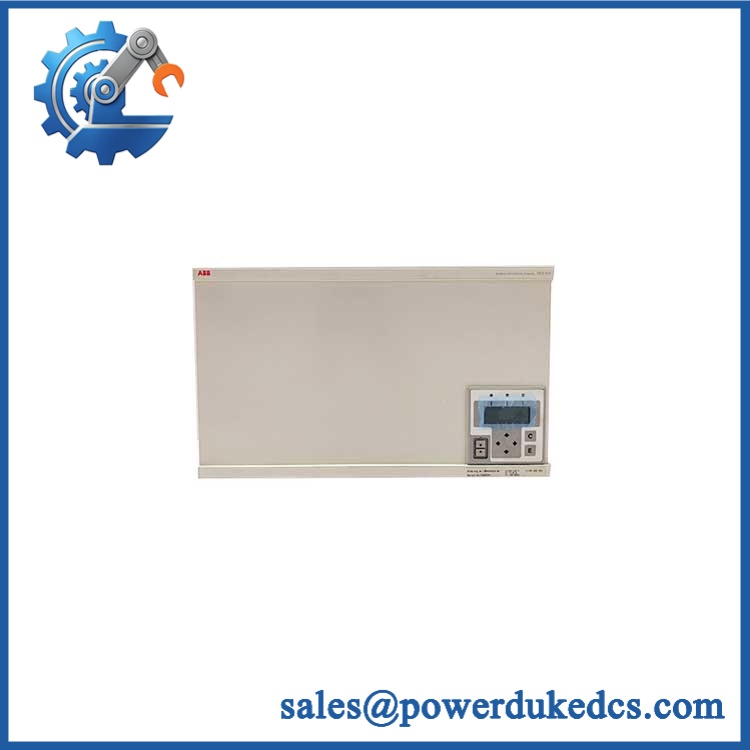

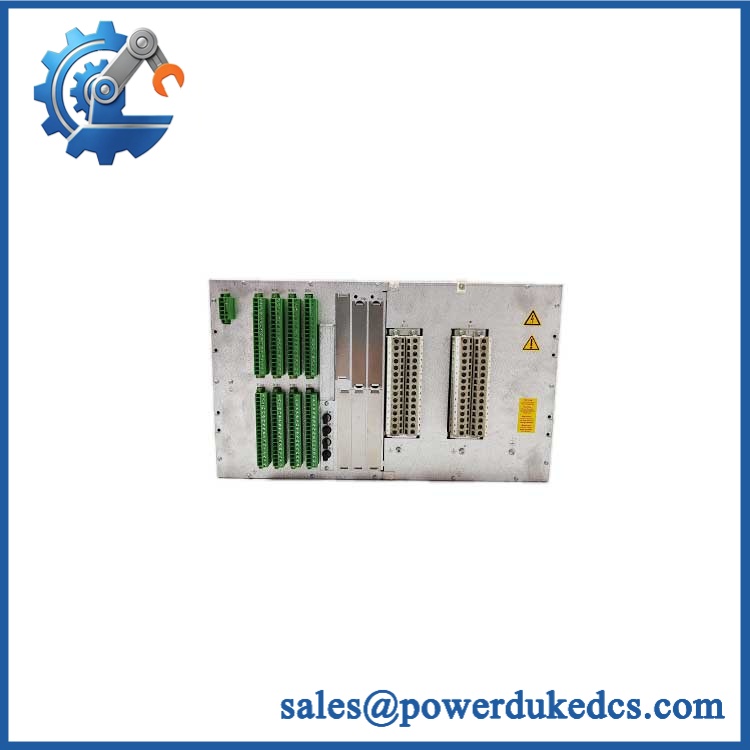

ABB RED521 1MRK002003 | Differential and Backup Protection Device for HV Lines

Description

• Model: RED521
• Part Number: 1MRK002003
• Brand: ABB
• Series: ABB 500 Series Protection and Control
• Part Type: Numerical Protection Relay / Differential Protection Terminal
• Core Function: Provides fast, selective, phase-segregated differential protection for transmission lines and other high-voltage power-system applications.
• Key Specs: Phase-segregated current differential protection, backup distance protection, automatic reclosing, synchronization/synchronism check, and multi-terminal line-protection capability. The documented 1MRK002003-BA configuration supports six stabilized three-phase current inputs.
• Typical Application: Overhead lines, cable feeders, multi-terminal lines, generator-transformer connections, and substation protection schemes.

Product Introduction

A transmission-line fault cannot wait for a slow diagnostic cycle. When a fault occurs inside the protected zone, the protection relay has to distinguish it from a load condition or an external fault and issue the appropriate trip command.

The ABB RED521 1MRK002003 is a numerical differential-protection terminal from ABB’s 500 Series protection platform. The RED521 is designed for phase-segregated line differential protection, with applications covering overhead lines and cables across a wide range of network configurations.

Its protection architecture can provide single-, two-, or three-phase tripping and automatic reclosing, while synchronization and synchronism-check functions support switching and breaker-control applications. The relay can also provide backup distance protection when the communication channel required for differential protection is unavailable.

For procurement, the suffix is important. The commonly documented 1MRK002003-BA version has six three-phase CT inputs and is intended for multi-breaker or multi-terminal arrangements.

Core Technical Specifications

ABB RED521 1MRK002003

The six three-phase CT inputs and one differential zone are specifically documented for the RED521 1MRK002003-BA configuration; other suffixes should be verified separately rather than assumed identical.

Application Scenarios & Pain Points

On a multi-terminal transmission line, RED521 can use phase-segregated differential protection to identify faults within the protected zone. The documented architecture can support up to five line terminals in certain arrangements, making CT configuration and communication topology critical during engineering.

For cable feeders connected to generator-block transformers, the relay can provide selective protection while coordinating with the wider substation protection scheme. This application is specifically described for the .

At substations with multiple circuit breakers, the six stabilized three-phase current inputs available on the -BA configuration allow the relay to accommodate more complex breaker arrangements than a basic single-terminal scheme.

When the protection communication channel is unavailable, the backup distance-protection function can provide selective backup protection. This is important because a communication failure should not automatically leave the protected line without a secondary protection mechanism.

In outdoor or high-temperature control rooms exceeding 50°C, inspect the relay ventilation, terminal connections, auxiliary supply, and surrounding cabinet temperature. Aging electronic protection equipment is particularly sensitive to repeated thermal stress.

Common Error Codes & Diagnostic Symptoms

Symptom/Code: Differential protection communication failure
→ Diagnosis: Check the protection communication channel, communication interfaces, synchronization status, fiber/communication equipment, and terminal configuration. A communication problem can prevent normal line-differential operation without necessarily indicating an internal relay failure.
→ Action: Restore and verify the communication path first; replace the only after the relay itself is confirmed defective.

Symptom/Code: Differential current / restraint abnormality
→ Diagnosis: Check CT polarity, CT ratios, phase assignment, secondary wiring, and external-fault conditions. Incorrect CT connections can produce apparent differential current even when the protected equipment is healthy.
→ Action: Verify the complete CT circuit and relay configuration before replacing the terminal.

Symptom/Code: Relay fails to issue expected trip command
→ Diagnosis: Check the active protection function, binary input/output configuration, trip logic, blocking conditions, breaker status, and auxiliary supply.
→ Action: Review event records and protection logic, then perform controlled I/O testing. Replace the if the hardware output stage is confirmed faulty.

ABB RED521 1MRK002003

Cross-Reference & Lifecycle Migration

Product Identification

The requested identification is:

• ABB Model:
• Base Part Number: 1MRK002003
• Common Documented Variant: 1MRK002003-BA
• Product Type: Differential Protection Terminal
• Protection Platform: ABB 500 Series
• Primary Function: Phase-segregated current differential protection

The -BA suffix should not be omitted when matching an installed relay. Available technical references identify the -BA configuration with six three-phase CT inputs, while the base designation alone does not establish every hardware option.

Compatibility Check

Before ordering a replacement, verify:

• Complete ordering number and suffix
• Hardware revision
• CT input configuration
• CT ratios and polarity
• Line-terminal arrangement
• Protection communication interface
• Trip/output configuration
• Automatic-reclosing configuration
• Synchronization settings
• Existing protection parameters
• Firmware/software compatibility

A relay with the same model designation should not automatically be treated as a direct replacement if its hardware configuration differs.

Lifecycle Strategy

is part of a mature ABB protection platform. For substations that continue to operate this relay, maintaining a tested spare can reduce exposure to long lead times and configuration problems during an unplanned outage.

For buffer stock, record the complete ordering code, hardware revision, firmware, CT configuration, communication arrangement, protection settings, and tested configuration file.

Firmware flashing should not be assumed to be required for every replacement. If a replacement relay has a different software or hardware configuration, the correct application firmware and protection settings must be verified before commissioning.

Field Engineer’s Tech Notes

Tech Note 1 — Never skip the CT polarity check.
A differential relay can report an apparent internal fault when the real problem is incorrect CT polarity, phase assignment, or ratio configuration. Before condemning the , verify the complete CT secondary circuit against the protection drawings.

Tech Note 2 — Preserve the working protection configuration.
Before replacing an operational relay, save the existing protection settings and document the communication configuration. A physically identical replacement with different parameters can produce completely different protection behavior (especially in multi-terminal schemes).

Strict QA & Testing SOP

1. Part Number Verification
   Confirm 1MRK002003 and the complete suffix against the purchase order.
2. Nameplate Inspection
   Record the ABB ordering code, serial number, hardware revision, and manufacturing information.
3. Visual Inspection
   Examine the enclosure, front panel, PCB assembly, terminals, connectors, and communication interfaces.
4. Mechanical Inspection
   Check mounting points, terminal blocks, connector locking mechanisms, and panel condition.
5. Auxiliary Supply Test
   Apply the specified auxiliary power through a controlled protection-relay test setup.
6. Self-Diagnostic Check
   Verify normal startup behavior and internal diagnostic indications.
7. Binary I/O Test
   Exercise applicable trip, alarm, breaker-status, blocking, and control inputs/outputs.
8. CT Input Simulation
   Use a calibrated relay test set to inject representative three-phase currents into the applicable CT inputs.
9. Differential Protection Test
   Verify pickup and operating behavior under representative internal-fault conditions.
10. Restraint / External-Fault Test
    Confirm stable behavior under representative external-fault and through-current conditions.
11. Distance Protection Test
    Where configured, verify the applicable backup distance-protection zones and logic.
12. Reclosing Test
    Verify automatic-reclosing logic under a controlled test sequence where configured.
13. Synchronization Test
    Check synchronization and synchronism-check functions where installed.
14. Communication Test
    Verify the protection communication interface and terminal-to-terminal data exchange.
15. Event Recording Test
    Confirm event/fault recording and diagnostic information can be retrieved.
16. Extended Operation Test
    Monitor auxiliary supply, communications, I/O, and diagnostic status during extended operation.
17. Final QA Documentation
    Record test-set configuration, injected values, trip times, relay settings, firmware, and test date.
18. ESD-Safe Packaging
    Package the protection terminal using anti-static material and adequate impact protection.

Test videos can be provided when available, together with actual relay photographs, nameplate images, and test records.

Buyer’s FAQ

Q1. What is ABB used for?

is a numerical differential-protection terminal designed primarily for phase-segregated protection of transmission lines and cables. It can also provide backup distance protection and related control functions.

Q2. Is 1MRK002003 the complete ordering number?

Not necessarily. The documented 1MRK002003-BA variant is a specific configuration. For procurement, provide the complete number printed on the existing relay, including any suffix.

Q3. How many CT inputs does the -BA version have?

The documented 1MRK002003-BA configuration has six three-phase CT inputs, equivalent to 18 individual current inputs.

Q4. Can be hot-swapped?

Do not assume hot-swapping capability. Protection relays are part of the electrical protection chain, so the associated circuit must be placed into the appropriate maintenance and safety condition before removing the device.

Q5. What should I check before replacing ?

Check the complete ordering code, hardware revision, CT configuration, protection settings, communication arrangement, trip logic, and firmware. Save the existing configuration before removing a working relay.

Q6. What should I request from the supplier?

Specify ABB 1MRK002003 and provide the complete suffix from the existing nameplate. Request actual nameplate photographs, hardware-revision information, functional test records, configuration/firmware information, warranty terms, and return conditions.
