ABB REF543KM127BAAA | REF 543 Feeder Protection Terminal

• Brand: ABB
• Full Model Number: REF543KM127BAAA
• Lifecycle Status: Legacy; ABB REF 543 not active since 2022
• Core Function in System: Feeder protection, control, measurement, supervision, and automation
• Top 3 Hardcore Specs: REF 543 platform; 25 binary inputs; 18 output relays
• Communication: SPA bus; LON bus; IEC 60870-5-103; DNP 3.0; Modbus; IEC 61850 via SPA-ZC 400
• Architecture: Modular feeder protection terminal with CPU, power supply, digital I/O, and communication interfaces
• Condition & Lead Time: New old stock or tested replacement; emergency dispatch subject to physical inventory confirmation

ABB describes the REF 543 as a feeder terminal for protection, control, measurement, supervision, and automation in medium-voltage networks. ABB’s official legacy page states that the product has not been active since 2022 and lists 25 binary inputs and 18 output relays, along with multiple communication options.

Module 3: Technical Intro & Downtime Impact

A failed REF543KM127BAAA can remove an entire feeder’s protection and control layer from service rather than taking down a single measurement channel. Loss of overcurrent, earth-fault, breaker-control, measurement, or interlocking functions can force a feeder outage until the protection terminal is restored. ABB identifies REF 543 as a feeder protection terminal supporting protection, control, measurement, condition monitoring, and programmable logic functions in medium-voltage networks.

For MTTR planning, this configuration is important because the exact order code determines the hardware build. ABB’s technical reference identifies REF543-_127AAA as a specific REF 543 hardware version and documents the platform’s modular CPU, power-supply, digital-I/O, analog-interface, and communication architecture. The REF 543 family supports 25 binary inputs and 18 output relays on the feeder-terminal platform, while communication can use SPA, LON, and higher-level protocols through the appropriate interfaces. (For a legacy relay, firmware revision and installed option cards should be treated as part of the part-number verification, not as afterthoughts.)

Module 4: Dynamic Emergency Swap & Configuration Guide

1. Pre-Swap Prep — Freeze the Protection Configuration

Place the feeder in the approved maintenance condition and obtain the switching authority required by the site’s protection procedure. Record the complete front-panel identification, including REF543KM127BAAA, software number, hardware revision, and any installed communication or analog-interface options. Back up the relay configuration and event records before removal. Have the terminal diagram, insulated tools, ESD protection, a calibrated multimeter, and the replacement unit ready.

ABB notes that REF 54_ order-number revisions can correspond to different software releases, so the revision information printed on the front-panel marking strip matters during replacement.

2. Removal — Disconnect the Terminal Wiring and Communications

After the feeder and relay are made electrically safe, label and photograph every rear-panel connection before disconnection. The REF 543 uses rear terminal blocks for external circuits; communication interfaces are also assigned to dedicated rear connectors such as X3.2 and X3.3 depending on the communication architecture. Remove the terminal connections and communication cables carefully, release the terminal’s mounting hardware, and withdraw the complete relay without stressing the rear connectors.

3. Installation & Configuration — Match the Hardware Build

Install the replacement REF 543 into the same enclosure position and reconnect the wiring against the original terminal diagram rather than by wire color. The exact K127BAAA configuration should be matched, including the installed analog interface, digital I/O arrangement, power-supply version, communication interface, and software revision. ABB’s hardware-version table shows that REF 543 configurations differ in their installed modules and sensor-channel options. Do not assume two REF 543 units with similar front markings are electrically identical.

4. Power-On Self-Test (POST) — Prove Protection Function Before Service

Restore auxiliary power under the approved commissioning procedure and watch the relay’s self-supervision status. ABB documents a self-supervision system that monitors runtime faults and provides fault information through the HMI and communication system; on a detected fault, the green Ready indicator begins flashing and fault information is displayed. Confirm healthy self-supervision, correct measured quantities, binary-input states, output-relay control, breaker status, and configured communication before returning the feeder to normal operation. A powered display is not sufficient acceptance evidence.

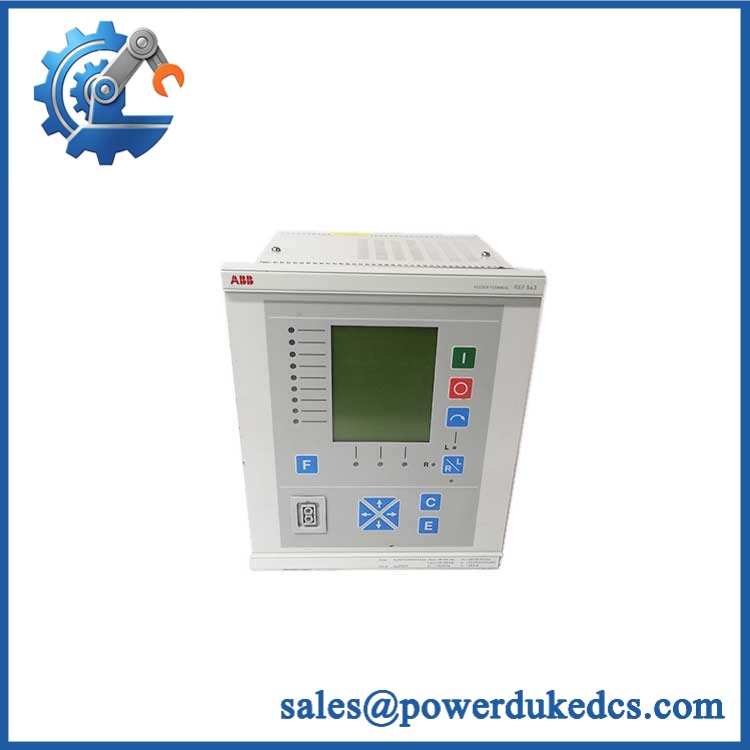

ABB REF543KM127BAAA

Module 5: Quality Assurance & Testing SOP

The REF543KM127BAAA should undergo a protection-relay acceptance test, not a simple bench power-up.

• Identity verification: Record REF 543 order number, complete REF543KM127BAAA code, hardware revision, software number, serial number, and installed option cards.
• OEM anti-counterfeit visual inspection: Examine front-panel labels, PCB markings, terminal construction, connectors, fasteners, and manufacturing identifiers against known ABB references.
• Mechanical inspection: Check enclosure, terminal blocks, connector pins, card guides, mounting hardware, ventilation paths, and signs of overheating or corrosion.
• Power-on self-test (POST): Energize the terminal under a controlled test setup and verify startup diagnostics, HMI operation, Ready indication, and absence of internal-rejection or self-supervision faults.
• Binary I/O simulation: Exercise the installed binary inputs through the complete permitted state range and confirm correct software indication.
• Output-relay testing: Command each required output relay under controlled conditions and verify contact operation, pickup/dropout behavior, and configured interlocks.
• Protection-function simulation: Inject approved current and voltage test quantities and verify the configured protection elements, pickup values, timing, and trip logic.
• Measurement verification: Compare displayed current, voltage, frequency, power, and related calculated values against calibrated secondary-injection equipment where applicable.
• Communication verification: Test the installed communication path using the applicable SPA, LON, IEC 60870-5-103, DNP 3.0, Modbus, or SPA-ZC 400-based IEC 61850 interface. ABB lists these communication capabilities for REF 543.
• Disturbance/event verification: Confirm event recording, fault indication, and diagnostic reporting operate correctly.
• Extended runtime test: Monitor the terminal under sustained operation for intermittent alarms, communication dropouts, abnormal heating, or self-supervision changes.
• Final QC record: Retain identification photographs, configuration backup, injection-test results, communication logs, test date, technician sign-off, and final pass/fail status.

Module 6: Maintenance & Reliability FAQ

1. Is ABB REF543KM127BAAA a direct drop-in replacement, or does it require a firmware flash?

Do not assume a blind drop-in replacement. ABB’s REF 543 documentation shows multiple hardware and software releases, and the order-number revision identifies the product release. Match the complete hardware code, installed option cards, software number, protection configuration, and communication setup before energizing the replacement. A firmware update should only be performed when the applicable ABB documentation requires it.

2. Is it safe to hot-swap the REF543 while the feeder is running?

Treat the answer as no unless the exact site procedure explicitly authorizes it. REF 543 is a feeder protection terminal connected to CT/VT circuits, trip circuits, binary I/O, and communication wiring. Live removal can compromise protection availability and can also introduce hazards around instrument-transformer circuits. Follow the approved feeder isolation and protection-maintenance procedure.

3. Will replacing this feeder terminal cause my current protection program to be lost?

The replacement terminal itself does not mean the existing configuration can be ignored. Back up the relay settings, programmable logic, communication parameters, protection thresholds, input/output assignments, and event configuration before removal. For a legacy REF 543 installation, retaining the exact software number is especially important because ABB documents different product releases across the REF 54_ family.

4. What should I verify after installing ?

At minimum, verify self-supervision, measured quantities, binary-input states, output-relay operation, breaker-control logic, protection pickup/trip behavior, and the required communication links. ABB specifically documents SPA/LON communication and additional protocols through the relevant interfaces and adapters. The replacement is not ready for service simply because the front display starts normally.

5. What are the warranty terms if the unit fails post-installation?

Warranty should follow the condition and commercial terms of the supplied unit. For a legacy REF 543, keep the serial number, pre-shipment test report, configuration backup, installation date, commissioning results, and post-installation fault records. This documentation is particularly useful when distinguishing a genuine relay failure from CT/VT wiring errors, trip-circuit issues, configuration mismatches, or problems elsewhere in the feeder protection scheme.
