Description
- Model: REF545KC133
- Brand: ABB
- Series: REF 500 Series
- Part Type: Feeder Protection and Control Relay
- Core Function: Provides protection, control, and monitoring for medium-voltage distribution feeders and associated switchgear.
- Key Specs: Feeder protection architecture, configurable protection functions, measurement and control capabilities, and application support for different medium-voltage network arrangements.
Product Introduction
A feeder fault in a medium-voltage switchgear lineup can affect an entire distribution section when the protection system does not detect and isolate the fault correctly. The ABB REF545KC133 is identified in industrial automation references as a feeder protection relay intended for medium-voltage power-network applications.
The relay is associated with ABB’s REF 500 protection family and is described for protection, control, and monitoring duties. Application references include different switchgear arrangements, isolated-neutral networks, resonant-earthed systems, and shunt capacitor-bank protection.
For replacement procurement, the complete REF545KC133 designation should be matched against the installed relay (especially the hardware configuration, I/O arrangement, and protection settings).
The available product reference specifically describes the REF545KC133 as a feeder protection relay for medium-voltage networks and lists applications including single-busbar and duplex switchgear, isolated-neutral networks, resonant-earthed systems, and shunt capacitor-bank protection.
Technical caution: Detailed CT/VT ratings, exact I/O counts, communication protocols, protection elements, and auxiliary-supply values should be confirmed from the relay’s complete order code or original ABB documentation rather than inferred from the REF545KC133 model designation alone.
Application Scenarios & Pain Points
For medium-voltage distribution feeders, the REF545KC133 can provide the protection and control functions required to detect abnormal electrical conditions and coordinate feeder isolation.
Within switchgear using isolated or resonant-earthed neutral arrangements, protection behavior depends heavily on the network grounding method. The relay configuration therefore needs to match the actual system topology rather than simply copying settings from another feeder.
For shunt capacitor-bank applications, protection coordination becomes particularly important because switching events and abnormal conditions can produce transient electrical behavior that must be distinguished from genuine feeder faults.
In substations operating with 50°C+ cabinet temperatures, inspect ventilation, terminal connections, and relay thermal conditions during maintenance. Excessive heat can accelerate aging of electronic protection equipment.
Common Error Codes & Diagnostic Symptoms
Symptom: Feeder protection becomes unavailable
→ Diagnosis: Loss of auxiliary power, internal relay malfunction, measurement-input problems, or configuration issues may prevent normal protection operation.
→ Action: Check relay diagnostics, power supply, CT/VT circuits, and configuration; replace the if hardware failure is confirmed.
Symptom: Relay fails to issue a feeder trip command
→ Diagnosis: The fault may involve the relay output circuit, trip wiring, interposing relay, breaker mechanism, or internal relay hardware.
→ Action: Test the complete trip circuit before replacing the relay.
Symptom: Repeated unexpected protection alarms
→ Diagnosis: Incorrect settings, unstable measurement signals, CT/VT problems, grounding-system characteristics, or internal relay faults can produce abnormal protection indications.
→ Action: Compare active settings with the approved protection file and verify the measurement circuits.
Note: No reliable numeric ABB fault-code list was established specifically for . Use the diagnostic information associated with the actual relay hardware and firmware configuration.

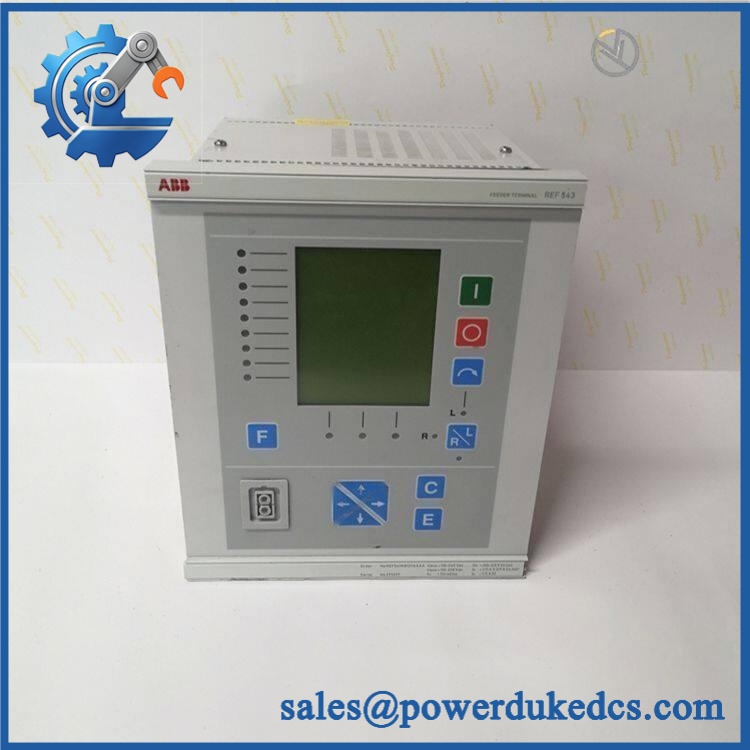

ABB REF545KC133
Cross-Reference & Lifecycle Migration
- Primary model:
- Product family: ABB REF 500 Series
- Protection role: Medium-voltage feeder protection, control, and monitoring.
- Application variants: The reference is associated with different network and switchgear configurations, so the application must be verified before substitution.
- Direct replacement: No universal drop-in replacement should be assumed from the designation alone.
- Hardware configuration: Confirm the installed relay’s complete order code, I/O arrangement, communication options, and measurement configuration.
- Settings migration: When migrating to another ABB protection platform, review CT/VT ratios, protection curves, pickup values, time delays, trip logic, binary I/O mapping, and communication settings individually.
- Firmware: Verify firmware and configuration compatibility before restoring an existing protection setting file.
- Lifecycle: Treat the as a legacy protection-system spare for inventory planning.
- Buffer-stock strategy: For critical MV feeders, keeping one tested spare relay can reduce restoration time after an unexpected protection-system failure.
Field Engineer’s Tech Notes
Warning 1 — Verify the grounding arrangement first.
Do not copy protection settings from a feeder with a different neutral-grounding method. Isolated-neutral and resonant-earthed systems can require materially different protection behavior.
Warning 2 — Never assume a no-trip condition proves relay failure.
If the relay detects the fault but the breaker remains closed, check the DC trip supply, output contacts, interposing relays, breaker wiring, and breaker mechanism before condemning the .
Strict QA & Testing SOP
- Part identification — Verify against the relay nameplate and purchase specification.
- Hardware inspection — Examine the enclosure, front panel, terminals, connectors, and PCB condition.
- Nameplate verification — Record serial number, hardware revision, and complete order-code information.
- Visual damage check — Inspect for corrosion, contamination, cracked components, and heat damage.
- Auxiliary-power test — Apply the specified supply using a controlled test source.
- Self-diagnostic test — Confirm normal startup and internal diagnostic status.
- Measurement-input test — Inject controlled voltage/current signals appropriate to the configured relay.
- Protection-function test — Verify the applicable feeder protection elements using a calibrated relay test set.
- Binary I/O test — Check configured inputs, outputs, alarms, and trip contacts.
- Trip-circuit verification — Confirm correct output operation without connecting directly to energized breaker circuits during bench testing.
- Communication test — Verify applicable communication interfaces and status reporting.
- Extended operation — Monitor for resets, abnormal alarms, unstable measurements, and excessive temperature.
- Final QA — Record test results, photographs, serial number, and configuration information.
- ESD-safe packaging — Package the relay using antistatic protection and suitable mechanical cushioning.
Test videos are available upon request for units that undergo functional testing.
Buyer’s FAQ
Q: What is ABB used for?
A: It is a feeder protection relay intended for medium-voltage power-network protection, control, and monitoring.
Q: Is suitable for every medium-voltage feeder?
A: No. The actual application depends on the network grounding method, switchgear arrangement, measurement configuration, protection settings, and required I/O and communication functions.
Q: Can I replace it with another ABB REF-series relay?
A: Not automatically. Similar REF-family relays can have different hardware configurations and protection functions. Verify the complete application and order code before substitution.
Q: Can the relay be hot-swapped?
A: Do not assume energized replacement is permitted. CT circuits, VT circuits, auxiliary DC, and trip circuits require controlled isolation and an approved protection-maintenance procedure before relay replacement.
Q: How do I verify a replacement before purchasing?
A: Request clear photographs of the nameplate, complete hardware/order-code information, serial number, condition, functional-test results, configuration status, warranty, and packaging details.
