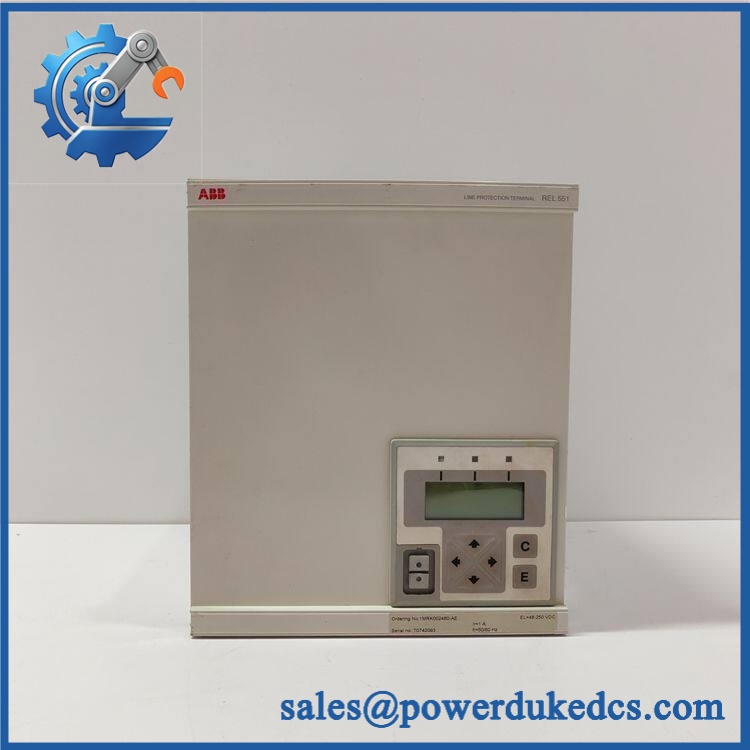

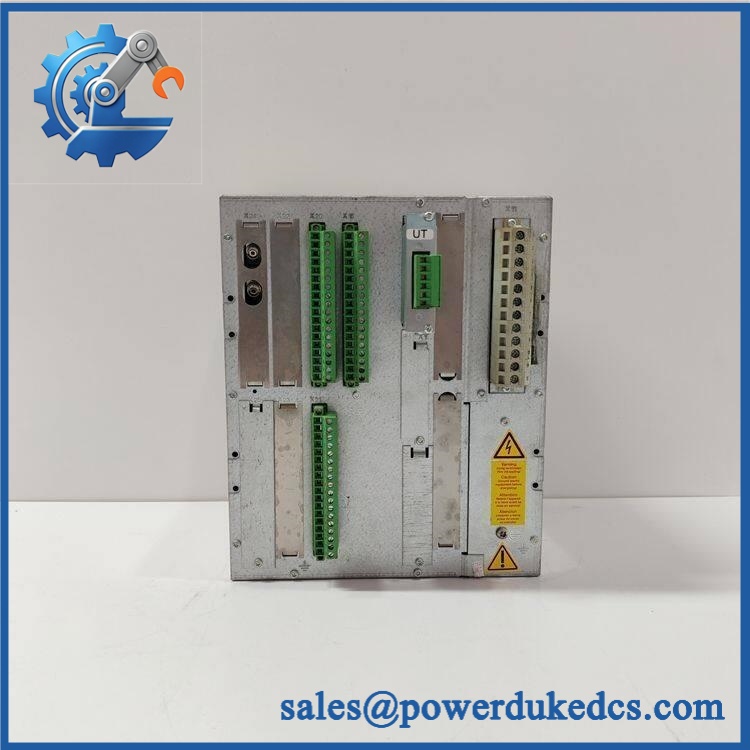

ABB REL551 1MRK002480 | Original ABB Line Protection Spare

• Model: REL551
• ABB Part Number: 1MRK002480
• Brand: ABB
• Series: REL 500 Series
• Part Type: Line protection / distance protection relay
• Core Function: Protects transmission and sub-transmission lines by detecting electrical faults and initiating appropriate circuit-breaker actions.
• Key Specs: Distance-protection architecture, phase and ground fault protection, programmable protection functions, and utility-grade relay control capabilities.

Product Introduction

A transmission-line fault can escalate rapidly when the protection relay fails to identify the fault location and issue a trip command. The ABB REL551 1MRK002480 is a member of ABB’s REL 500 protection-relay family, designed for protection and control applications on electrical transmission and distribution networks.

The REL551 is associated with distance protection, where measured voltage and current are evaluated to determine the apparent impedance between the relay location and a fault. This approach allows the protection system to distinguish faults within configured protection zones from disturbances outside the protected line.

For legacy substations, an exact relay replacement matters because protection settings, CT/VT ratios, trip logic, communication interfaces, and firmware configuration all need to remain compatible (a physically similar relay is not automatically an approved substitute).

Core Technical Specifications

ABB REL551 1MRK002480

Specification note: The 1MRK002480 identifier does not by itself define every hardware variant, I/O arrangement, communication option, or rated input configuration. Those details should be checked against the relay nameplate, order code, and the protection-system documentation before procurement.

Application Scenarios & Pain Points

On a transmission line, a distance relay provides the protection system with an electrical estimate of fault location. The REL551 is therefore suited to substations where rapid fault detection and selective tripping are required.

For overhead-line protection, phase-to-phase and phase-to-ground faults can produce different impedance characteristics. The protection settings must be coordinated with the line parameters, CT/VT characteristics, and neighboring protection zones.

During a substation modernization project, an existing may need to remain in service while newer protection equipment is introduced elsewhere. Keeping a tested spare can avoid an extended outage when a legacy relay fails.

At substations exposed to ambient temperatures above 50°C, cabinet ventilation and relay thermal conditions should be checked. Excessive heat can contribute to electronic aging and intermittent operation.

Common Error Codes & Diagnostic Symptoms

Symptom: Protection relay fails to issue a trip command
→ Diagnosis: The problem may involve relay hardware, auxiliary power, binary output circuitry, trip logic, or external wiring.
→ Action: Review relay self-diagnostics and trip circuit integrity; replace the if hardware failure is confirmed.

Symptom: Distance protection becomes unavailable
→ Diagnosis: Loss of measurement inputs, internal relay malfunction, configuration corruption, or auxiliary power failure may disable the protection function.
→ Action: Verify CT/VT inputs, relay status, settings, and power supply before replacing the relay.

Symptom: Unexpected protection operation or repeated alarms
→ Diagnosis: Incorrect settings, unstable measurement signals, CT/VT problems, communication issues, or internal relay faults can produce abnormal protection behavior.
→ Action: Compare the active settings with the approved protection file and investigate the measurement chain before replacement.

Note: Exact numerical diagnostic codes depend on the hardware/firmware configuration. Do not assign a generic fault number without the applicable ABB relay manual.

ABB 1MRK002480

Cross-Reference & Lifecycle Migration

• Primary model:
• ABB identification: 1MRK002480
• Product family: ABB REL 500 Series.
• Protection role: Line and distance protection.
• Direct replacement: No universal drop-in replacement should be assumed from the designation alone.
• Related ABB relays: Other REL 500-family relays may provide similar protection functions but can have different hardware, I/O, communication, and setting structures.
• Configuration migration: If moving to a newer ABB protection relay, protection zones, impedance settings, logic equations, binary I/O mapping, communication parameters, and disturbance-recording configuration should be reviewed individually.
• Firmware: Firmware compatibility should be checked before transferring or restoring an existing protection configuration.
• Lifecycle: Treat 1MRK002480 as a legacy protection-system spare for inventory planning.
• Buffer-stock strategy: For critical transmission-line protection, maintaining a tested replacement relay is preferable to waiting for a failure because commissioning and protection-setting verification can take significant time.

Field Engineer’s Tech Notes

Warning 1 — Do not restore settings blindly.
A replacement protection relay must match the approved protection configuration. Verify CT ratios, VT ratios, line impedance, zone reaches, time delays, trip logic, and communication settings before placing it into service.

Warning 2 — Check the trip circuit separately.
If the relay detects a fault but the breaker does not trip, the relay itself may be healthy. Check binary output contacts, interposing relays, DC trip supply, breaker wiring, and supervision circuits before condemning the .

Strict QA & Testing SOP

1. Part identification — Verify and 1MRK002480 against the relay nameplate.
2. Hardware inspection — Examine the housing, front panel, terminals, connectors, and PCB condition.
3. Nameplate verification — Record serial number, hardware revision, and complete order-code information.
4. Visual damage check — Inspect for corrosion, contamination, cracked components, and heat damage.
5. Auxiliary-power test — Apply the specified relay supply using a controlled test source.
6. Self-diagnostic test — Verify normal startup and internal diagnostic status.
7. Measurement-input test — Inject controlled voltage/current signals appropriate to the relay configuration.
8. Protection-function test — Verify applicable distance, phase-fault, and ground-fault protection elements.
9. Trip-output test — Confirm binary output operation using a relay test set or suitable controlled test circuit.
10. Logic verification — Check configured trip, blocking, alarm, and interlock logic.
11. Communication test — Verify applicable communication ports and protection-system interfaces.
12. Extended operation — Monitor relay stability, alarms, resets, and abnormal heating.
13. Final QA — Record test results, photographs, serial number, and configuration information.
14. ESD-safe packaging — Package the relay in antistatic material with mechanical protection.

Test videos are available upon request for units that undergo functional testing.

Buyer’s FAQ

Q: What is ABB 1MRK002480 used for?
A: It is a line protection / distance protection relay associated with ABB’s REL 500 protection-relay family. It is intended for electrical network protection where fault detection and selective circuit-breaker tripping are required.

Q: Can I replace an with another ABB protection relay?
A: Not without an engineering review. Protection relays with similar functions can have different measurement inputs, I/O, communication interfaces, algorithms, and setting structures.

Q: Can the be hot-swapped?
A: Do not assume so. A protection relay is connected to CT/VT circuits and trip circuits that can remain hazardous or operational during maintenance. Follow the approved substation isolation and commissioning procedure before replacement.

Q: How do I verify a replacement relay before purchase?
A: Request clear photographs of the / 1MRK002480 nameplate, complete order code, hardware revision, serial number, condition, functional-test report, configuration information, and warranty.
