ABB REX521BBHGLB01 | ABB REX 521 Series Protection and Control Relay

• Model: ABB REX521BBHGLB01
• Brand: ABB
• Series: REX 521
• Part Type: Protection and Control Relay / Protection IED
• Core Function: Provides programmable protection, measurement, control, and supervision for medium-voltage electrical equipment.
• Key Specs: REX 521 platform, multifunction protection, measurement and control functions, configurable binary I/O, disturbance/event recording, and substation communication capabilities.
• Procurement Note: BBHGLB01 is part of the complete ordering/configuration identification and should be retained when sourcing a replacement.

Product Introduction

A protection relay failure can leave a feeder or other medium-voltage asset without its intended protection even though the primary equipment remains electrically intact. For this type of maintenance job, identifying the complete relay configuration is just as important as identifying the product family.

ABB REX521BBHGLB01 belongs to ABB’s REX 521 multifunction protection and control relay family. The REX 521 platform was designed for protection, measurement, control, and supervision of medium-voltage distribution equipment.

This is a protection IED, not a general-purpose PLC. Its actual protection functions depend on the selected REX 521 hardware and application configuration (so the complete BBHGLB01 designation should be retained during procurement).

Identification Note

The exact REX521BBHGLB01 configuration should not be assigned specifications from another REX 521 variant.

In particular, verify the following from the physical nameplate and original system documentation:

• Auxiliary supply
• CT/VT configuration
• Binary I/O
• Protection-function package
• Communication interface
• Hardware revision
• Firmware
• Application configuration

Application Scenarios & Pain Points

In medium-voltage feeder protection, the REX 521 can monitor electrical quantities and initiate protective operations when configured thresholds and logic are exceeded. A failed relay can therefore affect both protection and breaker-control functions.

For industrial distribution systems, a multifunction relay can consolidate protection, measurement, and control functions into one panel device. This becomes especially useful when replacing older electromechanical or discrete protection arrangements.

Within transformer protection applications, the REX 521 platform can be configured for different protection requirements depending on the actual hardware and application package. The exact BBHGLB01 configuration should be checked before selecting the replacement.

For switchgear operating at 50°C+ ambient cabinet conditions, verify ventilation and the actual relay environmental specification. Thermal stress can cause intermittent electronic behavior in aging protection equipment.

Common Error Codes & Diagnostic Symptoms

No verified public source establishes dedicated numerical fault codes for the exact REX521BBHGLB01 configuration. The following are practical diagnostic symptoms:

• Self-Supervision / Internal Fault Alarm → Diagnosis: Possible internal electronics, memory, power-supply, or firmware problem. → Action: Review relay diagnostics and replace the IED if an internal hardware fault is confirmed.
• Relay Does Not Issue Expected Trip → Diagnosis: Possible incorrect settings, CT/VT input problem, binary I/O fault, configuration mismatch, or internal relay failure. → Action: Verify measured quantities, protection settings, and trip logic before replacing the relay.
• Communication Lost / Remote Monitoring Unavailable → Diagnosis: Could originate from the relay interface, network, configuration, or communication hardware. → Action: Check the external network first, then inspect the relay’s communication diagnostics.

Cross-Reference & Lifecycle Migration

Cross-Reference

Compatibility

For a replacement, compare:

1. Complete ordering code
2. Hardware revision
3. Auxiliary supply
4. CT inputs
5. VT inputs
6. Binary input/output arrangement
7. Communication interfaces
8. Protection-function configuration
9. Firmware
10. Existing protection settings
11. Control logic
12. Communication configuration


    ABB REX521BBHGLB01

Direct Replacement

The safest replacement is another ABB REX521BBHGLB01 with the same complete configuration.

Do not assume that another REX 521 relay with a similar front-panel appearance is a direct replacement. The configuration suffix can represent meaningful hardware and application differences.

Migration

The REX 521 is a legacy-generation ABB protection platform. If the existing switchgear is being retained, an exact tested spare is often the lowest-risk short-term strategy.

For a longer-term modernization project, migration to a newer ABB Relion platform may be considered, but this requires engineering review of CT/VT circuits, trip logic, communication, protection settings, and panel wiring.

Firmware

Do not automatically flash firmware onto a replacement relay. First identify the existing firmware and application configuration and verify compatibility with the target installation.

Field Engineer’s Tech Notes

1. Check the CT circuit before declaring the relay defective.
A protection relay can appear to have a measurement or protection problem when the actual fault is an open CT circuit, incorrect CT ratio, loose terminal, or wiring problem.

2. Preserve the existing protection configuration.
Before removing the REX 521, document protection settings, trip logic, binary I/O assignments, communication addresses, and time-synchronization settings. Do not rely on the replacement unit’s factory configuration.

Strict QA & Testing SOP

1. Inbound identification — Verify ABB and the complete marking.

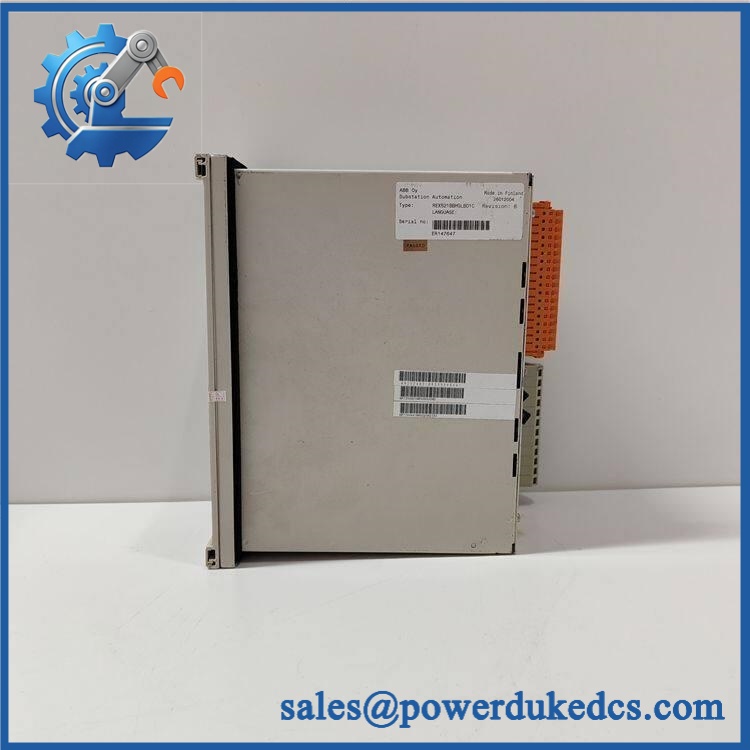

2. Nameplate inspection — Record serial number, hardware revision, and manufacturing information.
3. Housing inspection — Check enclosure, HMI, buttons, terminals, connectors, and mounting points.
4. Terminal verification — Compare the actual terminal arrangement against the target installation.
5. Auxiliary-power test — Apply the correct supply specified for the actual relay.
6. Startup test — Verify normal initialization and self-supervision status.

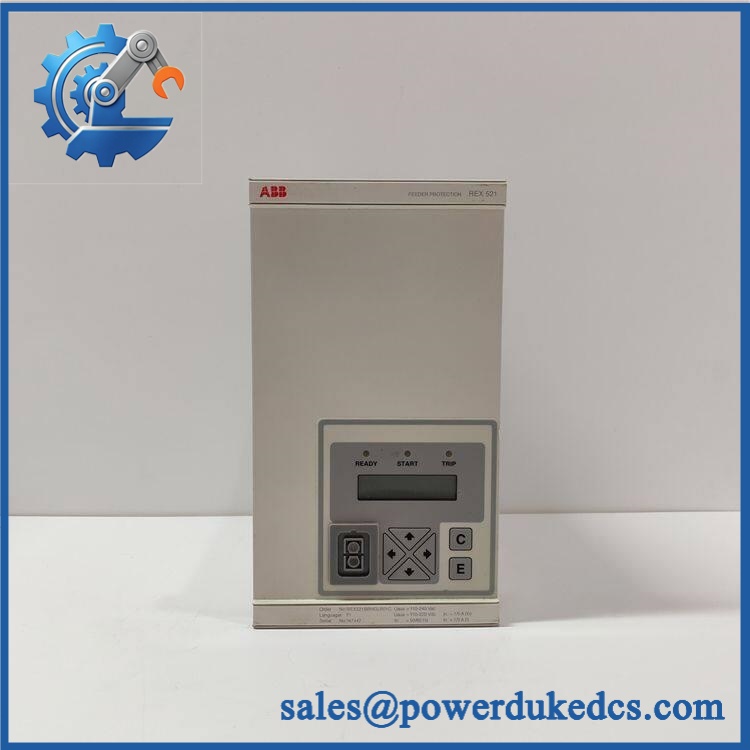

7. HMI test — Check display, LEDs, controls, and local indications.
8. Measurement test — Apply suitable simulated current/voltage inputs and verify measured values.
9. Protection test — Perform secondary injection for applicable protection elements.
10. Trip-output test — Verify binary outputs and breaker-control logic in an isolated test environment.
11. Input test — Check configured binary inputs and status indications.
12. Communication test — Verify supported communication interfaces and configured data exchange.
13. Event recording test — Confirm event capture and retrieval where applicable.
14. Configuration verification — Compare protection settings and logic with the approved application.
15. Extended operation — Monitor the relay for resets, diagnostic alarms, and intermittent behavior.
16. Final QA record — Record serial number, firmware, configuration, test results, and actual-unit photographs.
17. ESD packaging — Use antistatic protection and adequate mechanical cushioning.

Test videos can be provided when available, showing the actual identification, startup, HMI status, diagnostic condition, and functional testing.

Buyer’s FAQ

A: It is an ABB REX 521 multifunction protection and control relay used in medium-voltage electrical protection applications.

A: No. It is a dedicated protection and control IED, designed for electrical protection, measurement, supervision, and control rather than general-purpose PLC sequencing.

Q3: Can another REX 521 replace this unit?
A: Not automatically. The complete configuration, CT/VT arrangement, I/O, auxiliary supply, communication interfaces, firmware, and protection functions must be compared.

Q4: Can I hot-swap the relay?
A: Do not assume hot-swapping is supported. CT circuits and breaker-control wiring require an approved isolation and replacement procedure.

Q5: Is REX 521 still a good long-term spare?
A: It is a legacy-generation platform. For an existing installation, an exact tested spare can be valuable; for a modernization project, evaluate migration to a current protection platform.

Q6: How do I verify a New Original ABB unit?
A: Request photographs of the actual unit showing , ABB markings, serial/traceability information, hardware revision, front panel, and rear terminals. For a protection relay, request functional-test evidence before shipment.
