Description
- ABB S-073N 3BHB009884R5211 | Original MV Drive Component
2. Unboxing & Physical Snapshot
- Model & Brand: ABB S-073N, part number 3BHB009884R5211. This unit is identified as an ABB medium-voltage drive phase module / power conversion assembly associated with ACS6000-class drive systems.
- Approximate Physical Dimensions (W × H × D): Approximately 350 × 500 × 250 mm (13.8 × 19.7 × 9.8 in.). Exact dimensions depend on mechanical frame configuration, busbar arrangement, and installed accessories.
- Estimated Shipping Weight: Approximately 15–25 kg (33–55 lb) including transport protection. The heavy construction is due to power semiconductor components, thermal hardware, and mechanical support structures.
- What’s in the Box:
- ABB S-073N 3BHB009884R5211 phase module assembly
- Integrated power semiconductor section
- Gate drive/interface electronics (configuration dependent)
- Protective transport packaging
- ESD handling protection for electronic interfaces
- Identification label and traceability documentation
3. Product Introduction
The ABB S-073N installs inside the power cabinet section of an ABB medium-voltage drive, where it forms part of the converter power stage. Mechanical positioning is critical because the module must align with high-current bus connections, cooling channels, and insulation barriers. Incorrect mounting pressure or poor thermal contact can create abnormal temperature rise during operation (which is critical for continuous-duty motor applications).
This is a high-energy power conversion assembly, not a standard control board replacement. The internal switching devices, gate drive circuits, and heatsink interfaces require controlled handling. Inspect the power terminals, mounting surfaces, connector pins, and retaining hardware before installation. A damaged contact surface may pass an initial inspection but fail under full electrical load.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model Number | S-073N |
| Part Number | 3BHB009884R5211 |
| Product Type | Medium Voltage Drive Phase Module |
| Application Family | ABB ACS6000 / high-voltage inverter systems |
| Main Function | Power conversion phase assembly |
| Power Technology | IGCT-based switching technology |
| Converter Role | Phase power processing stage |
| Cooling Method | Cabinet forced-air cooling system dependent |
| Thermal Interface | Integrated heatsink and power semiconductor cooling structure |
| Power Connections | High-current busbar interface |
| Control Interface | Drive gate/control interface |
| Mounting Method | Drive cabinet mechanical frame |
| Protection Functions | Semiconductor monitoring and drive protection system dependent |
| Operating Environment | Industrial power conversion enclosure |
| Heat Dissipation | High thermal load; requires designed airflow path |

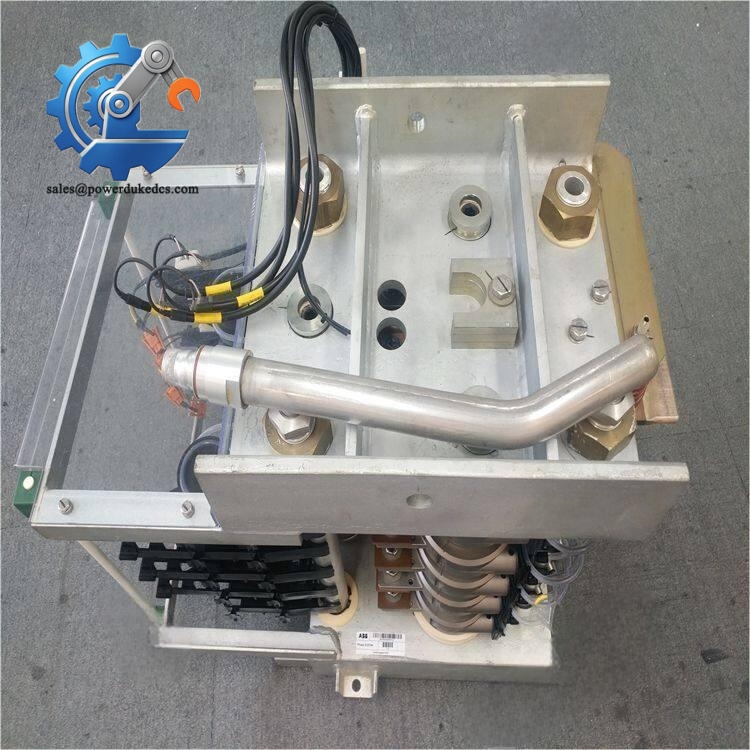

ABB S-073N 3BHB009884R5211ABB S-073N 3BHB009884R5211
5. Global Compliance & Industry Certifications
Expected regulatory approvals and compliance considerations for the ABB S-073N include:
- CE Mark compliance for applicable ABB drive systems
- UL/cUL Listed status where applicable to the complete drive assembly
- IEC 61800 series adjustable speed electrical power drive system compliance considerations
- IEC 62477 power electronic converter safety requirements
- RoHS compliance depending on manufacturing revision
- ATEX/IECEx suitability only when installed within an approved hazardous-area drive package
- Marine approvals such as DNV GL only for specifically certified marine installations
IEC 62477 compliance is important for power conversion equipment because it addresses electrical safety, insulation coordination, and protective measures around high-energy semiconductor assemblies.
Verify specific lot certifications with OEM.
6. Long-Term Storage & Asset Preservation Guide
Store the ABB S-073N in a dry, controlled warehouse environment with the original protective packaging installed. The high-current terminals, semiconductor interfaces, and connector surfaces must remain free from moisture and contamination.
Maintain humidity below 60% RH. Avoid temperature cycling because condensation can form on insulated surfaces and accelerate corrosion around power connections.
Inspect the heatsink surface, busbar contact areas, mounting brackets, and connector assemblies before installation. Record the serial number, hardware revision, and storage history. For medium-voltage drive spares, traceability is part of reliability management.
7. Physical Installation Prerequisites
- Install only within the approved ABB medium-voltage drive cabinet architecture.
- Verify mechanical alignment before tightening mounting hardware.
- Clean and inspect all high-current connection surfaces.
- Confirm busbar torque values according to ABB installation documentation.
- Maintain required clearance around cooling airflow paths.
- Leave sufficient cabinet ventilation space; 50 mm minimum clearance around airflow openings is recommended where practical.
- Confirm protective earth connections before energization.
- Use appropriate lifting equipment during handling.
- Perform insulation and electrical checks before returning the drive to service.
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for the ABB S-073N 3BHB009884R5211?
A: Medium-voltage drive power modules are generally evaluated under HS classifications covering electrical power conversion equipment, commonly within HS 8504 categories. The final Harmonized System classification depends on the declared function, whether shipped as a complete assembly, and the importing country’s customs interpretation.
Q: Does Country of Origin affect this ABB phase module shipment?
A: Yes. COO affects customs clearance, project documentation, warranty records, and asset traceability. Confirm the origin from the physical nameplate and commercial invoice rather than relying only on supplier database information.
Q: Should shipping insurance be included for the S-073N module?
A: Recommended. This assembly contains expensive power semiconductor hardware and precision mechanical interfaces. Use reinforced packaging, shock protection, moisture barriers, and documented receiving inspection.
Q: Does the ABB S-073N include the latest firmware pre-loaded?
A: No. The S-073N is a power phase module and does not normally contain application firmware. Drive control software, parameters, and configuration data are maintained by the associated ABB drive control system. Verify hardware compatibility and commissioning records before installation.
