1. ABB S-073N ALU | Original Medium Voltage Inverter Module

2. Unboxing & Physical Snapshot

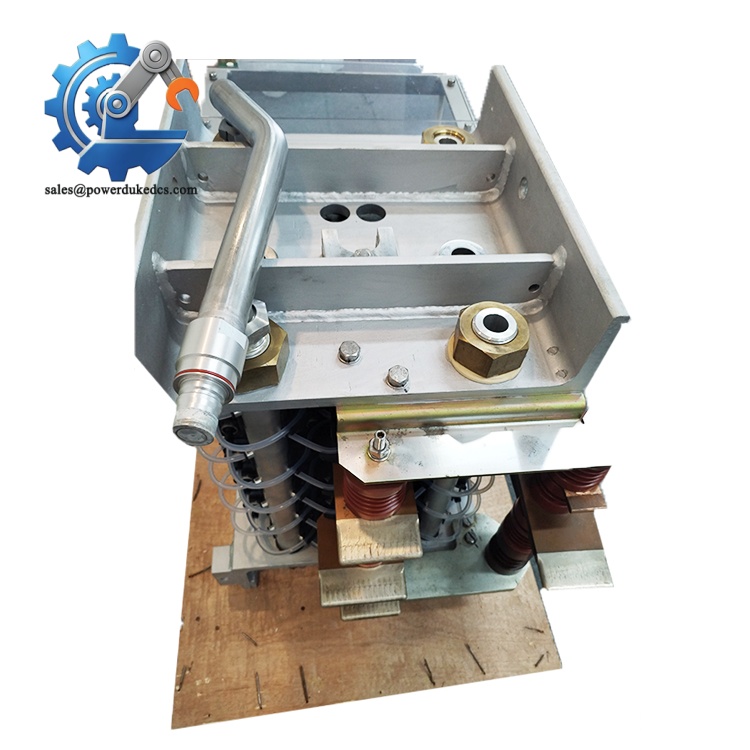

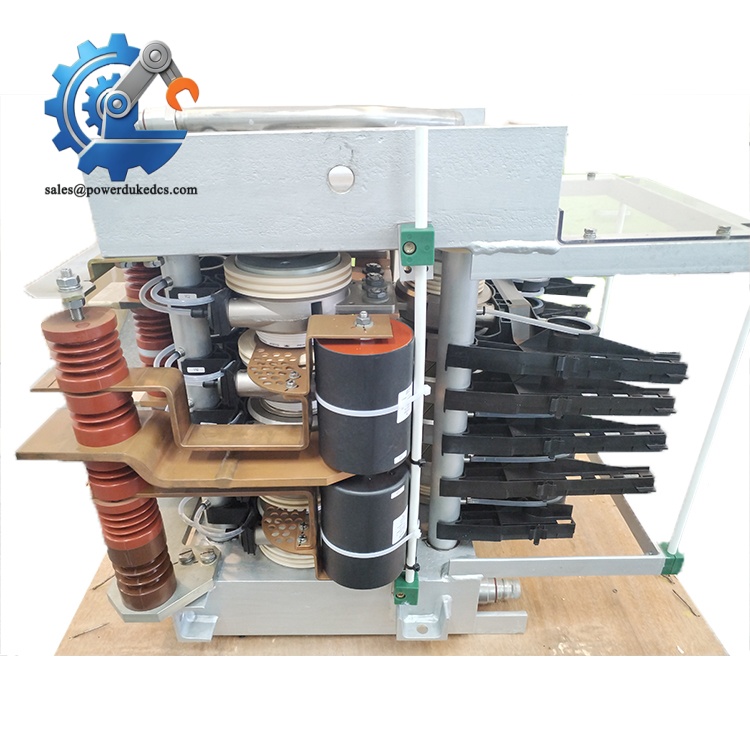

• Model & Brand: ABB S-073N ALU, part number 3BHB009884R5211. This assembly is identified as an ABB ACS6000 medium-voltage drive phase module / ALU power module used in high-power converter applications.
• Approximate Physical Dimensions (W × H × D): Approximately 350 × 500 × 250 mm (13.8 × 19.7 × 9.8 in.). Actual dimensions vary depending on mounting frame and attached busbar hardware.
• Estimated Shipping Weight: Approximately 15–25 kg (33–55 lb) due to the power semiconductor assembly, mechanical frame, and heat-transfer components.
• What’s in the Box:
  • ABB S-073N ALU phase module assembly
  • Integrated power semiconductor components
  • Gate drive/interface electronics (configuration dependent)
  • Protective anti-static packaging where applicable
  • Shock-resistant transport packaging
  • Identification label and traceability documentation

3. Product Introduction

The ABB S-073N ALU mounts inside the power section of an ACS6000 medium-voltage drive cabinet, where the phase module interfaces with the converter structure, cooling arrangement, and high-power DC/AC switching network. Mechanical alignment is critical because the module depends on correct busbar positioning, thermal contact surfaces, and electrical clearances (which directly affect insulation performance during operation).

This is a power conversion asset, not a standard PLC replacement card. The internal IGCT-based switching hardware, gate drive circuits, and thermal interfaces require controlled handling. Inspect the heatsink surfaces, power terminals, mounting points, and connector assemblies before installation. A small mechanical defect can become a major reliability issue after the drive returns to full load service.

4. Core Technical Specifications

Parameter	Value
Manufacturer	ABB
Model	S-073N ALU
Part Number	3BHB009884R5211
Product Type	Medium Voltage Drive Phase Module
Drive Family	ABB ACS6000
Application	High-power motor drive and converter systems
Power Technology	IGCT-based power switching
Converter Architecture	Modular power converter design
Function	Phase power conversion stage
Cooling Method	Forced air / cabinet cooling system dependent
Heat Dissipation	High thermal load; requires designed airflow path
Power Supply	Internal converter supply arrangement
Gate Interface	Integrated gate drive electronics
Mounting	Cabinet frame / converter assembly mounting
Insulation Requirements	High-voltage clearance and creepage management
Operating Environment	Industrial power conversion enclosure

ABB S-073N ALU

5. Global Compliance & Industry Certifications

Expected regulatory approvals and compliance considerations for the ABB S-073N ALU include:

• CE Mark compliance for applicable ACS6000 drive configurations
• UL/cUL recognition where applicable to the complete drive system
• IEC 61800 series adjustable speed electrical power drive system requirements
• IEC 62477 power electronic converter safety considerations
• RoHS compliance depending on manufacturing revision
• ATEX/IECEx applicability only when installed in certified hazardous-area drive systems
• Marine approvals such as DNV GL only for qualified marine drive packages

IEC 62477 compliance is important because power converter assemblies operate with high electrical energy levels. The certification framework addresses insulation coordination, protective measures, and safe operation of power electronic equipment.

Verify specific lot certifications with OEM.

6. Long-Term Storage & Asset Preservation Guide

Keep the S-073N ALU inside sealed protective packaging during warehouse storage. The power terminals, semiconductor interfaces, and connector contacts should remain protected from moisture and airborne contamination.

Maintain humidity below 60% RH and avoid temperature cycling. Condensation can damage insulation surfaces and accelerate corrosion on high-current connection points.

Inspect the heatsink surfaces, mounting hardware, busbar contact areas, and electrical connectors before installation. Record the serial number, hardware revision, and storage history because replacement power modules require strict traceability.

7. Physical Installation Prerequisites

• Install only within the approved ABB ACS6000 drive cabinet architecture.
• Verify mechanical alignment before tightening mounting hardware.
• Confirm busbar connections are clean and correctly torqued.
• Inspect insulation barriers and clearance distances before energization.
• Provide the designed cabinet airflow path for thermal management.
• Leave adequate clearance around cooling channels and heat exhaust areas.
• Connect protective grounding according to ABB drive documentation.
• Use appropriate lifting equipment during handling due to module weight.


  ABB S-073N ALU

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for the ABB S-073N ALU?

A: Medium-voltage drive power modules are commonly evaluated under HS classifications related to electrical power conversion equipment, often within HS 8504 categories. Final classification depends on the declared function, complete drive configuration, and importing-country customs interpretation.

Q: Does Country of Origin affect importing this ABB phase module?

A: Yes. COO affects customs clearance, warranty documentation, and regulated industrial asset records. Confirm the origin marking from the equipment label and commercial invoice before shipment.

Q: Should shipping insurance be included for the S-073N ALU?

A: Strongly recommended. This assembly contains high-value semiconductor hardware and precision mechanical interfaces. Use shock monitoring, moisture protection, reinforced packaging, and documented receiving inspection.

Q: Does the ABB S-073N ALU include the latest firmware pre-loaded?

A: No firmware is normally stored on the power phase module itself. Control software, parameters, and drive firmware reside in the associated ACS6000 control system. Verify hardware compatibility, parameter backups, and commissioning records before installation.
