ABB S-093H 3BHB030478R0009 | PCS6000 Phase Module

Description

• Full Model Number: S-093H
• ABB Product ID: 3BHB030478R0009
• Catalog Description: PHASE MODULE
• Lifecycle Status: Legacy part; ABB catalog records identify 3BHB030478R0309 as the replacement product ID
• Core Function in System: Power-conversion phase module for ABB PCS6000 medium-voltage converter systems
• Top 3 Hardcore Specs: IGCT-based power conversion; PCS6000 phase-module architecture; 6–6.9 kV class applications
• Power Conversion Technology: IGCT with associated diode and clamping-capacitor circuitry
• Gate Control: Optical trigger-signal transmission
• Product Net Weight: 175 kg
• Minimum Order Quantity: 1 piece
• Condition & Lead Time: Replacement inventory subject to exact part-number verification; emergency dispatch based on confirmed physical stock

ABB catalog data identifies 3BHB030478R0009 as PHASE MODULE, ABB Type Designation PHASE S-093H, with a documented 175 kg net weight and 3BHB030478R0309 listed as the replacement product ID. Current catalog data also identifies it as a spare part rather than a standard electronic control board.

Module 3: Technical Intro & Downtime Impact

When a phase module fails inside a PCS6000 installation, the consequence reaches directly into the power-conversion stage. The ABB S-093H, 3BHB030478R0009 is identified as a phase module based on IGCT power-conversion technology. In this architecture, the phase section includes the semiconductor switching device, associated diode circuitry, and clamping components, while the gate command is transmitted optically. That makes correct module identification critical before any replacement work begins.

For MTTR planning, the most reliable documented figures are the 3BHB030478R0009 part number, S-093H type designation, 175 kg net weight, and the availability of 3BHB030478R0309 as the listed replacement product ID. Secondary technical records associate the S-093H with high-power PCS6000 applications and medium-voltage systems, but detailed voltage, current, switching frequency, cooling, and semiconductor ratings should be taken from the converter’s original engineering documentation rather than from generic online listings. —A 175 kg assembly also means the mechanical removal procedure requires engineered lifting equipment and a controlled handling plan.

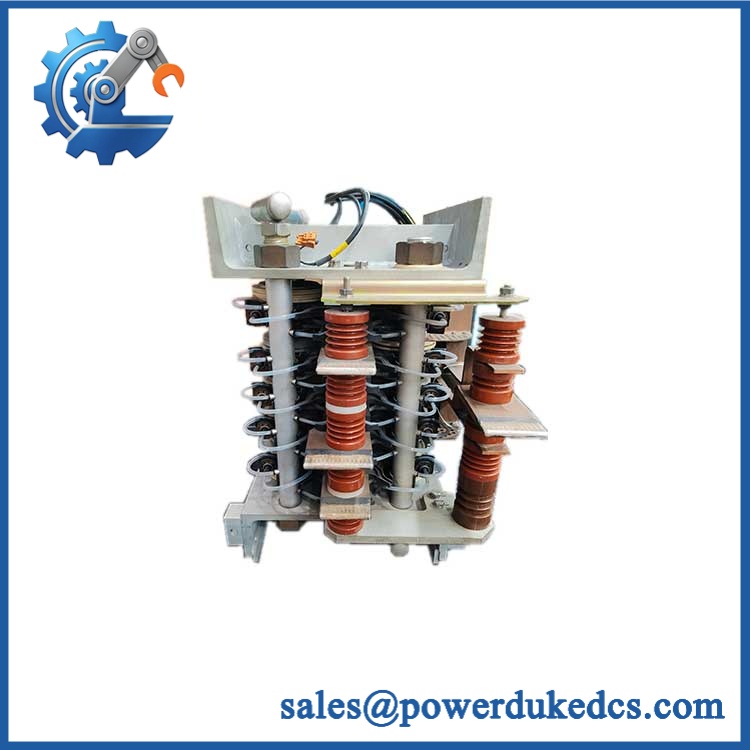

ABB S-093H 3BHB030478R0009

Module 4: Dynamic Emergency Swap & Configuration Guide

1. Pre-Swap Prep — Treat the assembly as high-energy equipment

• Place the PCS6000 converter in the approved maintenance state.
• Isolate all applicable AC and DC energy sources.
• Follow the site lockout/tagout procedure.
• Verify absence of hazardous voltage with properly rated MV/DC test equipment.
• Complete the required discharge and grounding procedure before opening the power section.
• Record S-093H / 3BHB030478R0009 and the installed replacement configuration.
• Photograph bus connections, fiber-optic routing, cooling connections, mechanical fasteners, and adjacent phase assemblies.
• Establish a certified lifting/handling plan for the approximately 175 kg assembly.
• Use suitable ESD protection when handling optical and electronic interfaces.

2. Removal — Use engineered mechanical handling

• Confirm the power section is fully isolated and grounded.
• Verify DC-link and associated stored-energy circuits are discharged according to the PCS6000 procedure.
• Disconnect gate-control optical fibers and protect fiber ends against contamination.
• Label power, control, cooling, and auxiliary connections before removal.
• Release the phase-module mechanical fasteners using the approved service procedure.
• Support the module with rated lifting equipment before removing the final retaining hardware.
• Withdraw the module without applying uncontrolled load to busbars, optical connections, or cooling interfaces.
• Inspect adjacent semiconductor assemblies and buswork for evidence of the original failure.

3. Installation & Configuration — Match the phase position

• Verify ABB S-093H / 3BHB030478R0009 before lifting the replacement into position.
• Check whether the required engineering documentation specifies the newer 3BHB030478R0309 replacement part.
• Confirm mechanical orientation and phase position.
• Install the module using the approved lifting points and rated handling equipment.
• Reconnect busbars, cooling circuits, auxiliary connections, and optical gate-control interfaces exactly as documented.
• Inspect optical connectors before mating them.
• Restore all specified mechanical fastening and torque values.
• Verify cooling connections and leakage checks before energization.
• Do not substitute a visually similar IGCT phase assembly without engineering approval.

4. Power-On Self-Test (POST) — Validate the power stage progressively

• Complete all mechanical, grounding, insulation, and cooling checks first.
• Verify the gate-control optical path before enabling the power semiconductor stage.
• Energize the auxiliary systems according to the startup procedure.
• Check converter diagnostics for phase-module, gate-drive, cooling, and communication faults.
• Confirm all monitoring channels report valid values.
• Perform the prescribed low-energy or controlled commissioning test before full-load operation.
• Monitor phase current, voltage, semiconductor temperatures, and fault indications during the first controlled run.
• Do not return the converter to full process load until the repaired phase has passed the complete commissioning sequence.

The S-093H should not be treated like a conventional PLC card. It is a heavy power-conversion assembly, and the replacement procedure must combine electrical isolation, mechanical lifting, optical-interface protection, and controlled power-stage commissioning. Available catalog data also identifies 3BHB030478R0309 as the replacement product ID.

Module 5: Quality Assurance & Testing SOP

This assembly requires substantially more than a visual inspection. The QC process should verify semiconductor condition, mechanical integrity, optical gate-drive interfaces, cooling provisions, and the exact phase-module identity.

1. OEM identity verification

• Verify ABB
• Verify S-093H
• Verify 3BHB030478R0009
• Check whether the approved replacement is 3BHB030478R0309
• Compare nameplate, assembly markings, revision information, and phase-module configuration
• Perform OEM anti-counterfeit visual inspection
• Photograph all identification markings

2. Mechanical inspection

• Inspect the housing and structural frame for deformation
• Check semiconductor mounting areas for impact damage
• Inspect busbar interfaces for arcing, discoloration, or contamination
• Examine cooling connections, seals, and fittings
• Inspect all lifting and mounting points
• Check optical connector housings for damage
• Record measured assembly condition and shipping damage, if any

3. Electrical screening

• Perform approved continuity checks on accessible circuits
• Verify grounding-path continuity where applicable
• Inspect power terminals and busbar interfaces
• Check for abnormal semiconductor short-circuit indications using the manufacturer’s approved procedure
• Perform insulation testing only according to the engineering/service specification
• Do not apply arbitrary megohmmeter or hipot voltages to the assembled semiconductor circuit

4. Functional testing

• Verify gate-drive optical continuity
• Check gate-control interface integrity
• Verify auxiliary power circuits
• Verify cooling-system interlocks
• Perform power-stage diagnostics in an approved test environment
• Check phase-module monitoring
• Verify controlled switching behavior using the manufacturer’s prescribed commissioning test
• Check current and voltage feedback
• Verify temperature monitoring
• Perform protection and interlock testing
• Confirm no persistent phase-module or gate-drive fault
• Record all test conditions and measured values

5. Final QC release

• Independent QC sign-off
• Optical-interface protection
• Mechanical protection for busbar and mounting interfaces
• Moisture and contamination protection
• Final cross-check of S-093H / 3BHB030478R0009
• Replacement-part cross-check against 3BHB030478R0309, where applicable
• Retain inspection photographs, electrical test records, and commissioning documentation

ABB catalog information identifies the original unit as a 175 kg PHASE MODULE and explicitly lists 3BHB030478R0309 as its replacement product ID. That replacement relationship should be checked against the installed configuration before procurement.

Module 6: Maintenance & Reliability FAQ

Q1. Is ABB S-093H 3BHB030478R0009 a direct drop-in replacement, or does it require a firmware flash?
There is no controller firmware to flash in the conventional PLC sense. However, this is not a blind mechanical substitution. Verify the complete phase-module configuration, mechanical interface, optical gate-drive connections, cooling arrangement, and converter compatibility. ABB catalog data lists 3BHB030478R0309 as the replacement product ID for 3BHB030478R0009.

Q2. Is it safe to hot-swap the S-093H while the system is running?
No. Treat the phase module as a high-energy power-conversion assembly. The converter must be isolated, stored energy discharged, and the required grounding procedure completed before removal. The approximately 175 kg assembly also requires controlled mechanical handling.

Q3. Will replacing the S-093H cause my current program or configuration to be lost?
The phase module itself is not the application-program storage location in the way a PLC CPU might be. The critical configuration resides in the associated converter control system. Before replacement, preserve converter parameters, fault history, phase assignment, gate-drive settings, and commissioning records. After installation, verify the replacement phase against the control system before enabling normal operation.

Q4. What is the function of the S-093H in the system?
The unit is identified as a PHASE MODULE and is associated with IGCT-based power conversion. The phase assembly handles the power semiconductor switching function within the converter architecture, with optical transmission used for gate-control signaling.

Q5. What should I verify before ordering a replacement?
Verify S-093H, 3BHB030478R0009, the installed phase position, mechanical interface, busbar arrangement, optical gate connections, cooling configuration, and converter model. Most importantly, check whether 3BHB030478R0309 is the approved replacement for your installation rather than ordering solely from the old part number. ABB catalog data explicitly identifies that newer product ID as the replacement.
