ABB S-093H 3BHB030478R0309 | Industrial Drive Assembly

2. Unboxing & Physical Snapshot

Brand & Model: ABB S-093H 3BHB030478R0309
ABB Type Designation: S-093H G2.03
Product Type: Phase Module for ABB ACS6000 medium voltage drive systems.
Primary Function: Power conversion phase module containing high-power semiconductor switching components for medium voltage drive applications.
Application Area: Medium voltage motor drives, industrial power conversion systems, and large rotating equipment control applications.
Approximate Physical Dimensions: Approximately 450 × 350 × 250 mm (17.7 × 13.8 × 9.8 in), depending on installed mechanical configuration.
Estimated Shipping Weight: Approximately 150 kg (331 lb) net weight.
Construction Features:
- High-power semiconductor phase assembly
- IGCT switching components
- Optical trigger interface
- Cooling interface components
- Heavy-duty mechanical frame
Mounting Style: ACS6000 medium voltage drive cabinet installation.
What’s in the Box:
- ABB S-093H G2.03 Phase Module
- Protective transport packaging
- Handling supports when supplied
- Technical documentation when available

3. Product Introduction

Medium voltage drive cabinets depend on precisely matched power modules to control large industrial motors. The ABB S-093H 3BHB030478R0309 installs as a phase module inside the ACS6000 drive architecture, where semiconductor switching devices convert electrical power under controlled conditions. This assembly is not a general-purpose spare; it is a drive-specific power stage component requiring exact replacement verification.

Treat this module as a heavy electrical asset. Use proper lifting equipment. Inspect the IGCT section, fiber optic interfaces, bus connections, and cooling surfaces before installation (which is critical after international transport because mechanical damage may not be visible externally). Verify the original module designation, revision, and drive configuration before energizing.

4. Core Technical Specifications

Parameter	Value
Manufacturer	ABB
Model Number	S-093H
Order Number	3BHB030478R0309
ABB Type Designation	S-093H G2.03
Product Type	Phase Module
Drive Platform	ABB ACS6000 Medium Voltage Drive
Technology	IGCT-based power conversion module
Main Function	Power semiconductor phase switching
Semiconductor Interface	Optical trigger control
Cooling Method	Drive cabinet cooling system
Net Weight	Approximately 150 kg
Installation Method	Fixed cabinet-mounted assembly
Replacement IDs	3BHB030478R0009 / 3BHB030478R0209 variants listed as previous IDs
Storage Classification	Electronic power assembly
Customs Tariff Reference	85049090 listed in ABB product details

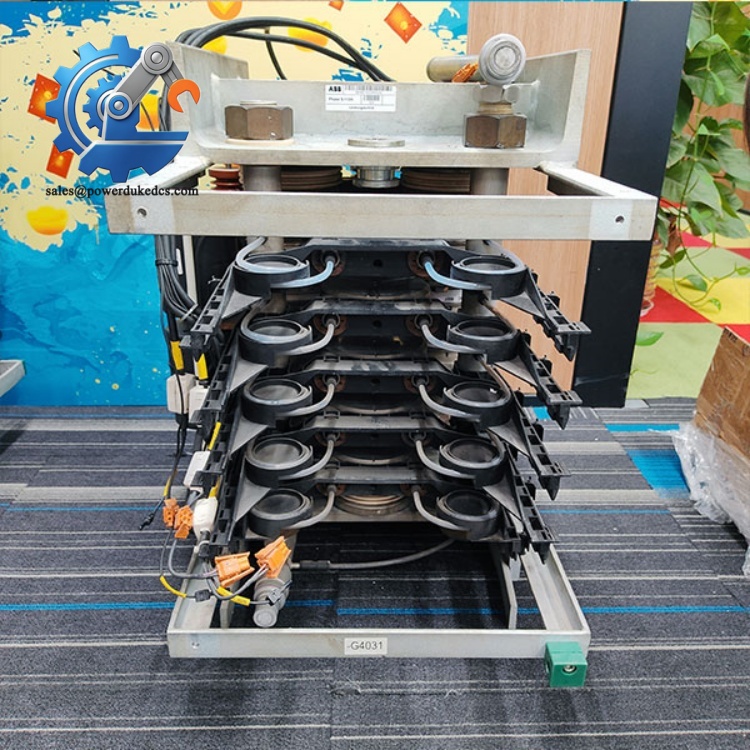

ABB S-093H 3BHB030478R0309

5. Global Compliance & Industry Certifications

Expected regulatory approvals and compliance considerations for the ABB S-093H 3BHB030478R0309 include:

CE Mark — applicable when installed as part of a compliant ABB ACS6000 drive system.
UL/cUL Recognition — may apply depending on the complete medium voltage drive assembly and regional certification scope.
RoHS Compliance — applicable to supported production revisions.
IEC Medium Voltage Drive Standards — relevant when evaluating the complete drive system.
ATEX/IECEx — requires complete system evaluation; this power module alone is not automatically approved for hazardous areas.
Marine approvals (DNV GL, ABS, or LR) — only applicable when integrated into certified marine propulsion or power systems.

For high-power electrical equipment, certification is especially important because insulation coordination, fault containment, and cabinet design directly affect personnel safety and plant protection.

Verify specific lot certifications with OEM.

6. Long-Term Storage & Asset Preservation Guide

Store the ABB S-093H in a dry, climate-controlled warehouse. Maintain humidity below 60% RH to protect semiconductor assemblies, insulation materials, and metallic connection surfaces.
Keep the module sealed in protective packaging until installation. The fiber optic interfaces, power terminals, and semiconductor surfaces require contamination control.
Inspect the cooling surfaces, mounting hardware, and electrical contact points during scheduled spare audits. Oxidation or debris on power connections can create high-resistance points during operation.
Use appropriate lifting equipment when moving stored units. A 150 kg power module requires controlled handling to prevent frame distortion or connector damage.
Record serial number, hardware revision, storage date, and inspection history for reliability documentation.

7. Physical Installation Prerequisites

Install the S-093H only within the approved ABB ACS6000 drive cabinet configuration.
Verify all mechanical guides, mounting points, and power connections before installation.
Use certified lifting equipment due to the module weight.
Confirm cabinet grounding and protective earth connections before electrical work.
Inspect fiber optic trigger connections carefully; avoid contamination or sharp bends.
Maintain adequate airflow clearance around the drive power section. Leave at least 50 mm clearance where cabinet convection paths require open airflow.
Verify cooling system operation before applying medium voltage power.
Follow ABB maintenance procedures for discharge time and stored electrical energy before handling.

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for the ABB S-093H 3BHB030478R0309?

A: ABB product documentation lists 85049090 as a customs tariff reference for this phase module category. Final HS classification must be confirmed according to the importing country’s customs regulations.

Q: Why does Country of Origin matter for this ABB power module?

A: COO documentation affects customs clearance, export control review, supplier qualification, and industrial asset records. Keep the ABB nameplate information, shipping documents, and inspection records together.

Q: Is shipping insurance necessary for the S-093H module?

A: Strongly recommended. This is a heavy power electronic assembly containing sensitive semiconductor components, fiber interfaces, and precision mechanical structures. Transport damage can create expensive commissioning delays.

Q: Does the S-093H include firmware pre-loaded?

A: No. The S-093H is a power phase module and does not function as a standalone controller with user firmware. Compatibility depends on the ACS6000 drive configuration, control software, and installed hardware revision. Verify the replacement configuration before startup.
