1. ABB S-093S 3BHB030475R0009 | Traceable IGCT Assembly

2. Unboxing & Physical Snapshot

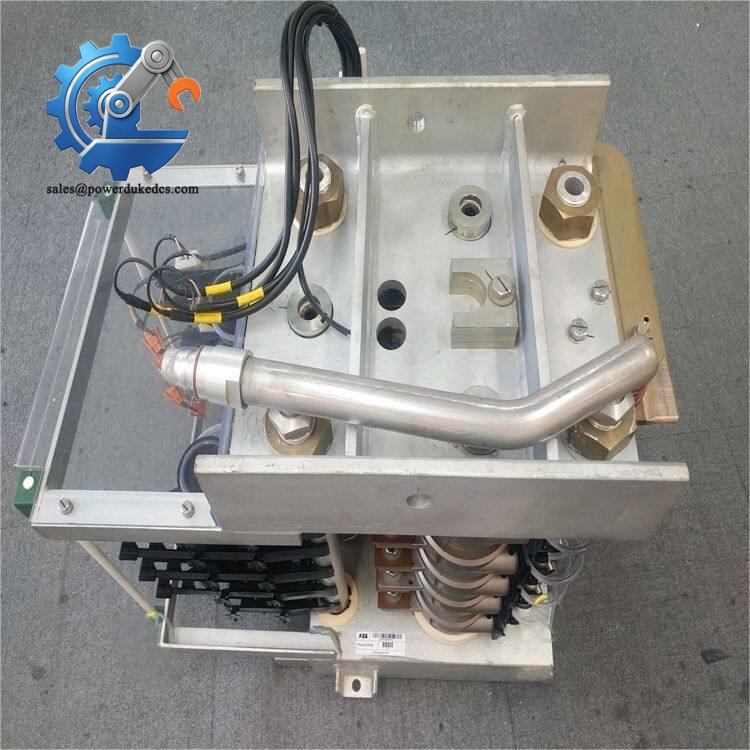

• Model & Brand: ABB S-093S (3BHB030475R0009)
  • Additional identification: 2UFA906P24718
• Product Type: Phase Module / Medium Voltage Drive Power Assembly
• Application: ABB medium-voltage drive spare part used in ACS6000 series power conversion systems. The S-093S is identified as a PHASE MODULE with ABB material number 3BHB030475R0009.
• Approximate Physical Dimensions (W × H × D):
  • Width: approximately 500 mm
  • Height: approximately 350 mm
  • Depth: approximately 300 mm
  • Final dimensions depend on the complete drive frame and cooling configuration.
• Estimated Shipping Weight: Approximately 175 kg net weight.
• What’s in the Box:
  • ABB S-093S phase module assembly
  • Power semiconductor module structure
  • Factory identification plate
  • Protective transport packaging
  • Handling instructions where supplied
  • Mounting hardware when included with the assembly

3. Product Introduction

The ABB S-093S mounts inside the power section of an ACS6000 medium-voltage drive cabinet, where phase-level power conversion takes place between the electrical supply and motor output. Mechanical positioning, bus connections, and cooling interfaces must align precisely during replacement because this assembly carries high electrical energy and significant thermal load (critical during planned maintenance outages).

This is a large power-electronic spare, not a standard plug-in control module. Treat it as a controlled warehouse asset. Verify the exact material number, revision level, and drive compatibility before installation. Inspect the insulated barriers, power terminals, cooling surfaces, and mounting points before commissioning (transport shock or contamination can create failures that appear only after high-voltage operation begins).

4. Core Technical Specifications

Parameter	Value
Manufacturer	ABB
Model Number	S-093S
Material Number	3BHB030475R0009
Additional ID	2UFA906P24718
Product Type	Phase Module
Drive Platform	ABB ACS6000 medium-voltage drive family
Application	Medium-voltage variable frequency drive power conversion
Semiconductor Technology	IGCT-based power switching architecture
Rated Current Class	Approximately 93 A class (configuration dependent)
Voltage Class	Medium-voltage system dependent
Power Rating	Drive configuration dependent
Cooling Method	Forced air or liquid cooling depending on drive design
Power Consumption	Not independently rated; dependent on switching losses and operating point
Heat Dissipation	High thermal load; managed by drive cooling system
Mounting Method	Fixed installation inside MV drive cabinet
Weight	Approximately 175 kg
Protection Environment	Indoor industrial enclosure
Storage Requirement	Dry, controlled industrial environment

ABB S-093S 3BHB030475R0009 | Traceable IGCT Assembly

5. Global Compliance & Industry Certifications

Expected compliance considerations for this class of ABB medium-voltage drive hardware include:

• CE Mark for applicable European EMC and electrical safety requirements.
• UL/cUL Listed or Recognized components when installed as part of approved North American drive equipment.
• ATEX/IECEx consideration when the complete drive system is installed in hazardous-area environments.
• Marine approvals such as DNV GL when used in certified offshore or vessel power-control applications.

For medium-voltage systems, certification applies to the complete engineered installation. Proper insulation coordination, grounding, protective devices, and cabinet design are required because the phase module operates at potentially hazardous energy levels.

Verify specific lot certifications with OEM.

6. Long-Term Storage & Asset Preservation Guide

• Store the S-093S in a dry indoor warehouse with humidity maintained below 60% RH. Moisture exposure can reduce insulation performance and affect high-voltage connection surfaces.
• Keep all factory protective covers installed on power terminals and interfaces. Never leave bus connection areas exposed during long-term storage.
• Perform periodic inspection every 12–24 months. Check insulation surfaces, mounting hardware, cooling channels, identification labels, and packaging condition (large assemblies often deteriorate from environmental exposure before electrical aging becomes visible).

7. Physical Installation Prerequisites

• Confirm the S-093S replacement matches the installed ACS6000 drive configuration and revision.
• Use approved lifting equipment; the module weight requires controlled mechanical handling.
• Maintain cabinet airflow clearance according to ABB drive installation requirements.
• Verify protective earth connections before mechanical installation completion.
• Inspect power connection surfaces for oxidation or contamination.
• Confirm cooling system interfaces are clean and correctly connected.
• Perform insulation resistance checks and commissioning tests according to ABB maintenance procedures.

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly reviewed for the ABB S-093S 3BHB030475R0009?
A: ABB product documentation references HS 85044088 for this phase module classification. Final customs classification should be confirmed with the importing country’s customs authority before shipment.

Q: Does Country of Origin (COO) documentation matter for this ABB phase module?
A: Yes. COO records support customs clearance, duty evaluation, supplier qualification, and long-term asset traceability. Retain the ABB nameplate, serial information, packing records, and receiving inspection reports.

Q: Should shipping insurance be purchased for the S-093S?
A: Yes. This 175 kg power assembly contains sensitive semiconductor components and precision insulation structures. Use reinforced transport packaging, moisture protection, shock monitoring, and freight insurance based on replacement value.

Q: Does the ABB S-093S include the latest firmware pre-loaded?
A: No. The S-093S is a power conversion phase module and does not function as a firmware-based controller. Compatibility depends on the ACS6000 drive hardware configuration, control system parameters, and associated drive software.
