ABB S-113N 3BHB018008R0001 | Traceable IGCT Hardware

Description

1. ABB S-113N 3BHB018008R0001 | Traceable IGCT Hardware

Unboxing & Physical Snapshot

• Model & Brand: ABB S-113N (3BHB018008R0001)
• Product Type: Phase Module / High-Voltage Drive Power Module
• Application: ABB ACS2000 medium-voltage drive system spare part used in power conversion assemblies. The unit is identified as a PHASE MODULE with ABB type designation S-113N.
• Approximate Physical Dimensions (W × H × D):
  • Width: approximately 465 mm
  • Height: approximately 300 mm
  • Depth: approximately 300 mm
  • Dimensions depend on installed drive frame configuration and cooling arrangement.
• Estimated Shipping Weight: Approximately 180 kg gross weight (approximately 175 kg net product weight according to supplier data).
• What’s in the Box:

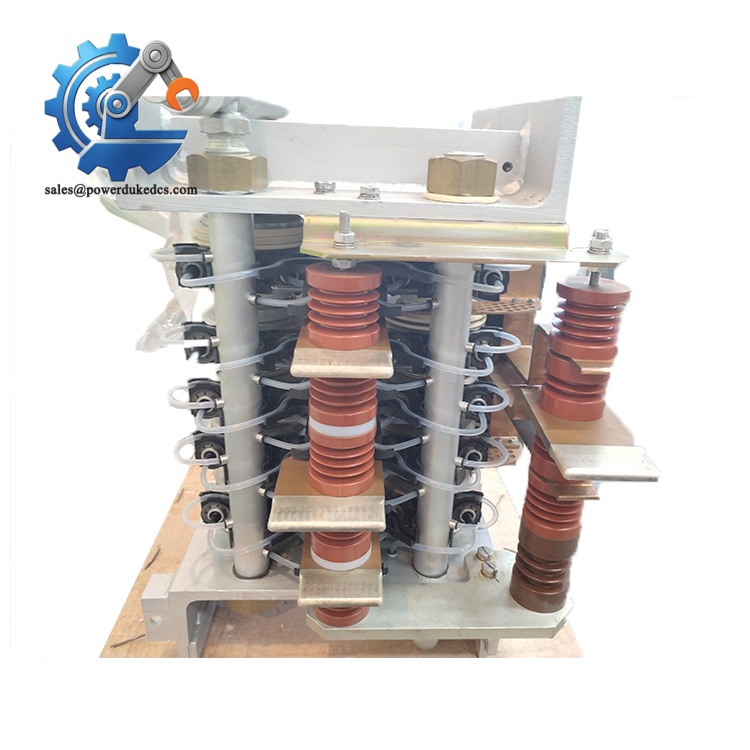

  • ABB S-113N phase module assembly
  • Power module frame assembly
  • Factory identification label
  • Protective transport packaging
  • Handling documentation when supplied with OEM shipment
  • Installation hardware where applicable

Product Introduction

Installed inside the ABB ACS2000 medium-voltage drive cabinet, the S-113N phase module forms part of the power conversion section where controlled energy transfer between the input supply and motor output takes place. The mechanical mounting structure, power connections, and cooling interfaces are engineered as part of the complete drive assembly (critical during replacement because alignment affects electrical clearance and thermal performance).

This is a high-power electrical assembly, not a simple plug-in controller card. Treat it as a controlled maintenance spare. Inspect the bus connections, cooling surfaces, insulation barriers, and mounting points before installation. The module is associated with ABB ACS2000 drive applications and may require verification against replacement part revisions before shutdown execution.

Core Technical Specifications

ABB S-113N 3BHB018008R0001

Global Compliance & Industry Certifications

Expected regulatory approvals and compliance considerations for this class of ABB medium-voltage drive hardware may include:

• CE Mark for applicable European electrical safety and EMC requirements.
• UL/cUL Listed or Recognized components where installed within approved North American drive systems.
• ATEX/IECEx consideration when the complete drive installation is used in hazardous-area applications.
• Marine approvals such as DNV GL for offshore or vessel propulsion/power applications where applicable.

For medium-voltage equipment, certification applies primarily to the complete drive system, cabinet assembly, and installation method. Proper grounding, insulation coordination, and protective devices are essential because failures can involve high energy levels.

Verify specific lot certifications with OEM.

Long-Term Storage & Asset Preservation Guide

• Store the S-113N in a dry indoor environment with humidity maintained below 60% RH. Moisture exposure can affect insulation materials, power connections, and protective surfaces.
• Keep all factory protective covers installed during storage. Do not expose bus interfaces or power terminals to dust, condensation, or airborne contaminants.
• Perform periodic inspection before installation. Check insulation surfaces, cooling channels, fasteners, and connection points (large power assemblies often fail after storage due to contamination rather than electrical aging).

Physical Installation Prerequisites

• Verify the replacement S-113N revision matches the existing ABB ACS2000 drive configuration.
• Use approved lifting equipment. The module weight requires controlled mechanical handling.
• Maintain cabinet airflow clearance according to the drive manufacturer’s installation requirements.
• Ensure power cabinet grounding is verified before installation.
• Confirm all bus connections, insulation barriers, and mechanical fasteners are correctly installed.
• Inspect cooling paths and remove any transport protection before commissioning.
• Perform insulation resistance and commissioning checks according to ABB maintenance procedures.

Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly reviewed for the ABB S-113N 3BHB018008R0001?
A: Supplier references commonly classify this phase module under HS 85049090 / 85049099 as a part of electrical power conversion equipment. Final classification must be confirmed with the importing country’s customs authority.

Q: Does Country of Origin (COO) documentation matter for this ABB phase module?
A: Yes. COO information supports customs clearance, duty assessment, supplier qualification, and lifecycle records. Keep the OEM nameplate, serial documentation, and receiving inspection records.

Q: Is shipping insurance recommended for the S-113N?
A: Yes. This is a heavy power-electronic assembly containing precision semiconductor components and insulation structures. Use industrial packaging, moisture protection, shock monitoring, and freight insurance appropriate for the replacement value.

Q: Does the ABB S-113N include the latest firmware pre-loaded?
A: No. The S-113N is a power module assembly, not a programmable controller. It does not contain application firmware in the same manner as a CPU module. Compatibility depends on the ACS2000 drive configuration, control system parameters, and installed hardware revision.
