ABB SC610 3BSE001552R1 | Advant Controller Submodule Carrier

• Brand: ABB
• Full Model Number: SC610
• ABB Article Number: 3BSE001552R1
• Product Type: Submodule Carrier
• Product Family: Advant Controller 100 Series
• Core Function in System: Carrier interface for CI532 Multi Vendor Interface communication modules
• CI532 Capacity: 2 × CI532 modules per carrier
• System Role: Multi Vendor Interface hardware integration
• Product Classification: Communication module
• Dimensions: 252 mm depth × 273 mm height × 40 mm width
• Net Weight: 1.44 kg
• HS Code: 85389091
• Condition & Lead Time: Stock condition subject to inspection; emergency dispatch available subject to order confirmation

ABB identifies SC610 / 3BSE001552R1 as an Advant Controller 100 Series carrier module required for connection of CI532, with capacity for two CI532 modules in one carrier. ABB also classifies it as a communication-module product.

Module 3: Technical Intro & Downtime Impact

A failed carrier can disable communication hardware even when the individual CI532 interfaces are still functional. In a legacy Advant control system, that can interrupt the Multi Vendor Interface path to external equipment and create communication loss without an obvious CPU failure. ABB SC610, 3BSE001552R1, is the dedicated carrier used to connect modules within the Advant Controller 100 Series architecture. ABB specifies that two modules fit into one SC610 carrier, making the board a physical and electrical integration point rather than a standalone protocol converter.

For MTTR, the benefit of an exact carrier replacement is straightforward: the technician restores the original arrangement without redesigning the communication architecture. ABB’s current product data specifies 252 × 273 × 40 mm and 1.44 kg net weight for the SC610. No processor memory, firmware version, or independent operating-temperature specification is identified in the available ABB product record because SC610 is a carrier assembly. The critical compatibility checks are therefore the host Advant Controller platform, version, slot/location, connectors, and associated communication configuration.

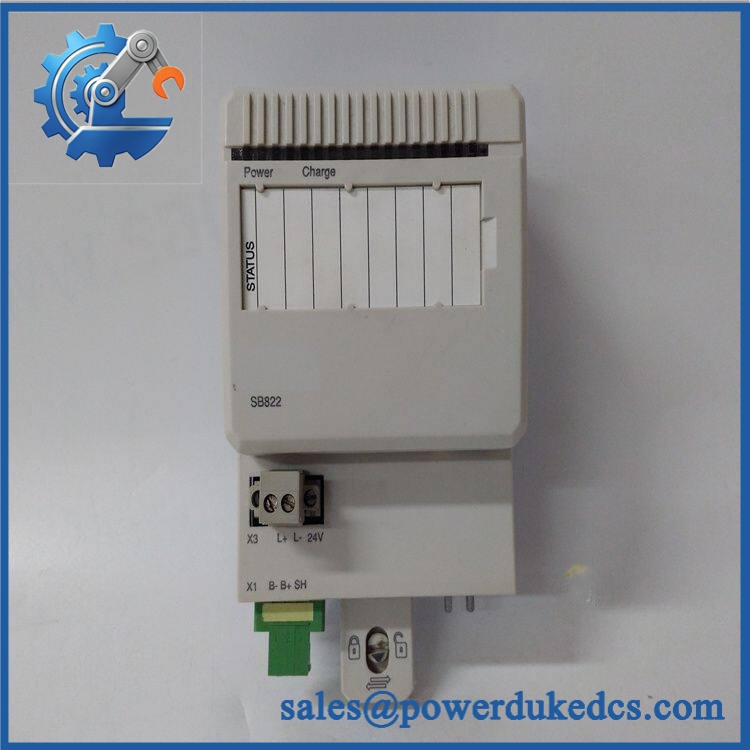

ABB SB822 3BSE018172R1

Module 4: Dynamic Emergency Swap & Configuration Guide

1. Pre-Swap Prep — Freeze the Configuration

Place the Advant Controller system into its approved maintenance state and isolate the applicable power according to the site procedure. Record the exact / 3BSE001552R1 identification, chassis position, installed modules, cable routing, bus assignments, and communication parameters. Photograph both cards and their connector positions before disturbing the carrier. Use ESD protection throughout.

2. Removal — Extract the Carrier Without Pulling the Boards

is a submodule carrier, not a standalone DIN-rail controller. ABB specifically describes it as the carrier required for connection, with two modules installed in one carrier. After the relevant power has been isolated, disconnect external wiring from the installed interfaces as required. Remove the retention hardware, then withdraw the carrier assembly using the approved mechanical release points. Support the approximately 1.44 kg assembly rather than allowing it to hang on connected wiring.

3. Installation & Configuration — Preserve the Original Two- Arrangement

Inspect the replacement for / 3BSE001552R1 before installation. Transfer the two modules only after confirming their identities, connector condition, and orientation. Install the carrier into the same Advant Controller position and ensure the carrier-to-controller interface is fully seated.

Reinstall each into its original position and reconnect the communication wiring exactly as photographed. itself does not define the protocol configuration; the model determines the Multi Vendor Interface function. ABB lists separate variants for RCOM/RCOM+, Modbus, and Siemens 3964(R) protocols, so replacing the carrier should not be treated as an opportunity to interchange cards.

4. Power-On Self-Test (POST) — Confirm Both Paths

Restore power and inspect the Advant Controller diagnostics for hardware or communication faults. Verify that both installed modules are recognized and that their expected communication channels become operational.

Then execute an end-to-end communication check for each independently. Confirm valid data exchange, expected status indications, correct node/bus behavior, and absence of recurring communication errors. A carrier that powers up correctly but leaves one path inactive has not passed commissioning.

Module 5: Quality Assurance & Testing SOP

Each ABB / 3BSE001552R1 should undergo mechanical, interface, and host-compatibility inspection before shipment.

• OEM anti-counterfeit visual inspection: Verify ABB markings, designation, 3BSE001552R1 article number, PCB identification, connectors, mounting structure, and workmanship.
• Exact part-number verification: Confirm / 3BSE001552R1 against the inventory record and physical label.
• Mechanical inspection: Check carrier alignment surfaces, retention hardware, connector interfaces, mounting locations, corrosion, contamination, bent contacts, and evidence of unauthorized repair.
• Dimensional verification: Confirm approximately 252 × 273 × 40 mm and 1.44 kg net weight where logistics or cabinet planning requires controlled measurement.
• seating test: Fit two compatible cards and verify proper mechanical engagement and connector alignment.
• Power-on self-test (POST): Install in a compatible Advant Controller test assembly and verify that the host recognizes the installed communication modules without hardware faults.
• Communication-interface test: Test both positions independently using the applicable protocol-specific test fixture.
• I/O full-range simulation: Where the installed application includes external data exchange, exercise the complete configured data range and verify valid responses.
• Bus integrity test: Monitor communication for timeout, framing, CRC, or other interface errors during repeated transactions.
• Dual-module test: Confirm simultaneous operation of both modules installed in the same carrier, since ABB specifies capacity for two units per .
• Extended stability test: Maintain communication activity under representative load and monitor for intermittent loss, connector sensitivity, or unexpected module resets.
• Final QC record: Document carrier part number, modules tested, slot positions, communication protocols, diagnostic results, test duration, photographs, technician sign-off, and packaging condition.

Module 6: Maintenance & Reliability FAQ

1. Is ABB a direct drop-in replacement, or does it require a firmware flash?

is a carrier assembly, not a CPU. ABB identifies it as the carrier required for connection in the Advant Controller 100 Series. A firmware flash is therefore not normally the defining replacement procedure for itself. The important checks are the exact 3BSE001552R1 part number, host-controller compatibility, carrier position, and the modules installed on it.

2. Is it safe to hot-swap while the system is running?

Do not assume live replacement is permitted. provides the physical interface for communication hardware, and removing the carrier can disturb multiple communication paths simultaneously. Use the approved Advant Controller shutdown or maintenance procedure unless ABB documentation for the exact installed hardware explicitly permits energized replacement.

3. Will replacing cause my current program or communication configuration to be lost?

The carrier does not normally contain the application program itself. However, the two modules attached to the carrier provide the actual communication functions, and their configuration determines the external protocol behavior. Before replacement, record the model numbers, protocol assignments, communication parameters, cable connections, and controller configuration. ABB documents multiple variants, including RCOM/RCOM+, Modbus, and Siemens 3964(R).

4. What should I verify before commissioning the replacement?

Confirm / 3BSE001552R1, the Advant Controller model, the exact two modules, connector positions, and communication wiring. ABB specifies that two units fit into one carrier. After installation, test each communication channel independently and then test both simultaneously. This catches connector seating and bus-assignment problems that a simple power-up check will miss.

5. What are the warranty terms if the unit fails after installation?

Warranty coverage should be defined on the quotation or sales order for the specific serialized carrier. Keep the incoming inspection photographs, part-number record, configuration, installation date, communication test results, and controller diagnostics. For a passive carrier assembly, these records are particularly useful when determining whether a fault originates in , a card, the controller backplane, or external communication wiring.
