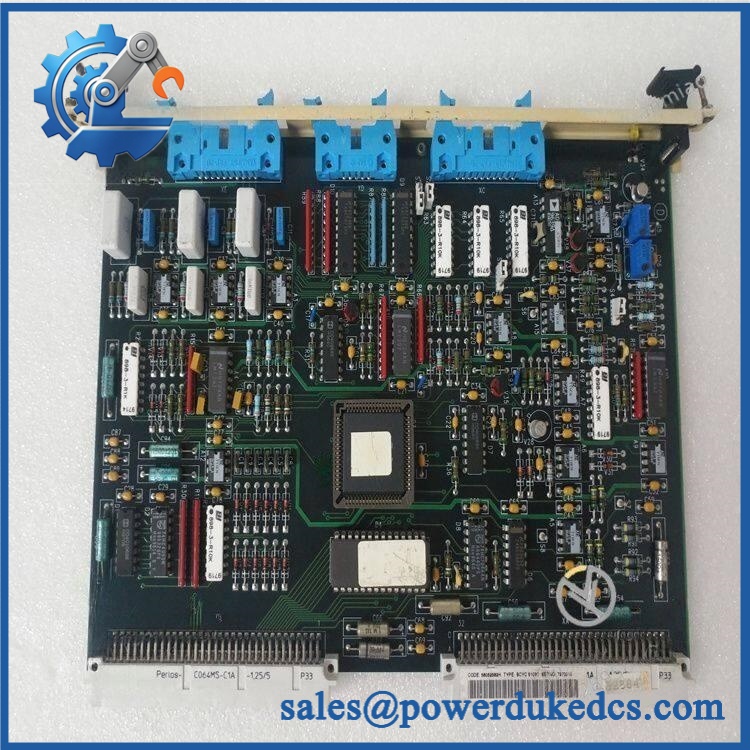

ABB SCYC51204 63912476C | Replacement Drive Unit Board

Description

• Model: SCYC51204
• ABB Part Number: 63912476C
• Brand: ABB
• Part Type: Drive unit board
• Application: ABB industrial drive equipment
• Lifecycle: Legacy-support spare; verify installed drive configuration before replacement

Technical Introduction

The ABB SCYC51204 63912476C is a drive unit board used as an electronic spare within ABB industrial drive equipment. Current industrial spare-parts listings specifically identify SCYC51204 63912476C as an ABB drive unit board.

The same SCYC51204 designation appears in ABB-related technical reference material with the corresponding 63912476 and 63912476C identifiers, confirming that the complete part-number suffix matters when sourcing a replacement. Publicly available sources do not provide sufficiently reliable OEM-level data for the exact board’s electrical ratings, dimensions, interfaces, or drive-family compatibility, so those values should be confirmed against the installed equipment documentation rather than inferred.

Best Suited For

• ABB drive maintenance and corrective replacement
• Legacy drive spare-parts inventory
• Plant shutdown support where an exact board match is required

Core Technical Specifications

ABB SCYC51204 63912476C

Please refer to the OEM datasheet for complete electrical characteristics, environmental tolerances, dimensions, weight, connector assignments, and installation requirements.

Field Engineer’s Tech Notes

1. Do not treat 63912476 and 63912476C as automatically identical.
ABB-related references list both identifiers against . The C suffix should be recorded exactly as shown on the installed board, because revision differences can affect interchangeability.

2. Record board position and cable routing before removal.
For a drive unit board, the physical connector arrangement is only part of the compatibility check. Photograph the board, connector labels, mounting location, and any configuration selectors before removal. This is particularly important when supporting legacy equipment for which the original configuration documentation is incomplete.

Adaptive QA & Testing Protocol

Incoming QA begins with verification of the markings, revision suffix, connector condition, mounting points, PCB cleanliness, and evidence of corrosion, overheating, or physical damage.

Functional testing should be performed using the appropriate ABB drive test environment rather than assuming generic PCB functionality. Where the applicable test setup permits, verification can include board power-up behavior, drive-system recognition, status indications, communication with the host control assembly, and drive diagnostic checks. Configuration settings should be compared with those documented from the removed board before commissioning.

Inspection photographs, test reports, and available test videos can be provided upon request.

ABB 63912476C

Buyer’s FAQ

What type of ABB component is 63912476C?

Available industrial spare-part references identify it as an ABB drive unit board.

Is 63912476C a direct replacement for 63912476?

Do not assume direct interchangeability solely from the matching base number. ABB-related references show both 63912476 and 63912476C associated with , so the installed revision and applicable drive documentation should be checked first.

Is the available board new or refurbished?

Condition depends on the physical inventory offered. Confirm whether the unit is New Surplus (NSFP), new, or refurbished, and request actual-part photographs where required.

What are the lead time and warranty?

These depend on current stock and condition. The quotation should state confirmed availability, estimated dispatch lead time, warranty period, and test status.
