Description
- Model: SCYC51220
- Brand: ABB
- Part Type: Pulse amplifier / pulse converter module
- Associated Part Number: 63901075C
- Application: ABB industrial drive and control equipment
- Lifecycle: Appropriate for legacy-equipment spare inventory; confirm current OEM lifecycle status
Technical Introduction
A pulse interface fault can stop a drive system even when the main controller remains healthy.
ABB SCYC51220, commonly paired with 63901075C, is identified in multiple industrial automation references as a pulse amplifier module or pulse-conversion board. The same part reference is also listed in ABB-related spare-part catalogs and automation component indexes. One source explicitly identifies as a pulse amplifier module, while another lists the same reference as an ABB control module. Because publicly available descriptions are inconsistent, the exact host-system function should be confirmed from the installed equipment documentation and board label before engineering approval.
For maintenance procurement, the safest identification is therefore , with the complete part number matched against the existing assembly rather than relying on a generic “control module” description.
Engineer’s Takeaway: Treat as a board-level ABB pulse-interface spare and verify the associated drive, revision, connector arrangement, and signal duty before installation.

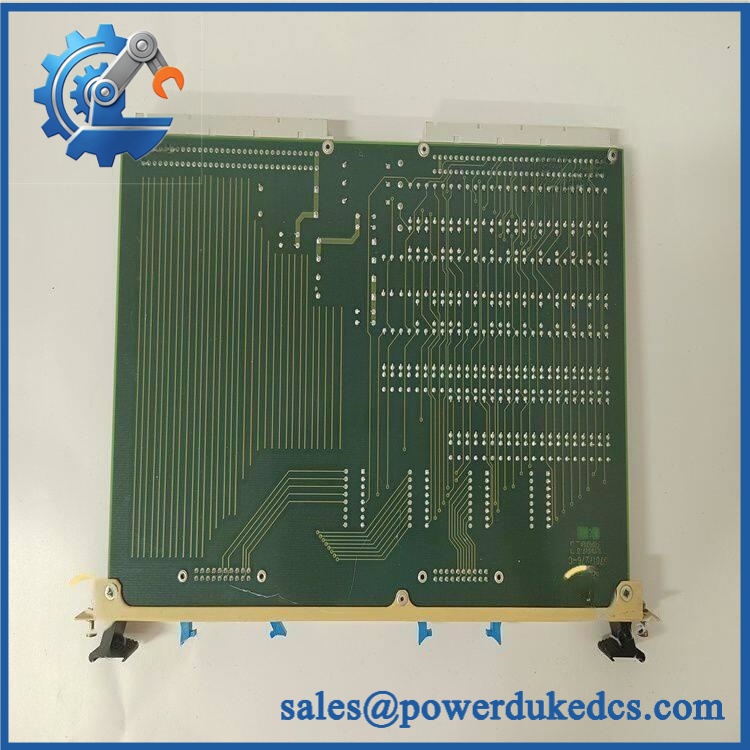

ABB SCYC51220
The pulse-amplifier designation is supported by multiple industrial automation listings. An ABB-related catalog also indexes among ABB drive/control components.
Field Engineer’s Tech Notes
- Check pulse polarity and wiring before power-up. Pulse-interface boards can be sensitive to incorrect signal routing, connector position, or incompatible field wiring. Photograph the existing board and label every connector before removal.
- Do not assume every has identical system compatibility. Hardware revision and host-drive configuration matter. Match against the installed BOM, board marking, and applicable ABB documentation before releasing the replacement.
Adaptive QA & Testing Protocol
Incoming QA for includes full part-number verification, PCB inspection, connector inspection, component and solder-joint examination, and comparison with the customer’s existing board.
For a suitable test setup, functional verification should concentrate on the board’s pulse signal path. The test sequence can include controlled pulse injection, observation of the corresponding output waveform, polarity verification, and confirmation that the interface responds correctly under the applicable ABB drive configuration. Generic PLC I/O testing should not be substituted for the OEM-specific pulse-interface test procedure.
Inspection photographs, test reports, and available test videos can be supplied upon request.

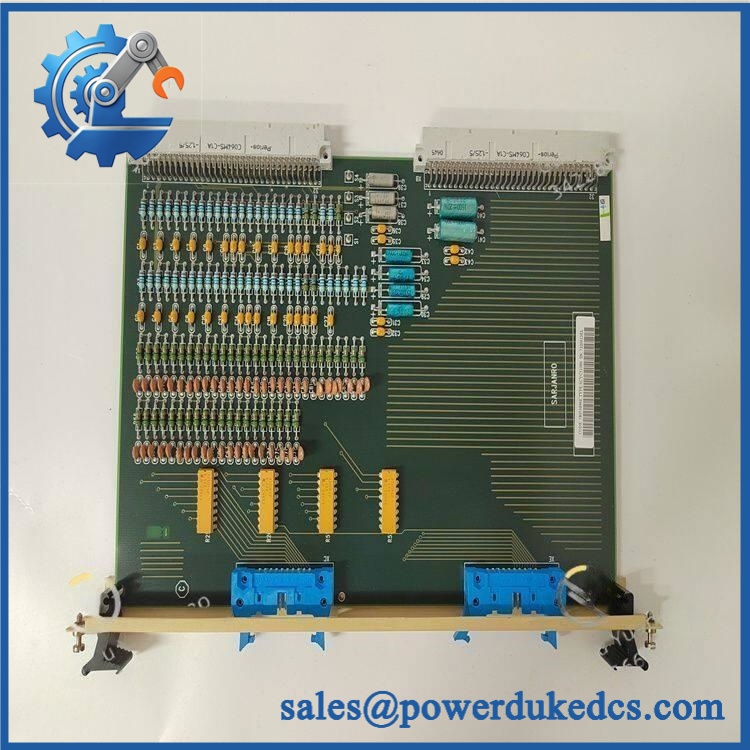

ABB SCYC51220
Buyer’s FAQ
Q: What is ABB used for?
A: Multiple industrial automation references identify as a pulse amplifier or pulse-conversion module used in ABB control and drive applications.
Q: Is 63901075C the same part as ?
A: The available product references pair with 63901075C. The complete marking should still be checked against the existing board before ordering.
Q: Can a different ABB pulse module be used as a direct substitute?
A: Not without an engineering compatibility check. Pulse level, polarity, connector pinout, timing characteristics, mounting, and host-system revision all need to match.
Q: Are New Surplus or refurbished units available?
A: Availability depends on current inventory. New OEM, New Surplus (NSFP), and refurbished condition should be quoted separately and identified clearly on the commercial documentation.
