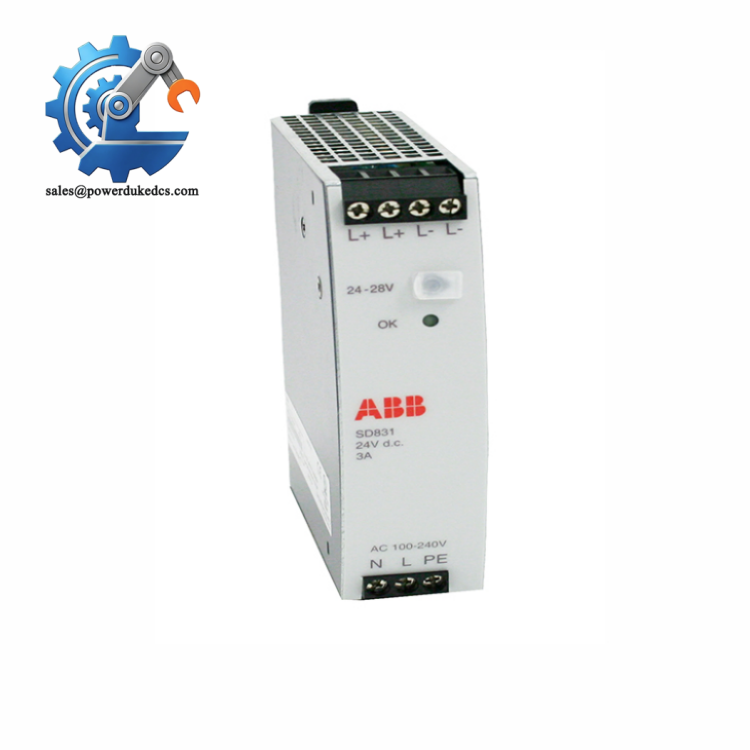

ABB SD831 3BSC610064R1 SELV Compliant Power Supply With Overload Protection

Voltage fluctuation inside control cabinets triggers random I/O dropouts and unexpected controller resets. The ABB SD831 (3BSC610064R1) is a compact DIN rail power supply built to power ABB Freelance and AC800M automation hardware.

This unit accepts both AC and DC main supply and delivers stabilized 24 VDC SELV compliant output. Soft-start circuitry avoids nuisance tripping of upstream breakers during power up. It can run standalone or pair with SS823 / SS832 voting modules to build redundant power architectures. Thousands of these units have served power, chemical and pulp & paper sites for over a decade.

⚠️ Execute replacement during full system shutdown. Disconnect upstream mains and wait minimum 5 minutes to discharge internal capacitors. Uncontrolled power loss may trigger process interlock actions.

Prepare ESD wristband, PH1 screwdriver, digital multimeter and camera. Take clear photos of terminal wiring layout. Calculate total load current of connected I/O and controllers; keep minimum 20% power margin. Back up all controller configuration files before power disconnection.

Mark every incoming AC and outgoing DC cable with labels. Loosen terminal screws and detach wiring step by step.

Release the DIN rail locking tab, slide the old SD831 upward and take it out. Clean mounting area and terminal contacts with dry compressed air. Inspect terminals for signs of overheating or oxidation.

Ground yourself via ESD protection before opening anti-static packaging. Confirm full part number SD831 / 3BSC610064R1 matches existing hardware.

Clip the unit onto DIN rail and lock the bottom latch. Route wiring following recorded photos. For DC input wiring: connect positive terminal to L, negative to N. Secure PE protective earth connection. Do not over-tighten terminal screws; target torque around 0.5 N·m.

Redundant setup note: If dual power configuration is required, add SS823 or SS832 diode voting unit between two SD831 outputs.

Carry out continuity check before restoring mains power. Confirm no short circuit between 24 V+ and GND terminals.

Switch on input power and observe front panel OK LED. Solid light indicates normal operation. Measure output voltage; target value sits around 24 V DC. Power up downstream controllers and I/O racks, check for abnormal hardware alarms. Maintain continuous monitoring for 30 minutes, verify no temperature rise on terminals. Record serial number and replacement date into plant maintenance logs.

All stocked SD831 units undergo complete industrial power supply verification.

Source traceability check runs first. Cross verify serial numbers and factory labels. Visual inspection confirms no scratches, burnt marks or manual repair work on PCB and enclosure.

Bench testing uses adjustable AC/DC power source and electronic load tester. Complete power-on test, full load output stability test and protection trigger verification. A continuous 24-hour powered aging test exposes intermittent hidden faults.

Electrical tests include insulation resistance and earth continuity measurement. All test data is documented.

Qualified units are sealed inside anti-static bags with QC Pass labels. Inspection photos and test records are available upon request.

❗ Load Capacity Miscalculation

Many sites add extra I/O modules without recalculating power demand. Overloading SD831 causes persistent voltage drop and random equipment restarts. We have met a chemical plant case where newly added AI modules pushed load beyond 3 A rating. Always reserve 20% spare capacity.

❗ Wrong Input Wiring For DC Supply

SD831 supports DC input, but polarity cannot be reversed. Reverse connection will not power the unit and risks permanent internal damage. Follow rule: DC positive → L terminal, DC negative → N terminal.

❗ Ignoring Protective Earth (PE) Connection

PE wire provides noise suppression and safety separation. Leaving PE disconnected raises EMI interference inside crowded control cabinets and violates SELV safety requirements.

❗ Poor DIN Rail Ventilation

Do not mount heat-generating devices directly above SD831. Restricted airflow pushes internal temperature higher and shortens service life. Leave vertical clearance as specified in ABB datasheet.

❗ Model Confusion With SD832 / SD833

SD831 = 3 A, SD832 = 5 A, SD833 =10 A. They share similar appearance but different output ratings. Random substitution leads to insufficient power for existing racks.

Following these checks prevents unnecessary downtime after power supply replacement.

1. Which control systems work with ABB SD831?

It serves as standard power supply for ABB Freelance DCS and AC800M controller racks, suitable for powering S800 I/O modules, local HMI and communication hardware.

2. Can I hot-swap SD831 while the cabinet remains powered?

Physical removal is possible, yet all downstream controllers and I/O will lose power instantly. For process safety, only perform replacement during planned shutdown.

3. Can I build redundant power supply with two SD831?

Yes. You need to install SS823 or SS832 diode voting unit between the two power outputs to avoid cross-feeding. Direct parallel connection without voter is not recommended.

4. What typical faults indicate SD831 failure?

Common symptoms: OK LED stays off after power on, output voltage collapses under load, frequent downstream I/O communication faults, and visible overheating of the enclosure.

5. Is this unit still in production?

ABB maintains production for SD83x series, yet lead time extends for overseas orders. Users with legacy systems are advised to maintain proper buffer stock to avoid long waiting times for breakdown support.

6. What warranty and technical support do you provide?

All units carry a 12-month industrial warranty. Our engineers offer remote guidance for wiring check, load calculation and redundant power architecture debugging.

SD831 belongs to ABC Class B spare part. It supports core control hardware, yet failure risk is moderate compared to controller CPU cards.

Recommended stocking guideline: Min 1 / Max 2 units per production site. Lead time variability exists for overseas factory orders. If multiple sites run identical AC800M / Freelance systems, cross-site inventory sharing can reduce overall carrying costs.

For sites with redundant power architectures, keep one spare for emergency replacement. Long-term planning can combine regular consumption with pre-planned last-time-buy to hedge against future production phase-out risks.
