ABB SPHSS13 | Auto Calibration Servo Module With 12 Month Factory Warranty

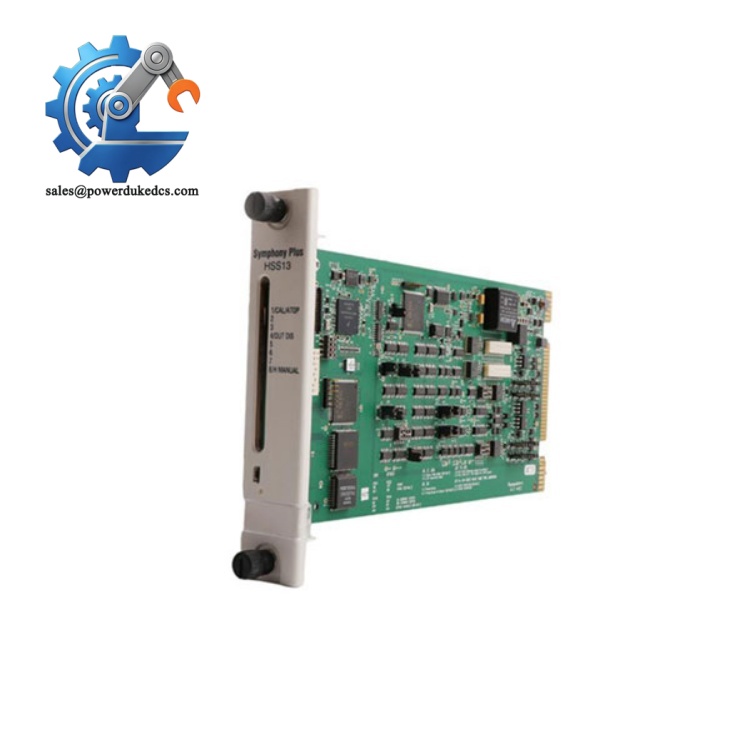

Unstable valve positioning and feedback signal faults can trigger unplanned turbine trips in power plants. The ABB SPHSS13 is a dedicated high-speed servo board built for Symphony Plus Harmony Rack DCS platforms. It acts as the interface between distributed control logic and turbine hydraulic actuators.

This module processes position signals from AC or DC LVDT sensors and generates drive commands to electro-hydraulic servo valves. Redundant signal channels improve fault tolerance for critical power generation loops. Operators can run automatic calibration without removing field sensors, cutting maintenance workload during unit overhaul. Widely deployed on steam, gas and hydro turbine governor control systems for thermal and hydropower stations.

Coordinate power plant operation team to place turbine control system into maintenance mode. Cut off rack 24V DC power supply and wait 5 minutes for capacitor discharge.

Prepare tools: ESD wrist strap, insulated screwdriver, digital camera. Export all turbine control parameters to secure storage. Take clear photos of LVDT wiring, servo valve terminals and module front switch settings.

⚠️ Important note: Turbine control hardware replacement requires approval under plant safety procedures.

Label all external field wiring before disconnection. Unlock front panel fasteners and extract SPHSS13 horizontally. Do not tilt the circuit board to prevent bending backplane gold contacts.

Inspect rack backplane for oxidation, burn marks or bent pins. Wipe contaminants gently with anti-static cloth.

Wear static protection before opening original packaging. Confirm part number SPHSS13 matches replacement requirement.

Insert module along rack guide rails and push fully until front latches lock securely. Restore field cables strictly following photographed wiring layout.

Copy all jumper and switch configurations from the original unit.

Pre-power-on self-check: Confirm complete insertion, correct polarity of LVDT feedback cables, no loose terminals inside the rack.

Restore rack power and observe front panel status LEDs. Steady power indicator confirms normal initialization.

Connect Symphony engineering workstation to access module parameters. Load saved control settings and activate auto calibration routine for LVDT position sensors.

Perform manual valve stroke test, verify smooth actuator movement without hunting or oscillation.

Carry out continuous steady-state monitoring for minimum 60 minutes. Confirm no abnormal position drift or communication alarms before switching back to automatic turbine control.

1. Can SPHSS13 operate with non-redundant LVDT sensors?

Yes. It supports single channel feedback for basic setups, though redundant wiring is strongly recommended for critical turbine protection loops to avoid single point failure.

2. Is hot-swap operation supported for this module?

Hot removal is prohibited. Live extraction will interrupt servo valve control and risk emergency turbine shutdown. The rack must be fully de-energized before replacement.

3. What common faults appear after module swap?

Most positioning oscillation comes from incomplete LVDT calibration or reversed feedback wiring. Always run auto-calibration after hardware replacement and double-check sensor polarity.

4. Can SPHSS13 replace older IMHSS05 servo modules?

It serves as the upgraded successor for legacy IMHSS05. Minor parameter adjustments are required during migration; review the ABB migration guide before project modification.

5. Does this module work on INFI 90 systems?

SPHSS13 is designed for Symphony Plus Harmony Rack hardware. Direct plug-in to older INFI 90 racks is not possible; rack hardware upgrade will be necessary.

6. What quality testing can be provided before shipment?

We provide 12-month warranty. Every unit undergoes power-on initialization, signal input/output simulation and communication testing. Test records and inspection photos are available upon request.
