Description

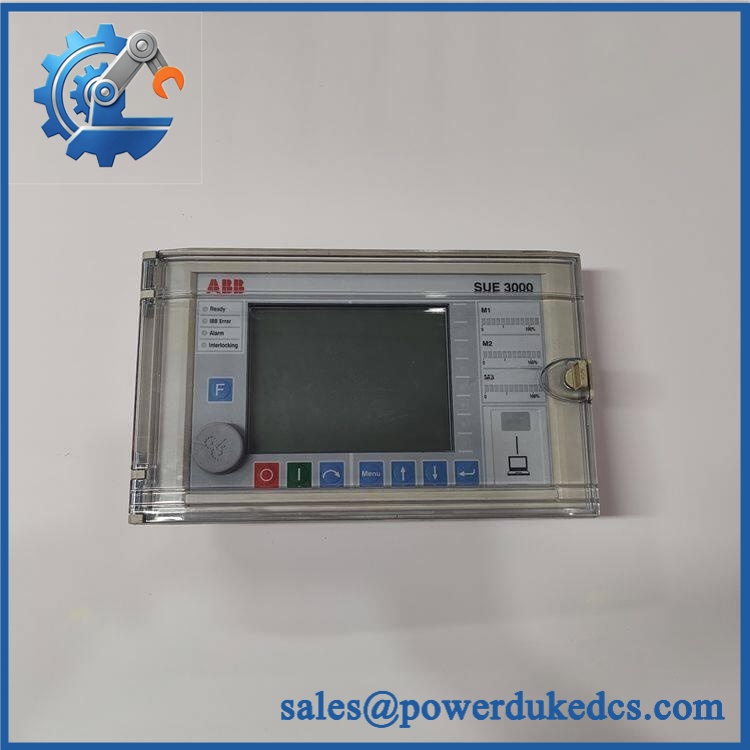

• Brand / Model: ABB SUE3000, 1VCR007346 G0032
• Asset identity: This part number is consistently identified in available supplier records as an SUE3000 HMI / control-panel unit associated with the SUE3000 High Speed Transfer Device.
• Physical dimensions: Approximately 220 × 150 × 65 mm (W × H × D) based on available technical listings. Treat this as an engineering reference, not a certified dimensional drawing.
• Estimated net weight: Approximately 0.45 kg for the HMI unit. Other listings report approximately 0.4–1.0 kg, so use the actual packed weight for freight documentation.
• Estimated shipping weight: 0.9–1.5 kg when protected with ESD material, cushioning, carton, and documentation (estimate only).
• What’s in the box: HMI/control-panel unit; protective packaging. Do not assume terminal blocks, cables, mounting hardware, or an original manual are included unless they are physically verified against the supplier’s packing list.
• Physical handling: Protect the display/front panel and rear electrical connectors from impact. Keep the unit in its ESD protective packaging until installation.

Product Introduction

The ABB SUE3000 1VCR007346 G0032 belongs to the operator-interface portion of the SUE3000 High Speed Transfer Device architecture. The SUE3000 itself is built around ABB’s REF542plus-based control platform, with the HMI providing local access to operating status, transfer functions, configuration, diagnostics, and recorded events. ABB’s documentation describes the system as a high-speed transfer device intended to maintain supply to critical loads when the normal electrical source is disturbed.

Treat the HMI as a configuration-specific spare, not as a generic touchscreen replacement. The exact G0032 suffix matters (—particularly when maintaining an installed REF542plus/ assembly). Available technical records identify cabinet-panel embedded mounting, RS-232/RS-485 and Ethernet interfaces, and a 48–220 VDC supply range for this HMI variant.

Core Technical Specifications

ABB SUE3000 1VCR007346 G0032

The operating manual confirms that the broader system is based on the REF542plus multifunction protection and control platform and uses a microprocessor/DSP architecture. Do not transfer memory specifications from unrelated modern HMI products to this legacy part number.

Global Compliance & Industry Certifications

For an industrial control-panel component of this type, the compliance file should be evaluated against the actual ABB product documentation, nameplate, serial/date code, and installation configuration.

• CE Mark: Expected for applicable European-market equipment, but verify the marking on the actual unit and its associated declaration.
• UL/cUL: May apply to specific product configurations or market variants. Do not mark the asset as UL Listed based solely on the generic family name.
• ATEX / IECEx: Do not assume hazardous-area approval. The HMI itself should be checked against its exact certification documentation before deployment in a classified area.
• Marine approvals: DNV GL or other marine approvals should be treated as configuration-specific rather than assumed.
• EMC / electrical safety: Verify the applicable ABB declaration and installation requirements before putting the unit into a regulated control cabinet.
• Export documentation: Preserve the exact part number, serial number, country of origin, commercial description, and declared customs classification together.

For plant safety, certification scope matters because an approval attached to the complete system does not automatically mean every replacement HMI has independent hazardous-area certification.

Verify specific lot certifications with OEM.

Long-Term Storage & Asset Preservation Guide

1. Keep the HMI inside its original ESD shielding bag. Do not leave the rear connector area exposed on a warehouse shelf. Static discharge and contamination at the connector interface are avoidable failure modes.
2. Control humidity and condensation. Store the unit in a clean, dry indoor environment; keeping relative humidity below approximately 60% RH is a sensible warehouse target. Avoid rapid transitions from cold storage into a warm, humid installation area (condensation can form behind the front panel and around connector contacts).
3. Inspect the date code and packaging periodically. For a legacy electronic assembly, inspect the anti-static bag, carton, front-panel membrane/display, connector condition, and evidence of corrosion at least annually. Do not automatically perform capacitor reforming or battery removal unless the exact assembly documentation confirms those components are present and the applicable maintenance procedure requires it.

Physical Installation Prerequisites

• Mounting: Available documentation identifies the G0032 unit as a cabinet-panel embedded HMI, rather than a conventional DIN-rail I/O module.
• Panel clearance: Confirm the actual panel cutout and rear-depth requirement from the installation drawing before machining the cabinet.
• Cooling: The HMI has relatively low reported power dissipation (≤6 W), but do not obstruct the rear enclosure or cable interface. Maintain cabinet airflow around adjacent heat-producing equipment.
• Grounding: Bond the applicable cabinet/panel grounding point in accordance with ABB’s installation instructions and the site’s protective-earth scheme.
• ESD: Use an ESD wrist strap and grounded work surface when handling the exposed electronics.
• Cabling: Verify RS-232, isolated RS-485, Ethernet, and DC supply wiring against the project-specific wiring diagram. Never infer terminal assignments from another REF542plus variant.
• Commissioning: Record the existing configuration before replacing the HMI. A physically identical spare can still create commissioning problems if its configuration or firmware state differs.

Buyer’s FAQ

Q: What HS tariff code should be used for international shipment?
A: Do not treat 8538.90 or a similar code as universally correct. The appropriate HS classification depends on the HMI’s functional description and the importing country’s tariff schedule. One commercial listing assigns HS 8538900000, but that is a supplier-declared classification, not an authoritative customs ruling. Obtain your broker’s classification confirmation before issuing the commercial invoice.

Q: Why does the COO matter if the part is an ABB spare?
A: Country of Origin is a customs attribute, not simply the brand’s nationality. Supplier listings for this exact part conflict on origin, with one claiming Sweden and another claiming Switzerland/USA-related information. Therefore, use the actual OEM label, supplier COO, and supporting manufacturing documentation rather than copying an origin from an online listing.

Q: Should I insure a 0.45 kg HMI separately during shipment?
A: Yes, when the replacement value is material. Weight does not determine cargo risk. Protect the front display, connector assembly, and enclosure with ESD packaging plus shock-absorbing material, and photograph the unit and packaging before dispatch.

Q: Does a replacement arrive with the latest firmware already loaded?
A: Do not assume so. Firmware/configuration status is not established by the part number alone. For a legacy /REF542plus asset, record the installed firmware/configuration before replacement and obtain the replacement unit’s firmware revision from the supplier or OEM documentation. This is particularly important because ABB has issued security guidance covering and firmware/configuration protection.

Asset-control recommendation: For warehouse records, identify this item as ABB HMI / REF542plus-associated HMI, P/N 1VCR007346 , and retain the serial number, date code, physical condition, COO evidence, certification evidence, firmware/configuration revision, and packing weight as separate inventory fields.
