ABB UAC318AE HIEE300744R0001 | OEM Module Fast Shipping

Description

Module 2: The 10-Second Procurement Snapshot

• Brand: ABB
• Full Model Number: UAC318AE HIEE300744R0001
• Lifecycle Status: Legacy; lifecycle status should be confirmed with ABB
• Core Function: Industrial control and signal processing
• Product Type: Control / Interface Module
• Top 3 Technical Specs: 24 VDC supply; RS-485 interface reported; Ethernet interface reported
• System Association: ABB industrial control / excitation applications; verify exact system before ordering
• Operating Temperature: Reported -20°C to +60°C
• Protection: Reported IP20
• Stock & Condition: New Surplus / Tested Stock; physical stock confirmation required

Important identification note: Public supplier records disagree on the exact function of this part. Some identify UAC318AE as a controller or measuring interface, while others describe it as a digital I/O module or excitation control board. The supplied HIEE300744R0001 identifier should therefore be matched against the physical ABB nameplate and original system documentation before purchase.

Module 3: Supply Chain & Technical Deep Dive

For a legacy ABB installation, the main sourcing problem is often identification rather than simple availability. UAC318AE appears in multiple aftermarket technical records under different functional descriptions, including controller, interface, and excitation-system hardware. That makes the complete identifier UAC318AE HIEE300744R0001 particularly important when preparing a replacement quotation. Do not approve a substitute based on the short model alone.

Reported specifications include 24 VDC input, RS-485 and Ethernet communication interfaces, and an operating range around -20°C to +60°C. However, these values are not consistently reported across independent technical sources. For TCO planning, the safer approach is to use the exact hardware revision and ABB documentation tied to the installed system rather than treating every online specification as authoritative.

Module 4: Migration, Compatibility & Field Traps

Replacement Matrix

⚠️ Field Traps

1. Function mismatch is the biggest procurement risk.

Current public records describe this identifier inconsistently. One source calls it a processor/control board for UNITROL systems, while another lists it as a measuring interface. A separate listing describes it as a digital I/O device.

Before ordering, send a clear photograph of the nameplate and PCB label.

2. Do not assume 24 VDC from a generic listing.

Several sources report 24 VDC, but the exact electrical specification should be confirmed against the installed cabinet documentation. Measure the existing supply before replacement.

3. Communication ports need verification.

Some records list RS-485 and Ethernet, while other descriptions do not provide a consistent interface specification. Confirm connector type, protocol, addressing, and cable pinout before commissioning.

4. ESD protection is mandatory.

Disconnect power before removal. Use an ESD wrist strap and antistatic work surface when handling the PCB.

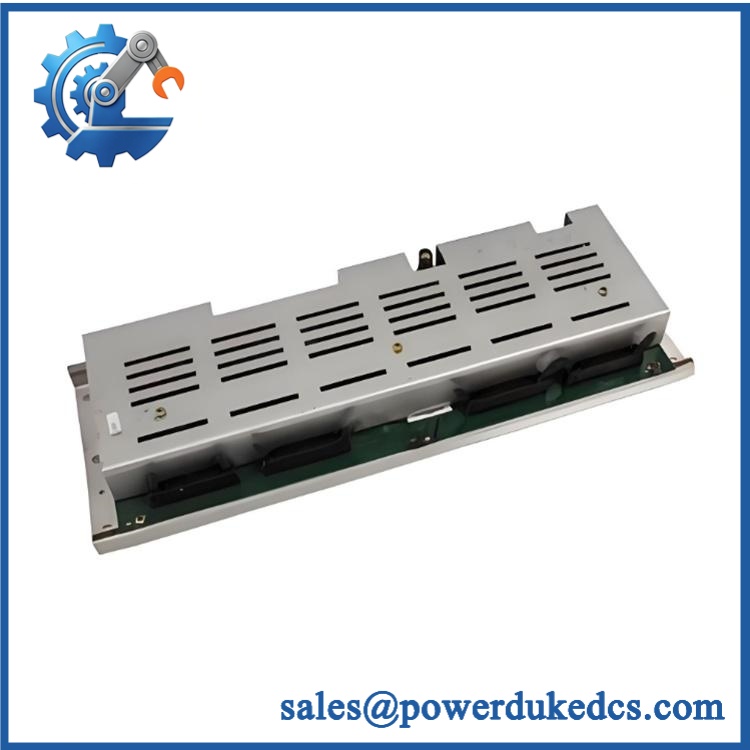

ABB UAC318AE HIEE300744R0001

Module 5: Quality Assurance & Testing SOP

A legacy control board should not be classified as tested merely because it powers up. The pre-shipment procedure should establish identity, electrical condition, communication behavior, and application suitability.

1. OEM Identity Inspection

• Verify
• Verify HIEE300744R0001
• Record serial number
• Record hardware revision
• Photograph the complete nameplate
• Perform OEM anti-counterfeit visual inspection
• Check for corrosion, oxidation, scratches, burn marks, or repair traces
• Inspect connectors and PCB condition

2. Configuration Inspection

• Photograph DIP switches, jumpers, and selectors where fitted
• Record connector positions
• Record existing configuration labels
• Compare the board against an approved reference
• Confirm the physical board revision

3. Electrical Pre-Test

• Verify supply input according to the applicable ABB documentation.
• Check for obvious short circuits.
• Inspect power-input components.
• Check connector continuity where appropriate.
• Record measured values in the Test Report.

Do not apply an arbitrary insulation or high-voltage test to sensitive electronics. Use the OEM-approved procedure.

4. Power-On Test

Install the unit in a suitable ABB test environment.

• Apply controlled power.
• Observe startup behavior.
• Check available RUN/ERR/diagnostic indications.
• Monitor current draw.
• Check for abnormal temperature rise.
• Record the startup condition.

5. Communication / Functional Test

Where the correct test fixture is available:

1. Connect the applicable communication interface.
2. Verify physical link status.
3. Establish communication with the test controller.
4. Read module identification.
5. Confirm expected data exchange.
6. Monitor communication stability.

If the module belongs to an excitation-system application, the test should use an appropriate ABB excitation-system simulation or approved service fixture, not a generic PLC rack.

6. Extended Observation

• Run the unit under controlled conditions.
• Monitor diagnostic status.
• Check for intermittent communication.
• Record operating temperature.
• Save test measurements.
• Generate a serial-number-linked Test Report.

7. Final QC and Packaging

• QC technician signs the inspection record.
• Photograph the tested unit.
• Seal in an ESD-safe bag.
• Protect connectors with suitable cushioning.
• Use a rigid carton.
• Apply QC Passed identification and test date.

Test photographs and the inspection report can be provided for procurement review.

Module 6: Procurement-Driven FAQ

1. Is ABB HIEE300744R0001 physically in stock?

Availability must be confirmed against the actual warehouse unit before order release. Public supplier records currently show conflicting availability information, ranging from listed stock to estimated 4–6 week lead time.

For an urgent shutdown, request the actual unit photograph, complete nameplate, condition, serial number, test status, and confirmed dispatch date.

2. How do you verify the condition of a surplus unit?

Use a serial-number-controlled inspection process:

• Nameplate verification
• PCB inspection
• Connector inspection
• Electrical pre-test
• Controlled power-on
• Communication test where applicable
• Extended observation
• Final QC inspection

New Surplus and Tested Refurbished should never be treated as the same condition. State the actual condition on the quotation.

3. What warranty should I require for this legacy ABB module?

Specify the warranty period in writing before purchase. The serial number should be recorded on the sales documentation and Test Report.

For critical control equipment, also clarify whether the warranty covers DOA units, functional failure after installation, incorrect model shipment, and return freight.

4. Are there firmware compatibility issues?

Potentially. The bigger concern is that public documentation does not establish one universally applicable firmware/configuration profile for every application.

Before replacement, record the existing hardware revision, firmware/software identification, communication settings, and configuration switches. Then compare them with the replacement unit before energizing the cabinet.

5. Why should I provide the complete HIEE part number instead of only ?

Because public records associate with several different functional descriptions. The complete identifier materially reduces the risk of quoting the wrong hardware.

For procurement approval, provide the full part number, nameplate photograph, installed system/drive/excitation-system model, and PCB revision. That is the minimum practical data set for a safe replacement check.
