Description
- Model: UAC389
- ABB Part Number: HIEE410506P104
- Part Type: Processor / CPU Module
- Application: Legacy ABB industrial control architecture
- System Compatibility: Associated with ABB Advant/MOD 300 platforms according to available product references.
- Lifecycle: Legacy spare-part application; verify the exact installed hardware revision before replacement.
Technical Introduction
A failed processor board in a legacy DCS can turn a routine maintenance job into an extended outage if the correct hardware is not already available.
The ABB UAC389 HIEE410506P104 is identified in available technical references as a processor module used in ABB legacy control systems. Its role is centered on executing the control application and coordinating system-level processing rather than providing direct field I/O. That makes the board a system-level spare: compatibility depends on the host architecture, installed revision, application configuration, and the specific rack or controller arrangement. References associate the UAC389 with ABB Advant/MOD 300 systems, but the exact replacement should be confirmed against the existing board markings and system documentation before a swap.
Best Suited For
- Planned replacement-stock coverage for legacy ABB DCS installations
- Emergency replacement of a failed UAC389 processor board
- Legacy-system maintenance where migration to a newer control platform is not yet scheduled

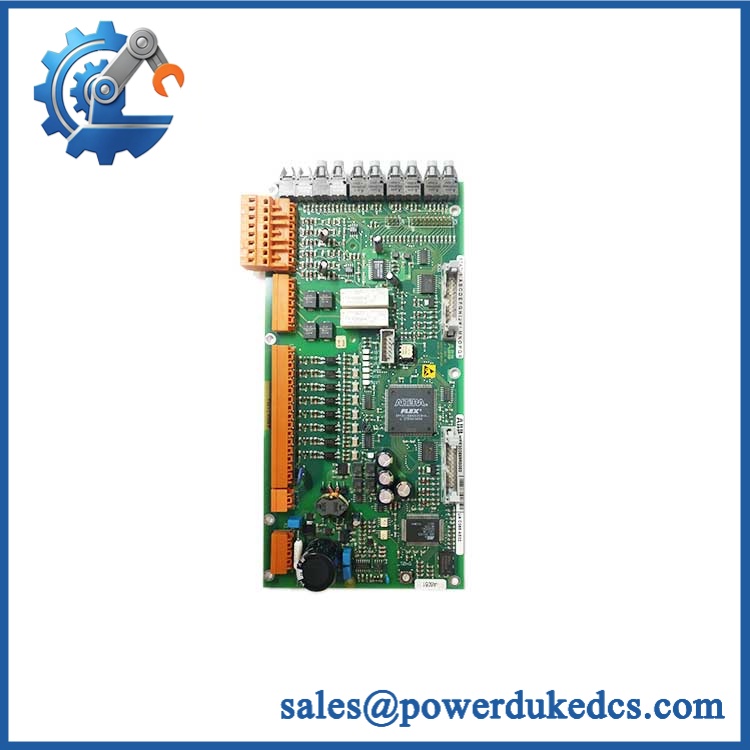

ABB UAC389 HIEE410506P104
Core Technical Specifications
- Manufacturer: ABB
- Model: UAC389
- Part Number: HIEE410506P104
- Product Type: Processor Module / CPU Board
- Application: Industrial automation control
- System Association: ABB Advant / MOD 300 legacy control platforms
- Form Factor: Proprietary control-system module / board
- Configuration: Verify firmware, application configuration, hardware revision, and host rack compatibility before installation.
Please refer to the OEM datasheet and site documentation for complete electrical, environmental, dimensional, and installation tolerances. Published third-party listings contain conflicting technical descriptions for this part, so unverified voltage, memory, temperature, and interface figures should not be used for procurement or installation decisions.
Field Engineer’s Tech Notes
1. Do not treat the part number alone as a complete compatibility check.
For a processor board, the installed system revision matters. Record the existing UAC389 identification, board revision, firmware/application information, rack position, and configuration before removing the failed unit. A physically identical board is not automatically a drop-in replacement if the loaded software or system revision differs.
2. Handle it as an ESD-sensitive control board.
Power down according to the site’s approved maintenance procedure, isolate the rack as required, and use proper ESD controls during removal and installation. Before returning the system to service, verify processor diagnostics and communication status rather than assuming a successful power-up means the controller is ready.
Adaptive QA & Testing Protocol
For a processor module, testing focuses on controller behavior rather than field-signal simulation.
Our inspection process includes visual examination of the PCB and connectors, part-number and revision verification, power-up diagnostics where the appropriate test environment is available, processor status/LED verification, and communication checks against the applicable host architecture. Where system access permits, the module is checked for normal initialization and controller communication before release.
Test reports, inspection records, and available test videos can be provided upon request. For legacy processor boards, buyers should provide the installed system type and board revision when possible so compatibility can be reviewed before shipment.

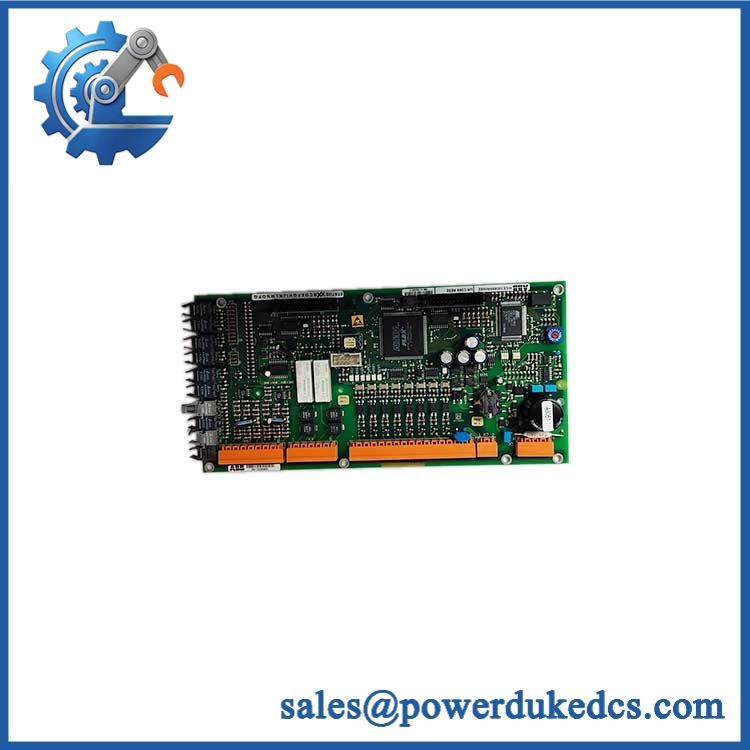

ABB UAC389 HIEE410506P104
Buyer’s FAQ
Is the ABB HIEE410506P104 a CPU or I/O module?
It is identified as a processor module / CPU board, rather than a conventional analog or digital I/O module. Its function is associated with system processing and control execution.
Can this replace another directly?
Potentially, but direct replacement should be confirmed against the existing hardware revision, system architecture, firmware/application configuration, and rack arrangement. Do not approve a replacement solely from the designation.
Is the unit available as New Surplus or refurbished?
Condition should be confirmed against the specific inventory unit before purchase. For refurbished stock, request the inspection or functional-test documentation; for New Surplus (NSFP), confirm packaging, storage history, and physical condition.
What warranty and shipping lead time are available?
Warranty and lead time depend on the actual stock condition and order quantity. Confirm these commercial terms with the supplier before issuing the purchase order, particularly for an outage-driven requirement.
