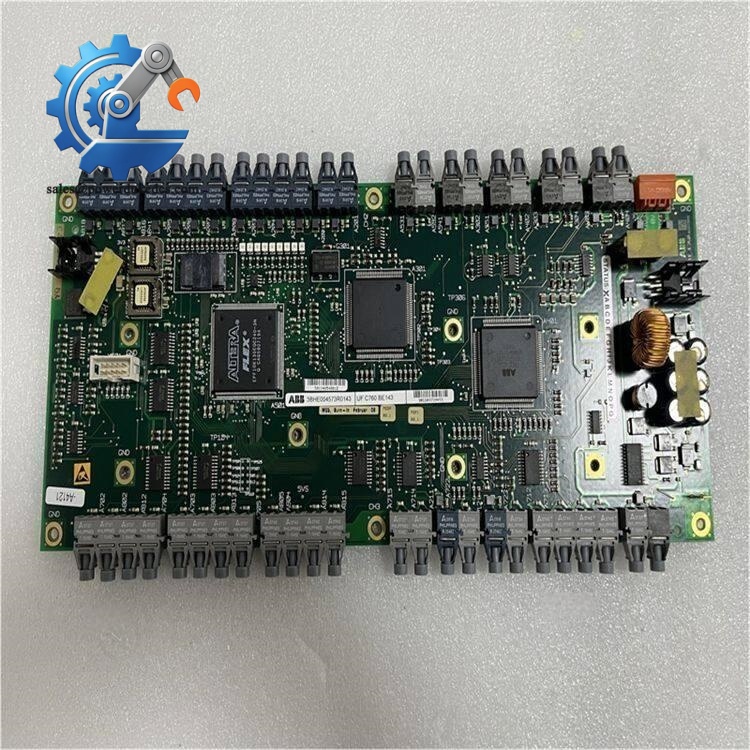

ABB UFC760BE143 3BHE004573R0143 Excitation Control Processor Board
SEO Titles
1. ABB UFC760BE143 3BHE004573R0143 | Generator Excitation Control Processor Board, In Stock
2. ABB 3BHE004573R0143 | High-Speed DSP Turbine Regulation PCB with 1ms SOE Resolution
3. UFC760BE143 ABB | New Surplus Power Plant Spare Part, 12-Month Warranty
4. ABB UFC760BE143 | Direct Replacement Mainboard for Thermal & Hydro Excitation Cabinets
5. ABB UFC Series Control Board | On-Site Buffer Stock for Critical Power Generation MRO
Product Core Brief
- Model: UFC760BE143
- Part Number: 3BHE004573R0143
- Brand: ABB
- Series: UFC Power Generation Control Series
- Core Function: Executes closed-loop excitation regulation and turbine logic control for generators
- Type: DSP-based Main Control PCB Board
- Key Specs: <1 ms SOE event resolution, 10 ms redundant switching, 24 V DC operation
- Condition: New Surplus, non-refurbished, fully bench tested
⚠️ Discontinued legacy critical power control board. Long OEM lead times increase unplanned outage risks. Strategic buffer stock is recommended for operational reliability.
Product Introduction
For power plant maintenance teams, failed main control PCBs rank among the most disruptive faults for generator excitation systems. The ABB UFC760BE143 3BHE004573R0143 acts as the core processing unit for mainstream ABB excitation and turbine control cabinets deployed in thermal and hydropower units.
This board integrates high-speed DSP chips to acquire real-time voltage, current and frequency signals. It outputs precise regulation commands to stabilize generator terminal voltage and execute system interlock protection logic. With event resolution under 1 ms and redundant switching speed within 10 ms, it delivers stable closed-loop control under variable load conditions. Field data verifies it effectively suppresses voltage oscillation and accidental tripping caused by aging control hardware. Note that hardware and firmware are not interchangeable with BE141 or BE142 variants.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Full Part Number | / 3BHE004573R0143 |
| Operating Voltage | 24 V DC |
| Core Processor | High-speed DSP real-time processing chip |
| SOE Event Resolution | < 1 ms |
| Redundant Switching Time | ≤ 10 ms |
| Communication Protocol | Internal backplane bus, fieldbus compatible |
| Operating Temperature | -20 °C ~ +60 °C |
| Relative Humidity | 5% – 95% RH, non-condensing |
| Insulation Resistance | > 10 MΩ (500 V DC test) |
| Protection Class | IP20 (indoor cabinet installation) |
| Application | Generator excitation control, turbine regulation system |
Transparent QC & Testing SOP
Every stocked unit undergoes standardized multi-stage testing to eliminate hidden risks of surplus industrial spare parts.
1. Warehouse Incoming Verification
We verify original factory packing documents and serial number traceability records. Full visual inspection confirms no PCB corrosion, component aging, scratch damage or unauthorized soldering. Complete accessory and label integrity is double-checked before warehousing.
2. Live Bench Functional Testing
Testing is conducted on a dedicated ABB power control simulation bench. Complete power-on self-test verifies LED initialization and chip operational status. We simulate full-range generator signal input to validate excitation regulation response and logic interlock functions. Continuous 24-hour aging testing monitors temperature rise and operational stability. All communication handshake procedures are fully verified.
3. Electrical Performance Testing
A Fluke 115 multimeter is used for 500 V DC insulation resistance testing. We complete continuity checks for all terminal circuits and anti-surge performance verification. No short-circuit or open-circuit defects are allowed for qualified units.
4. Firmware & Configuration Verification
Original factory firmware version is read and recorded. No unauthorized firmware flashing is performed to ensure compatibility with legacy field systems. We capture default configuration backups for customer reference.
5. Final QC & Packaging
Qualified boards are sealed in anti-static bags with shockproof bubble packaging. Official QC Passed labels with test dates are attached. Test photos and videos can be provided for customer review before shipment.
Installation & Commissioning Guide
Pre-Installation Preparation (20 mins)
⚠️ Strict power-off safety procedures are mandatory
Arrange unit shutdown and lockout-tagout procedures. Cut off all cabinet control power and wait 15 minutes for full capacitor discharge. Back up all excitation system parameters and logic programs to local and cloud storage.
Prepare ESD wrist strap, PH1 screwdriver, digital multimeter and mobile phone for full wiring and configuration photo recording.
Old Board Removal (15 mins)
Capture clear photos of all signal terminals, power wiring and backplane insertion status before disconnection. Disconnect low-power signal cables first, then power terminals. Release fixing screws and pull the board vertically outward to avoid bent backplane pins.
Clean backplane connectors with dry compressed air to remove dust and oxidation. Retain all original wiring labels for reinstallation reference.
New Board Installation (20 mins)
Complete ESD protection before unpacking. Confirm full part number 3BHE004573R0143 matches site requirements exactly. Align the board with the backplane slot and insert vertically, then fasten fixing screws evenly.
Restore all wiring strictly per recorded photos. Verify terminal tightness to avoid poor contact during long-term operation.
Pre-power checklist: No loose wire strands; all terminals secured; board fully locked in place; no foreign objects inside the cabinet.
Power-On & Functional Commissioning (40 mins)
Measure 24 V DC supply voltage and confirm no short-circuit risks. Restore control power and observe board LED startup sequence. Connect upper computer software to verify normal communication and hardware identification.
Import backup parameter files and calibrate excitation regulation thresholds. Conduct no-load simulation tests to validate voltage adjustment and fault alarm logic. Run 60-minute continuous stable operation with no system alarms.
Record board serial number and replacement date in plant maintenance logs after commissioning completion.

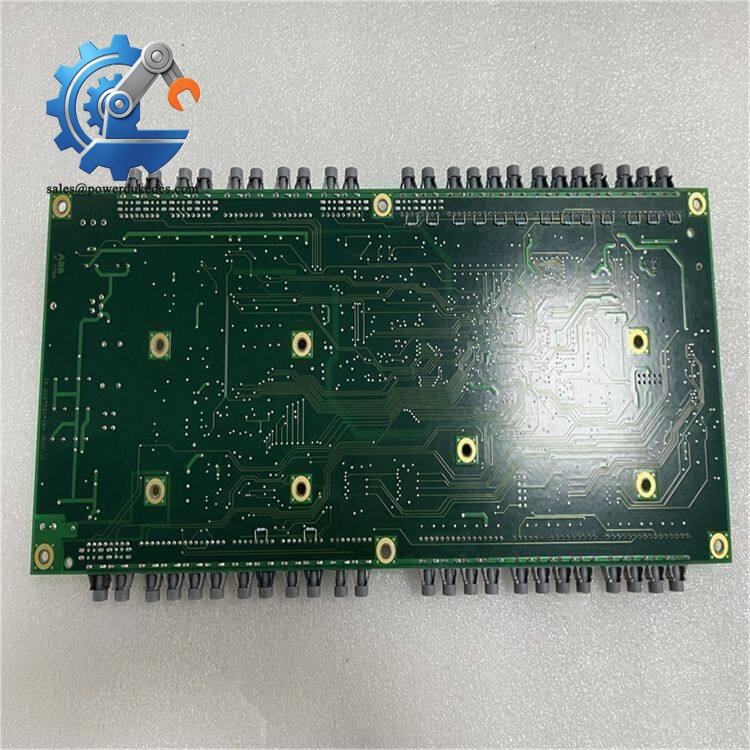

ABB UFC760BE143 3BHE004573R0143
Field Replacement Pitfall Guide (Engineer Practical Experience)
1. Interchange Misuse of Similar Model Boards
UFC760BE141, BE142 and BE143 share identical appearance but differ in hardware pin definition and underlying firmware. On-site replacement with mismatched models causes total communication failure and disordered excitation regulation.
Field Case: One hydropower station replaced the board without checking the full part number, resulting in 2 hours of unit startup delay.
Solution: Verify the complete part number 3BHE004573R0143 during ordering and incoming inspection.
2. Unprotected ESD Operation Damage
The onboard DSP and signal sampling chips are extremely static-sensitive. Dry winter environments greatly increase hidden static damage risks. Damaged boards may run normally in no-load status but trigger random faults under load.
Solution: Mandate ESD wrist strap and anti-static mat operation for all board disassembly and installation work.
3. Missing Parameter Backup Before Replacement
New boards load factory default parameters. Direct power-on without parameter import leads to mismatched regulation setpoints, causing generator voltage oscillation and protection tripping.
Solution: Export and back up all operational parameters before removing the original board.
4. Bent Backplane Pin Contact Faults
Tilted insertion during board replacement easily bends backplane pins, leading to intermittent poor contact. Such faults are hard to reproduce and diagnose during daily operation.
Solution: Keep horizontal force during plugging; clean backplane pins regularly to prevent oxidation.
5. Signal Wiring Polarity Reversal
Reversed analog signal wiring distorts voltage and current sampling data. The excitation system executes continuous misadjustment and cannot maintain stable generator output.
Solution: Mark wiring polarity during removal and verify with a multimeter before power-on.
Frequently Asked Questions (FAQ)
Q: Does support hot-swap replacement?
A: Hot swap is prohibited. Live removal interrupts core excitation control logic and triggers immediate system tripping. Full cabinet power-off and capacitor discharge are required for safe replacement.
Q: Can I directly import old parameter files to a new board?
A: Same firmware versions support direct parameter import. Minor version gaps require manual verification of regulation thresholds and protection parameters to avoid logic deviation.
Q: What symptoms confirm a faulty board?
A: Typical faults include unlit power indicators, upper computer communication loss, no excitation regulation response, frequent false sampling faults, and unstable generator voltage output.
Q: What is the optimal stocking strategy for this part?
A: Classified as critical slow-moving power plant spare part. Maintain 1 unit of on-site buffer stock per power station to offset long OEM lead times. Adopt vendor consignment inventory to reduce capital carrying costs and avoid obsolescence risks.
Q: What conditions void the product warranty?
A: Warranty excludes damage from reverse wiring, overvoltage surge, condensation moisture, unauthorized disassembly or soldering, static discharge without ESD protection, and physical extrusion damage. All units pass full bench testing before delivery.
