ABB UNITROL1000 3BHE014557R0006 | AVR with Synchronizing RDM

• Brand: ABB
• Full Model Number: UNITROL 1000-15 V4
• ABB Part Number: 3BHE014557R0006
• Configuration: Synchronizing + RDM
• Lifecycle Status: Legacy UNITROL 1000 generation; current ABB portfolio centers on newer UNITROL 1000-series variants
• Core Function in System: Automatic voltage regulation and excitation control for synchronous generators and motors
• Top 3 Hardcore Specs: 15 A maximum continuous excitation current; 0–60 °C operating range; 25 W maximum auxiliary power consumption
• Excitation Overload: 30 A DC for up to 10 s; 20 A DC for up to 4 min
• Measurement Frequency: 10–100 Hz
• Protection Class: IP20
• Dimensions: 245 × 190 × 142 mm
• Weight: 5 kg
• Condition & Lead Time: Replacement stock subject to hardware, firmware, and configuration verification; emergency dispatch based on confirmed inventory

ABB’s UNITROL 1000-15 Version 4 ordering information identifies 3BHE014557R0006 as the version with synchronizing and reactive droop compensation (RDM). The documented unit has a maximum continuous excitation current of 15 A, with operating temperature from 0 to 60 °C.

Module 3: Technical Intro & Downtime Impact

A failed AVR can prevent a synchronous generator from building or maintaining the required terminal voltage, turning a control failure into a generator availability problem. ABB UNITROL 1000-15 V4, 3BHE014557R0006 is an automatic voltage regulator configuration that adds both synchronizing and RDM functionality. The UNITROL 1000 family is designed for synchronous generators and motors, with the legacy V4 platform supporting excitation currents up to 15 A.

For MTTR planning, the exact electrical limits are useful: 15 A continuous excitation current, 30 A DC for 10 seconds, 20 A DC for 4 minutes, 25 W maximum auxiliary power consumption, and a 0–60 °C operating range. The unit is approximately 245 × 190 × 142 mm and weighs 5 kg. Because 3BHE014557R0006 is a specific configuration with synchronizing and RDM, a replacement should retain the same functionality and parameter set rather than being substituted with a standard UNITROL 1000 configuration.

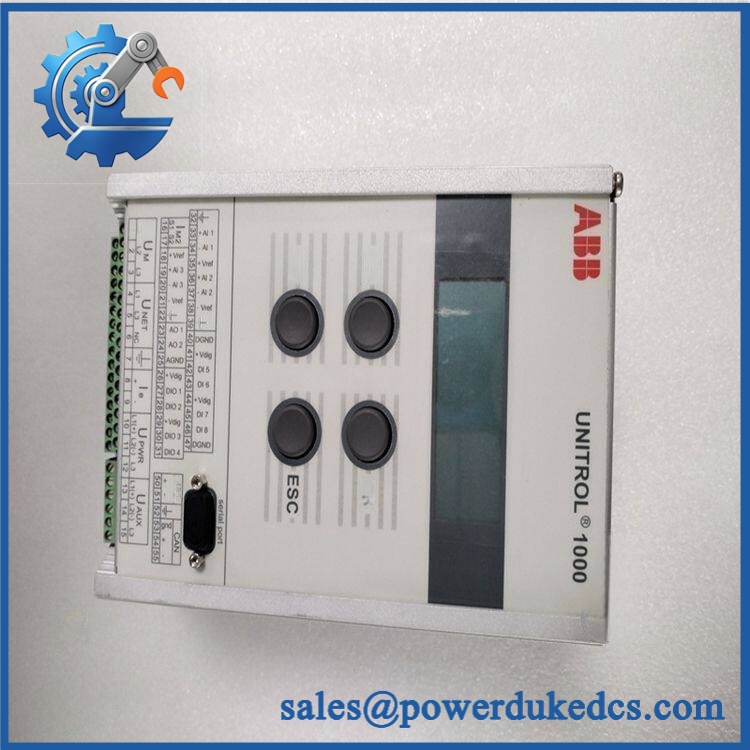

ABB UNITROL1000 3BHE014557R0006

Module 4: Dynamic Emergency Swap & Configuration Guide

1. Pre-Swap Prep — Capture the excitation configuration

• Place the generator excitation system in the approved maintenance state.
• Apply site lockout/tagout to the regulator and associated excitation circuits.
• Verify auxiliary and power-electronics supplies are isolated.
• Record UNITROL 1000-15 V4 / 3BHE014557R0006.
• Record hardware revision, firmware revision, and serial number.
• Back up the complete CMT 1000 parameter file.
• Photograph terminal wiring, control connections, synchronization inputs, and front-panel settings.
• Record RDM settings and voltage-control parameters.
• Use ESD protection when handling the AVR.

ABB’s UNITROL 1000 documentation states that the system engineering process produces a parameter file for UNITROL 1000, while the documented delivery for the V4 unit includes CMT 1000 software, an RS-232 cable, and the user manual.

2. Removal — Disconnect the AVR systematically

• Confirm the regulator and connected excitation circuits are electrically safe.
• Label every conductor before removal.
• Disconnect measurement, auxiliary-supply, control, synchronizing, and communication connections.
• Release the mounting hardware securing the AVR in the cabinet.
• Remove the controller without stressing terminal blocks or wiring.
• Protect exposed connectors against contamination and ESD.
• Inspect the surrounding wiring for heat damage, loose terminals, or insulation degradation.

3. Installation & Configuration — Preserve the synchronizing/RDM build

• Verify ABB UNITROL 1000-15 V4 / 3BHE014557R0006 before installation.
• Confirm the replacement retains the Synchronizing + RDM configuration.
• Install the AVR in the original mounting position.
• Reconnect every conductor according to the original wiring record.
• Restore the backed-up parameter file using the approved CMT 1000 procedure.
• Verify generator-voltage sensing and field-current feedback scaling.
• Check AVR reference, limiters, protection thresholds, and RDM parameters.
• Verify synchronizing inputs and associated logic.
• Confirm any configured communication interface and address settings.
• Do not substitute the standard 3BHE014557R0003 configuration for 3BHE014557R0006 without engineering approval. ABB lists R0003 as standard equipment and R0006 as the version with synchronizing and RDM.

4. Power-On Self-Test (POST) — Validate regulation before loading

• Restore auxiliary power using the approved commissioning sequence.
• Observe the front-panel status and diagnostic indications.
• Confirm normal startup without persistent fault indications.
• Verify generator-voltage measurement.
• Verify field-current measurement.
• Confirm synchronizing-related inputs and status.
• Check RDM operation against the stored configuration.
• Test AVR response at the permitted commissioning condition.
• Verify voltage, reactive-power, or power-factor control as applicable.
• Confirm limiter and protection functions.
• Perform controlled generator loading before returning to normal operation.

The legacy UNITROL 1000 platform uses dedicated CMT 1000 commissioning software and supports AVR, reactive-power, power-factor, and related excitation-control functions. Exact parameter names and diagnostics depend on the installed software revision.

Module 5: Quality Assurance & Testing SOP

The 3BHE014557R0006 configuration should be tested as a complete excitation controller, with special attention to synchronizing and RDM functions.

1. OEM identity verification

• Verify ABB
• Verify UNITROL 1000-15 V4
• Verify 3BHE014557R0006
• Confirm Synchronizing + RDM configuration
• Compare nameplate, hardware revision, terminal arrangement, and enclosure markings
• Perform OEM anti-counterfeit visual inspection
• Photograph all identification markings

2. Physical inspection

• Inspect enclosure for cracks, deformation, corrosion, and contamination
• Check terminal blocks and connector housings
• Inspect cooling openings and ventilation paths
• Check PCB areas for thermal discoloration or damaged components
• Verify mounting hardware
• Confirm approximate 245 × 190 × 142 mm dimensions where required
• Confirm approximately 5 kg net weight for inventory records

3. Electrical screening

• Verify auxiliary-supply input using the approved test procedure
• Check protective-earth continuity where applicable
• Verify measurement-input wiring
• Inspect terminal integrity
• Check excitation-output circuit interfaces
• Perform insulation testing only where explicitly permitted by the UNITROL 1000 service procedure
• Do not apply arbitrary hipot voltages to populated AVR electronics

4. Functional testing

• Apply approved auxiliary power
• Perform power-on self-test
• Check applicable status and alarm indications
• Verify generator-voltage measurement
• Verify field-current measurement
• Test AVR regulation response
• Test synchronizing functionality
• Test RDM functionality
• Verify under-excitation and over-excitation limiting where configured
• Verify excitation-current limits
• Test configured control modes
• Check communication functions where fitted
• Record firmware revision, parameter file, measured values, operating conditions, and final result

The documented V4 electrical data specifies 15 A maximum continuous excitation current, 30 A DC overload for 10 seconds, and 20 A DC overload for 4 minutes. Above 50 °C, the continuous excitation current is reduced by 1 A per degree, which should be considered during functional testing in warm cabinets.

5. Final QC release

• Independent QC sign-off
• Verified parameter backup retained
• ESD-safe packaging
• Connector and terminal protection
• Final cross-check of 3BHE014557R0006
• Confirm Synchronizing + RDM configuration
• Retain inspection photographs
• Retain functional-test report
• Release only after configuration and regulation checks pass

Module 6: Maintenance & Reliability FAQ

Q1. Is ABB UNITROL 1000 3BHE014557R0006 a direct drop-in replacement, or does it require a firmware flash?
Do not treat it as an unconditional drop-in replacement. 3BHE014557R0006 is specifically the UNITROL 1000-15 V4 version with Synchronizing and RDM, so the replacement must match the hardware, software, and parameter configuration of the failed unit. Firmware should only be changed when the applicable ABB documentation requires it.

Q2. Is it safe to hot-swap the UNITROL 1000 while the generator is running?
Do not assume live replacement is permitted. The AVR interfaces directly with generator measurement circuits and the excitation system. Unless the exact installation has an approved live-maintenance procedure, isolate the regulator and associated circuits before removal.

Q3. Will replacing the UNITROL 1000 cause my current program or configuration to be lost?
The critical information is the machine-specific CMT 1000 parameter file and associated settings. Back up AVR parameters, synchronizing settings, RDM values, limiters, measurement scaling, control references, and protection thresholds before removal. After installation, restore and verify those settings before enabling normal excitation control. ABB’s V4 documentation specifically identifies the CMT 1000 software and parameter file as part of the UNITROL 1000 engineering workflow.

Q4. What is special about 3BHE014557R0006 compared with other UNITROL 1000 versions?
ABB’s Version 4 ordering table distinguishes four UNITROL 1000-15 configurations: R0003 standard, R0004 with synchronizing, R0005 with RDM, and R0006 with synchronizing and RDM. Therefore, R0006 should not be replaced by a standard or single-function variant without checking the generator control design.

Q5. What should I verify before ordering a replacement?
Verify UNITROL 1000-15 V4, 3BHE014557R0006, hardware and firmware revisions, synchronizing configuration, RDM configuration, CMT 1000 parameter backup, auxiliary supply, excitation-current requirements, and terminal wiring. The documented unit supports 15 A continuous excitation current, with defined short-duration overload capabilities, so the replacement must also match the machine’s actual excitation requirements.
