ABB XVC722AE101 3BHB002751R0101 | OEM Fast Shipping Board

1. ABB XVC722AE101 3BHB002751R0101 OEM Fast Shipping Board

Module 2: The 10-Second Procurement Snapshot

• Brand: ABB
• Full Model Number: XVC722AE101
• ABB Part Number: 3BHB002751R0101
• Lifecycle Status: Legacy / availability-dependent
• Core Function: Voltage measurement and signal scaling
• Top 3 Technical Specs: SVA 4k16V; voltage measurement scaling; power-electronics control board
• Related Description: PC SVA-BOARD 4K16V 1AC XV C722 AE101
• Weight: Approx. 0.81 kg net; approx. 0.89 kg gross
• Stock & Condition: New Surplus / Tested Stock; confirm physical stock before order

Available records identify 3BHB002751R0101 as an ABB SVA-BOARD 4K16V 1AC XV C722 AE101 and describe the catalog function as VOLTAGE MEAS.SCAL. An independent engineering inventory record also lists the same part number as an SVA 4k16V voltage measurement scaling board.

Module 3: Supply Chain & Technical Deep Dive

A failed voltage-measurement board can stop a power converter even when the main controller and semiconductor stack remain serviceable. ABB XVC722AE101 is identified with the SVA 4k16V board designation and is associated with voltage measurement/scaling functions in ABB power-electronics equipment. That makes the exact board identification important when maintaining an older converter or drive installation.

From a TCO perspective, keeping one tested spare can be cheaper than waiting weeks for an obsolete board while a production drive remains unavailable. The available identification specifies 4k16V and a board weight of roughly 0.81 kg net, while the catalog description identifies it as a voltage measurement scaling board. Some online listings incorrectly classify the same part as a generic I/O, servo, or controller board, so those descriptions should not be used for engineering selection.

Module 4: Migration, Compatibility & Field Traps

Replacement Matrix

⚠️ Field Traps

1. Voltage-rating mismatch

The SVA 4k16V designation is part of the product identification. Do not substitute a visually similar measurement board simply because its connector fits. Voltage-scaling hardware is tied to the converter’s measurement circuit. Verify the schematic, board designation, and installed hardware revision before energizing.

2. Incorrect product classification

Several online records describe this part as an I/O module, servo module, or controller board. Those descriptions conflict with the more specific SVA-board identification.

Use the physical nameplate as the final procurement check.

3. ESD and connector damage

Handle the board with ESD protection. Do not touch exposed contacts. Before insertion, inspect the connector and backplane for contamination or bent contacts.

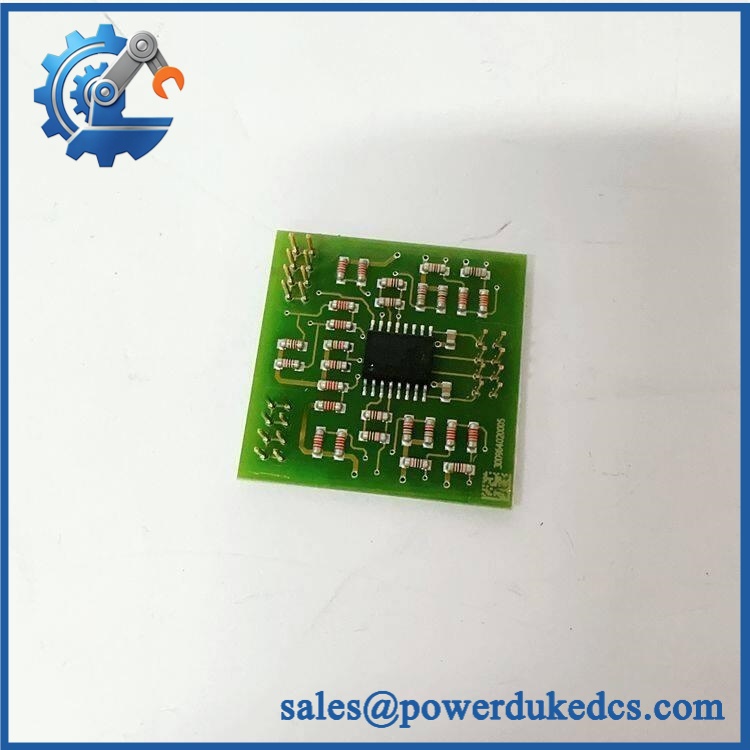

ABB XVC722AE101 3BHB002751R0101

Module 5: Quality Assurance & Testing SOP

For surplus inventory, the board should be treated as a controlled electronic spare rather than shipped solely on visual appearance.

1. Incoming Identity Check

• Verify XVC722AE101.
• Verify 3BHB002751R0101.
• Compare the nameplate with the purchase record.
• Record serial number and visible hardware revision.
• Perform OEM anti-counterfeit visual inspection.
• Check PCB condition and connector integrity.
• Look for corrosion, burn marks, scratches, rework evidence, and discoloration.

2. Mechanical Inspection

• Inspect mounting points.
• Check board alignment.
• Examine connectors under magnification where practical.
• Compare the board layout against the approved reference.
• Photograph the front and rear before testing.

3. Electrical Pre-Test

• Check for obvious shorts.
• Measure relevant resistance points according to the approved test procedure.
• Verify isolation where applicable.
• Do not apply arbitrary hipot voltage to semiconductor measurement circuitry.

4. Power-On Test

Use an approved ABB-compatible test environment.

• Apply the specified supply.
• Check power-up behavior.
• Observe RUN / ERR / diagnostic indicators, where fitted.
• Confirm that the board remains stable after startup.
• Check measurement-interface behavior using controlled test signals.

5. Functional Test

For the voltage measurement function:

1. Apply known test signals within the approved test range.
2. Record the corresponding scaled output.
3. Compare measured values with the test reference.
4. Check repeatability.
5. Monitor temperature during operation.
6. Record all readings in the Test Report.

No pass/fail result should be issued from appearance alone.

6. Final QC and Packaging

• QC technician signs the inspection record.
• Attach the serial number to the Test Report.
• Seal the board in an ESD-safe bag.
• Add shock-absorbing packaging.
• Use a rigid carton.
• Apply QC Passed identification and inspection date.
• Retain test photographs for customer review.

Testing documentation is particularly useful for legacy boards because replacement availability can be limited and field failure diagnosis is expensive.

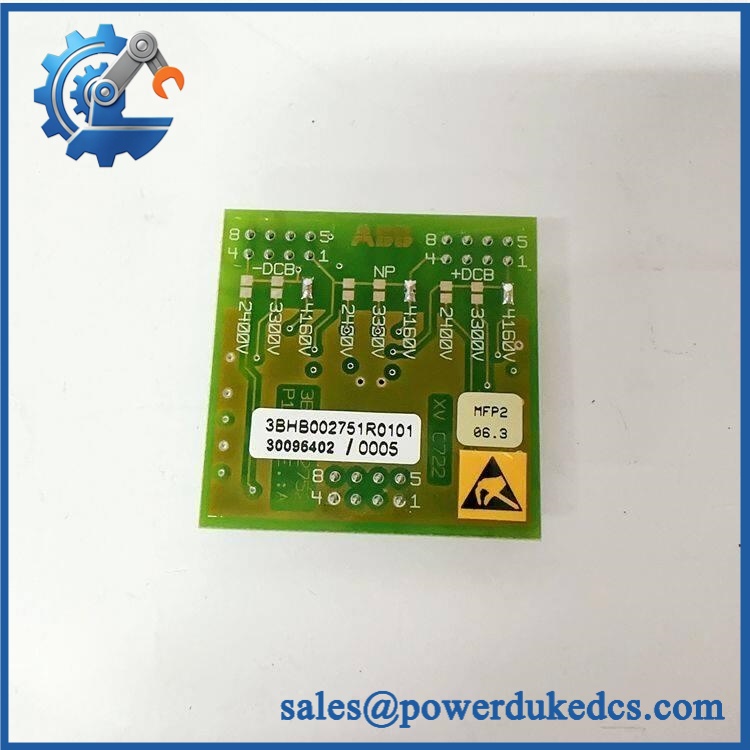

ABB XVC722AE101 3BHB002751R0101

Module 6: Procurement-Driven FAQ

1. Is ABB XVC722AE101 genuinely in stock, and can it ship immediately?

Availability must be confirmed against the physical warehouse unit before the purchase order is released. Current online records show the part offered as new stock, but those listings do not establish your supplier’s actual inventory position.

For urgent orders, request:

• Current stock photograph
• Part-number photograph
• Serial number or date code
• Test status
• Warehouse cutoff time
• Same-day or next-day dispatch commitment

2. How do you verify the condition of an obsolete or surplus board?

The unit should pass identity verification, visual inspection, connector inspection, electrical checks, and controlled power-on testing. For a tested board, request a serial-number-linked Test Report.

New Surplus, Never Used, and Refurbished should be treated as separate conditions. Do not accept a generic “new” description without confirming the physical condition.

3. What warranty should I request for this ABB board?

Specify the warranty period directly on the quotation and purchase order. The warranty should identify the supplied serial number and define the procedure for reporting a functional defect.

For electronic boards, exclusions commonly include incorrect wiring, overvoltage, ESD damage, physical modification, and installation outside the manufacturer’s specifications. Confirm the exact terms before purchase.

4. Are there firmware compatibility issues with XVC722AE101?

This is primarily a hardware measurement/scaling board, so firmware should not be treated as the first compatibility check. The more important questions are board revision, voltage-measurement configuration, converter model, connector arrangement, and system schematic.

Do not modify software or board configuration simply because the replacement has a different revision. Confirm the approved replacement relationship first.

5. Can another ABB voltage-measurement board replace it?

Not automatically. The SVA 4k16V identification indicates a specific voltage-measurement application, and the board must match the converter’s measurement circuit. Available records identify 3BHB002751R0101 specifically as the SVA board rather than a generic analog I/O module.

For procurement, provide the supplier with XVC722AE101 + 3BHB002751R0101 + a clear photograph of the installed board label. That gives engineering and purchasing teams the strongest basis for confirming the replacement before shipment.
