Description
- Model: XVC724BE102
- ABB Product ID: 3BHE009017R0102
- Part Type: VLSCD Board — Voltage Level Short Circuit Detection board
- Application: ABB medium-voltage drive spare part
- Product Designation: VLSCD-BOARD XV C724 BE102; SMD varnished
- Minimum Order Quantity: 1 piece
Technical Introduction
The ABB XVC724BE102 is a VLSCD board used for voltage-level short-circuit detection within ABB medium-voltage drive systems.
ABB identifies 3BHE009017R0102 as the VLSCD-BOARD XV C724 BE102, with the catalog description specifying an SMD-varnished board. ABB’s ACS2000 spare-parts documentation lists this part in the phase-module section for the NP frame, with four boards associated with the cabinet and positions covering both the top and bottom portions of the phase module.
The current ABB product information also identifies several earlier product IDs associated with this part, making exact part-number verification important when replacing an installed legacy board.
Best Suited For
- ABB medium-voltage drive maintenance and spare-parts inventory
- Replacement of an installed XVC724BE102 / 3BHE009017R0102 board
- Legacy drive support where an exact board-level replacement is required
Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Product ID | 3BHE009017R0102 |
| ABB Type Designation | VLSCD-BOARD XV C724 BE102 |
| Model / Designation | XVC724BE102 / XV C724 BE102 |
| Product Type | VLSCD Board |
| Function | Voltage Level Short Circuit Detection |
| Construction | SMD varnished |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85049090 |
| Product Category | Drives → Services → Spares and Consumables → Parts |
| Application Reference | ABB medium-voltage drives |
| ACS2000 NP Frame Cabinet Quantity | 4 boards |
| Product Net Weight | ABB sources report approximately 0.05–0.079 kg; verify the applicable product revision before using weight for freight or customs documentation. |
For complete environmental tolerances, electrical limits, installation requirements, and drive-specific compatibility, refer to the applicable OEM documentation.

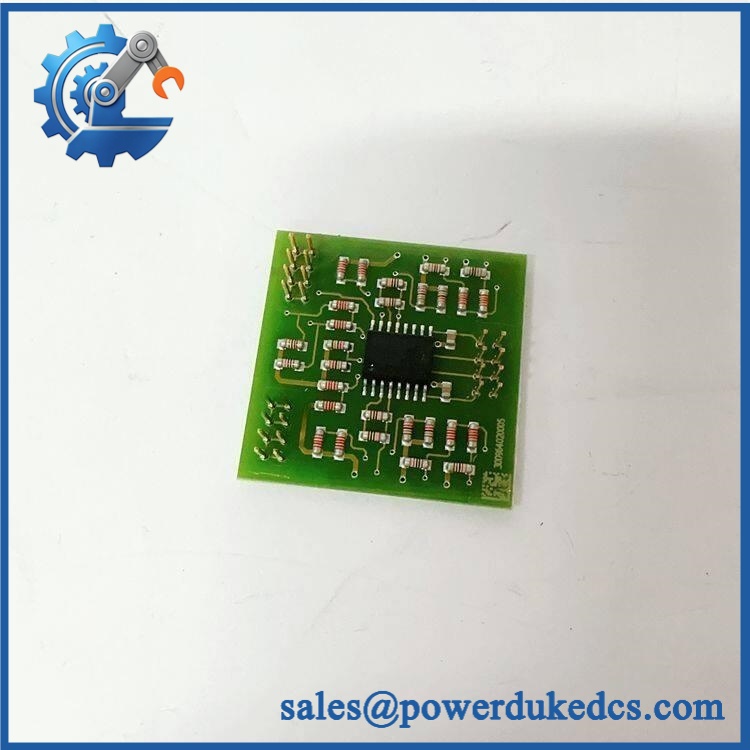

ABB XVC724BE102 3BHE009017R0102
Field Engineer’s Tech Notes
1. Verify the complete part number before installation.
Do not match the board solely by the XVC724BE102 designation. ABB documentation identifies 3BHE009017R0102 as the current Product ID and also lists earlier/replaced product IDs. Compare the installed board’s nameplate, revision markings, and system documentation before removing the existing board.
2. Treat this as a drive power-electronics board, not a generic PLC PCB.
The VLSCD board is associated with the phase-module section of ABB medium-voltage drives. Follow the applicable drive isolation, grounding, and discharge procedure before accessing the phase module. ABB’s drive documentation warns that hazardous voltages can remain after mains power is switched off; verify the DC link is discharged with an appropriate instrument before working inside the equipment.
Adaptive QA & Testing Protocol
For a VLSCD board, inspection starts with the ABB Product ID, type designation, board revision, and physical condition. The board is checked for damaged components, connector condition, contamination, corrosion, and signs of previous overheating or improper handling.
Where the applicable test equipment and drive configuration permit, the replacement board should be verified within the corresponding drive assembly rather than treated as a standalone generic circuit-board test. The installation check focuses on correct board position, connector seating, phase-module configuration, and system fault/status behavior following controlled energization.
Test reports, inspection photographs, and available test videos can be provided upon request.
ABB XVC724BE102 3BHE009017R0102
Buyer’s FAQ
Is 3BHE009017R0102 the same part as XVC724BE102?
Yes. ABB’s product documentation identifies 3BHE009017R0102 as the Product ID and VLSCD-BOARD XV C724 BE102 as the ABB type designation. is the corresponding model/designation reference.
Can this board be used as a direct replacement for an older VLSCD board?
Potentially, but the complete installed part number and drive configuration should be checked first. ABB lists several earlier product IDs as replaced products, so a legacy-system replacement should be validated against the applicable drive documentation before installation.
Is this part available as new or refurbished?
Condition should be confirmed against the specific quotation. For procurement of a new-surplus or refurbished unit, request the serial/part-number photographs and inspection status before placing the order.
What warranty and lead time are available?
Warranty and lead time depend on the actual stock condition and sales order. Request the current stock status, condition, warranty period, and estimated shipping date with your quotation.
