Description

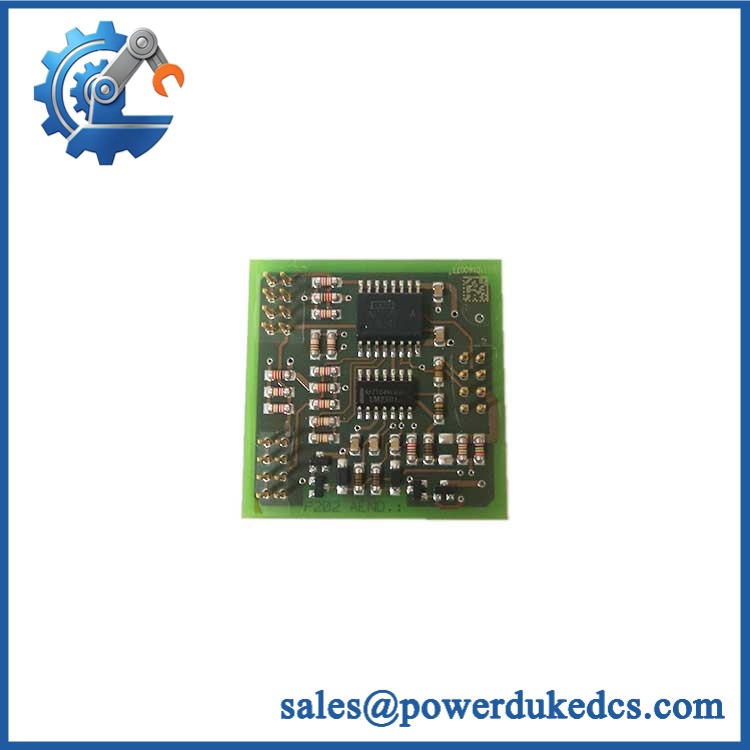

- Brand: ABB
- Full Model Number: XVC767AE102
- ABB Ordering Number: 3BHB007209R0102
- Lifecycle Status: Legacy / service-spares sourcing recommended
- Core Function: Control and interface board; exact host-system role should be verified against the installed ABB documentation
- Top 3 Hardcore Specs: 110 V DC electromechanical-contact compatibility; ground-fault resistance indication 0–29.8 kΩ; diagnostic fault-code indication
- Condition & Lead Time: Stock status and condition subject to current lot confirmation
The model-to-order-number pairing XVC767AE102 / 3BHB007209R0102 is independently corroborated by multiple industrial-part listings.
Module 3: Technical Intro & Downtime Impact
A failed control or interface board can leave a critical automation or protection function unavailable even when the rest of the cabinet remains electrically healthy. For ABB XVC767AE102, correct identification is especially important because online sources describe the part inconsistently; the matching ordering number 3BHB007209R0102 is clear, while the exact host-system function requires confirmation from the unit nameplate, system documentation, or revision data. One technical reference associated with this part describes compatibility with 110 V DC electromechanical contacts and diagnostic monitoring functions.
For maintenance planning, the available technical material reports ground-fault resistance measurement from 0 to 29.8 kΩ, with higher readings represented separately and diagnostic codes used when the resistance calculation cannot be completed. It also references incorrect-frequency, external-open-circuit, and input-state diagnostic conditions. Those figures should be treated as application-specific data rather than universal cabinet specifications until the installed system is identified.
Module 4: Dynamic Emergency Swap & Configuration Guide
1. Pre-Swap Prep
Isolate the associated control circuit according to the site electrical procedure. Record the failed unit’s full identification, including XVC767AE102 and 3BHB007209R0102. Photograph every connector, jumper, terminal position, and any application-specific adjustment before removal. Use ESD protection.
2. Removal
Do not assume a DIN-rail or plug-in I/O construction. The available references do not establish a universal mechanical mounting arrangement for this exact revision. Remove retaining hardware only after all field-side and backplane connections have been identified and documented.
3. Installation & Configuration
Install the replacement using the same mechanical orientation and connector positions as the removed unit. Transfer application-specific settings only after verifying the wiring diagram and hardware revision. Where the installation uses the referenced electromechanical-contact interface, verify the contact type and associated circuit voltage before energization; the available technical reference specifies 110 V DC for the supported electromechanical contacts.
4. Power-On Self-Test (POST)
Restore power under the approved commissioning procedure. Check for abnormal diagnostic indications, unexpected fault codes, or loss of the connected protection/control function. Where the application exposes ground-fault diagnostics, verify that the displayed resistance behavior falls within the documented range and that no external-open-circuit or frequency-related diagnostic is generated.
ABB XVC767AE102
Module 5: Quality Assurance & Testing SOP
Every supplied ABB XVC767AE102 / 3BHB007209R0102 should pass a documented inspection sequence before shipment:
- OEM anti-counterfeit visual inspection: ABB markings, ordering number, labels, connector condition, PCB finish, and revision identifiers checked against the expected hardware.
- Part-number reconciliation: XVC767AE102 matched to 3BHB007209R0102 before packing.
- Physical inspection: PCB contamination, oxidation, cracked components, bent contacts, damaged connectors, and evidence of unauthorized rework.
- Electrical verification: Applicable supply/interface points checked according to the corresponding ABB documentation; no assumed voltage is applied without confirmation.
- Functional simulation: Where the test setup supports the application, electromechanical-contact inputs and diagnostic behavior are exercised, including the documented ground-fault measurement range.
- Diagnostic verification: Fault reporting checked for abnormal diagnostic states; external-open-circuit and frequency-related conditions are specifically reviewed where applicable.
- Final QC: Serial number, photographs, test record, packing inspection, and ESD-safe packaging completed before release.
Module 6: Maintenance & Reliability FAQ
Q1. Is ABB a direct drop-in replacement?
Not automatically. The identity is confirmed, but compatibility depends on the installed system, hardware revision, connectors, and application configuration. Verify the failed unit against the replacement before installation.
Q2. Is it safe to hot-swap this unit while the system is running?
Do not assume hot-swapping is permitted. The sources reviewed do not establish a universal hot-swap approval for this exact part. Use the applicable ABB installation manual and the site’s isolation procedure.
Q3. Will replacing the board cause my current program or settings to be lost?
A replacement board should not be treated as automatically carrying the configuration of the failed unit. Preserve photographs, hardware settings, wiring records, revision information, and any applicable controller configuration before removal. Where configuration backup facilities exist, perform the backup before maintenance.
Q4. What should I check before ordering a replacement?
Confirm , 3BHB007209R0102, hardware/revision markings, connector arrangement, installed application, and any associated field-contact configuration. This is important because online descriptions for this part are inconsistent.
Q5. What warranty applies after installation?
Warranty depends on the supplier’s sales terms and the condition supplied. Obtain the warranty period in writing and retain the incoming inspection and functional-test records for any post-installation claim.
