ABB XVC768115 3BHB007211R115 | 24 V DC I/O Module

Description

Module 2: The 10-Second Procurement Snapshot

• Brand: ABB
• Full Model Number: XVC768115 / 3BHB007211R115
• Lifecycle Status: Legacy spare; verify current OEM availability
• Core Function: Digital input/output interface
• Top 3 Technical Specs: 16 digital inputs; 16 digital outputs; 24 V DC field signals*
• Stock & Condition: New Surplus / Tested Refurbished; stock and dispatch time confirmed per unit

*Secondary product listings describe this unit as a 16-channel digital input / 16-channel digital output module and report 24 V DC signal handling. These figures should be checked against the exact hardware revision before engineering approval.

Module 3: Supply Chain & Technical Deep Dive

A failed legacy ABB I/O board can stop an otherwise healthy drive or excitation system. XVC768115, order number 3BHB007211R115, is identified in current supplier records as an ABB I/O-related board, with listings associating it with ACS880 drive and UNITROL 5000 applications. The exact function is inconsistently described across secondary sources, however, so procurement should verify the installed equipment and board label before approving a replacement.

The purchasing case is mainly about downtime exposure. Secondary listings describe 16 digital inputs and 16 digital outputs, with 24 V DC signals reported for the I/O channels. One supplier also lists a compact board size of approximately 100 × 80 × 10 mm and 300 g, but those figures are not confirmed by an ABB primary datasheet. For TCO analysis, compare one tested spare against the cost of an emergency shutdown, engineering labor, expedited freight, and possible system commissioning. The cheapest unit is not always the lowest-cost option.

Module 4: Migration, Compatibility & Field Traps

Replacement Matrix

⚠️ Field Trap 1 — Function Identification

Do not purchase this board from the model number alone and assume it is a generic PLC I/O module. Secondary sources disagree on the exact description: some identify it as a digital I/O module, while others call it a current-monitoring board or pulse-output module.

Match the physical board label, installed drive/system, connector layout, and original BOM before issuing the replacement approval.

⚠️ Field Trap 2 — Signal Wiring

If the installed application uses 24 V DC digital signals, record every terminal before removal. A wrong input/output assignment can produce a false healthy indication while sending the wrong command downstream.

Use photographs. Then verify the wiring diagram.

ESD control matters. Store and handle the PCB in an ESD-safe bag and avoid touching exposed circuitry.

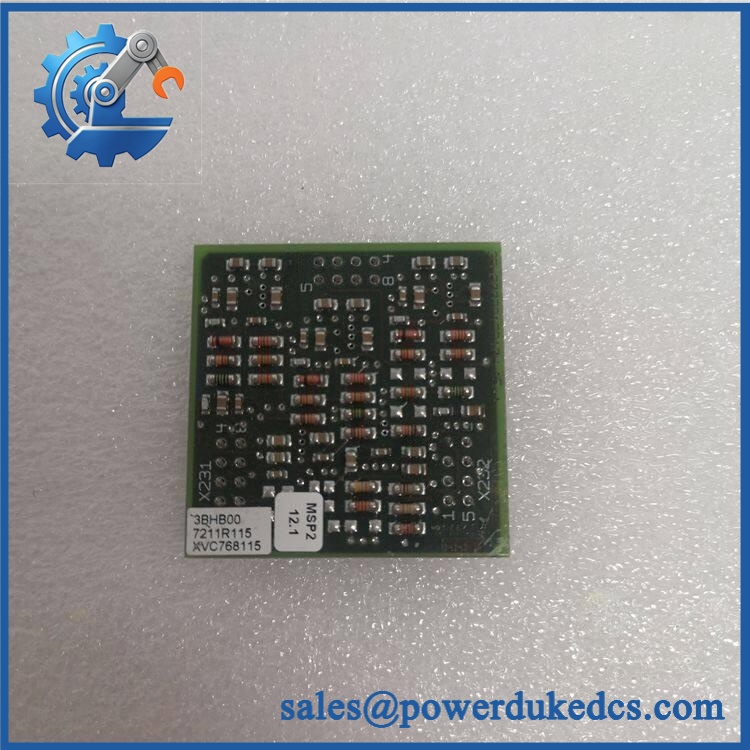

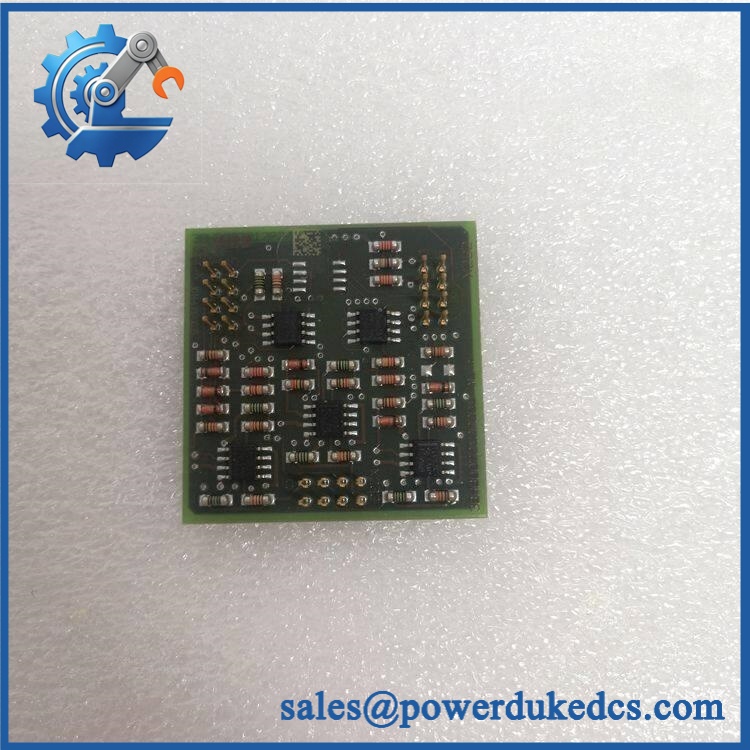

ABB XVC768115 3BHB007211R115

Module 5: Quality Assurance & Testing SOP

A surplus unit should not enter production inventory simply because the label looks correct.

1. OEM Identification Inspection

• Verify ABB branding and full part number.
• Match XVC768115 with 3BHB007211R115.
• Photograph the product label and serial information.
• Inspect PCB condition, connectors, solder joints, and mounting points.
• Check for corrosion, heat marks, cracked components, or repair evidence.
• Compare the board layout with an approved reference unit where available.

2. Power-On Self-Test

• Apply the correct test supply specified for the actual hardware.
• Check power-up behavior.
• Record status LEDs, where fitted.
• Check for abnormal current draw.
• Inspect for overheating or abnormal component temperature.

3. I/O Functional Test

Where a compatible ABB test environment is available:

• Exercise all documented digital inputs.
• Verify input-state changes.
• Activate each documented digital output.
• Measure output response.
• Check switching behavior under the specified load.
• Record channel-by-channel results.

Do not claim a full I/O load test unless every relevant channel has actually been tested.

4. System-Level Verification

For a unit intended for an ACS880 or UNITROL-related installation, use the appropriate engineering test environment rather than a generic PLC rack. Confirm communication, diagnostics, I/O response, and system recognition.

5. Final QC

• Serial number recorded
• Test results archived
• Test photos retained
• ESD packaging applied
• Protective cushioning installed
• QC label attached
• Shipment condition photographed

A customer can request the actual inspection record for the supplied unit.

ABB XVC768115 3BHB007211R115

Module 6: Procurement-Driven FAQ

1. Is this ABB XVC768115 genuinely in stock, and what is the overnight shipping cutoff?

Stock should be confirmed against the physical unit, not a catalog record. For urgent orders, confirm the exact part number, condition, test status, shipping destination, and carrier cutoff before payment. Same-day or overnight dispatch should only be promised after inventory and carrier capacity are verified.

2. How do you verify the condition of a legacy or surplus unit?

Each unit should pass an identity and physical inspection before being released. The process includes label verification, serial-number recording, PCB inspection, connector inspection, and power-on testing where a suitable test setup is available.

For tested units, request the actual test report rather than accepting a generic statement that the part was tested.

3. What warranty applies if the unit is defective?

The commercial warranty should be stated on the quotation or purchase order before shipment. A practical industrial-spare warranty should define the coverage period, evidence required for a failure claim, return authorization process, and whether replacement or refund applies.

Do not rely on a verbal warranty.

4. Could firmware or hardware revision cause a compatibility problem?

Yes. The exact risk depends on the host ABB system and the installed board revision. Before replacement, record the old board’s hardware identification and system configuration. If the replacement has a different revision, obtain engineering confirmation before installation.

5. Is XVC768115 a direct replacement for every ABB system using this part number?

The same complete ordering number is the strongest starting point, but system verification is still required. Secondary sources currently give conflicting descriptions of the board’s function, including digital I/O, pulse output, and current-monitoring applications.

For procurement approval, match the part number + installed equipment + connector configuration + hardware revision. That combination is much safer than approving the purchase from the model number alone.
