ABB XVC770BE101 | HVD Board 3BHE021083R0101

• Brand: ABB
• Full Model Number: XVC770BE101
• ABB Article Number: 3BHE021083R0101
• Lifecycle Status: Legacy installed-base spare; current OEM lifecycle status not independently verified
• Core Function in System: High-voltage drive control/interface circuitry
• Product Type: HVD board / circuit board
• Top 3 Confirmed Specs: XVC770BE101; 3BHE021083R0101; ABB HVD Board designation
• Condition: New/original-package listings available
• Typical Listing Lead Time: 2–3 days from one current supplier listing
• Listed Net Weight: 0.54 kg from one supplier record; other listings report materially different shipping weights, so verify before logistics planning

Module 3: Technical Intro & Downtime Impact

When a high-voltage drive control board fails, the resulting fault can stop a drive-dependent process even when the surrounding PLC and supervisory hardware remain operational. ABB XVC770BE101, ABB article 3BHE021083R0101, is identified in current industry parts references as an HVD Board (High Voltage Drive Board). For MRO teams, matching the complete ABB identifier is critical because visually similar boards within the same XVC family are not necessarily interchangeable.

The verified public data for this specific part does not establish a dependable operating-voltage range, current rating, firmware version, memory size, or maximum ambient temperature. Those figures should therefore not be fabricated into a maintenance specification. One supplier identifies the board as 0.54 kg net weight, while another lists 2.0 kg shipping/product weight, demonstrating why packing data should be confirmed against the actual unit before freight booking.

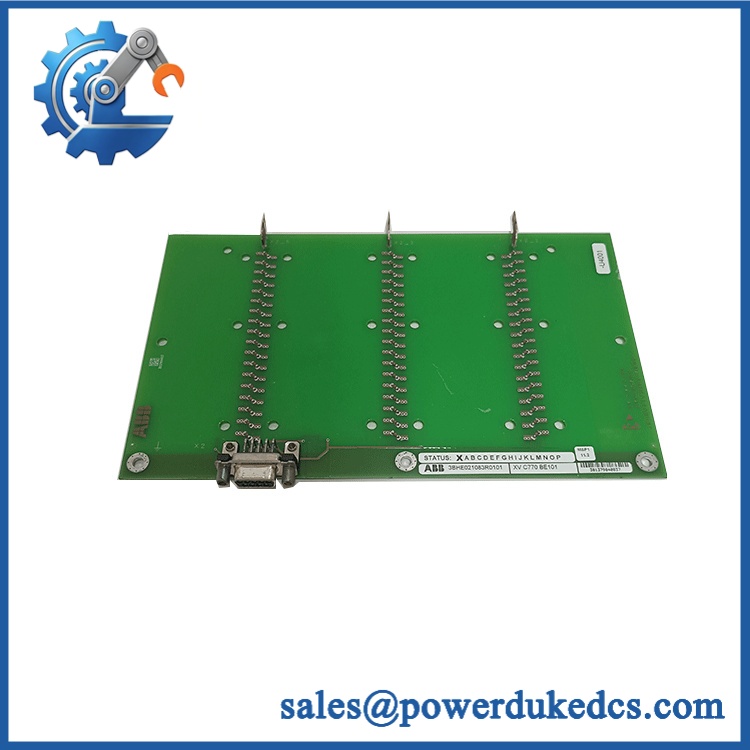

ABB XVC770BE101

Module 4: Dynamic Emergency Swap & Configuration Guide

XVC770BE101 is presented as a board-level ABB control component, so the correct replacement procedure centers on cabinet access, connector preservation, ESD control, and host-system verification rather than DIN-rail removal.

1. Pre-Swap Prep — isolate and document

• Apply site LOTO and verify the high-voltage drive is fully de-energized.
• Allow the drive’s DC-link capacitors to discharge according to the OEM procedure.
• Use an ESD wrist strap and antistatic work surface.
• Photograph the existing XVC770BE101, connector locations, labels, jumpers, and board position.
• Record the installed article number and any visible revision markings.

2. Removal — controlled PCB extraction

• Confirm the absence of hazardous voltage with an appropriately rated meter.
• Label connectors before disconnecting them.
• Release the board’s retaining screws, clips, or card-guide hardware as fitted.
• Withdraw the PCB evenly from its mating connectors.
• Never pull on individual wires or flex the PCB during extraction.

3. Installation & Configuration — preserve the original hardware state

• Confirm the replacement marking: XVC770BE101 / 3BHE021083R0101.
• Compare connector orientation and PCB revision against the removed board.
• Reproduce documented jumper, selector, and hardware configuration settings exactly.
• Seat the board squarely until all mating connectors are fully engaged.
• Reinstall the retaining hardware before energization.

4. Power-On Self-Test — verify the drive chain

• Restore power through the approved ABB startup sequence.
• Observe all available board and drive diagnostic LEDs.
• Check for new drive faults, communication alarms, or high-voltage control errors.
• Verify the host system recognizes the board and associated drive functions.
• Perform controlled functional testing before returning the equipment to production.

Field note: Do not infer a hot-swap capability from the physical board format alone. I found no authoritative source confirming live replacement for .

Module 5: Quality Assurance & Testing SOP

A suitable pre-shipment QA process for should include:

• OEM identity inspection: Verify ABB markings, , article 3BHE021083R0101, labels, and traceability information.
• Anti-counterfeit visual inspection: Compare PCB layout, component markings, connector geometry, label construction, and revision identifiers against available ABB references.
• PCB condition inspection: Check for corrosion, contamination, cracked solder joints, connector damage, bent hardware, and evidence of previous overheating.
• ESD handling verification: Keep the board in sealed antistatic protection during inspection and packaging.
• Power-on self-test (POST): Where an approved ABB-compatible test environment exists, power the board under controlled conditions and check all available RUN/ERR or equivalent diagnostic indications.
• Interface verification: Test relevant board-level communications and signal paths using the applicable host-system test setup.
• I/O full-range simulation: Where supported by the connected drive architecture, simulate applicable feedback/control signals across the expected operating range.
• Functional soak test: Run the board in an appropriate controlled test environment long enough to identify abnormal thermal behavior or intermittent faults.
• Final QC record: Document part number, revision, serial/traceability information, inspection results, test results, packaging condition, and QC release.

Module 6: Maintenance & Reliability FAQ

Is ABB a direct drop-in replacement?

The part-number match is . However, direct interchangeability must still be verified against the host drive, board revision, connector arrangement, and approved ABB replacement documentation. The related XVC family contains multiple board types, including XVC769AE101 and XVC772A102, so matching only the family prefix is insufficient.

Does the replacement require a firmware flash?

No reliable public source reviewed for this specific part establishes a mandatory firmware-flashing procedure. Check the installed board revision and the host system’s approved firmware matrix before commissioning.

Is it safe to hot-swap while the system is running?

Do not assume that it is. is associated with high-voltage drive circuitry, and no authoritative source reviewed here confirms hot-swap support. Use the full drive isolation and discharge procedure unless the applicable ABB documentation explicitly states otherwise.

Will replacing this board cause my current drive configuration to be lost?

A board replacement should not be treated as an automatic substitute for configuration backup. Before removal, preserve the drive parameters, hardware configuration, alarms, and any board-specific settings that the host system allows you to export or document. Photographing the original board and connector configuration is also useful for recovery.

What warranty applies if the replacement fails after installation?

Warranty coverage depends on the actual sales terms and supplied unit condition. Public listings reviewed here advertise different commercial terms, including one listing stating a 12-month guarantee, but that should not be interpreted as a universal ABB factory warranty. Confirm the applicable warranty in the purchase agreement before deployment.
