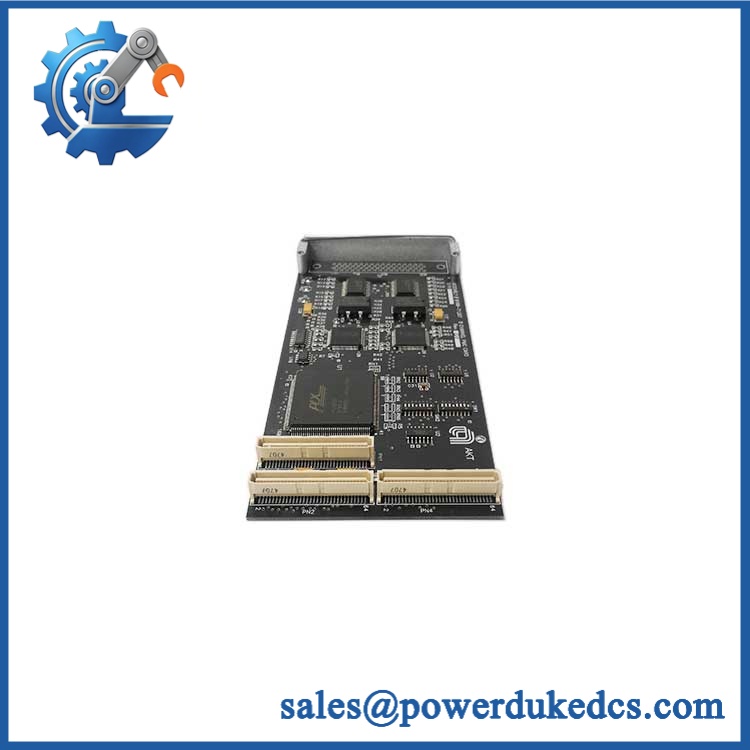

AMAT 0090-76133 | V452 68040 VME Single Board Computer

Description

• Brand: Applied Materials / Synergy Microsystems
• Full Model Number: 0090-76133
• System/Series Family: Synergy V452 / Applied Materials legacy semiconductor equipment
• Core Function: VME-based single-board computer providing embedded CPU and system-control processing
• Top 3 Hardcore Specs: Motorola 68040 CPU; 16 MB RAM; VMEbus architecture
• CPU Architecture: Motorola 68040, 32-bit
• Board Type: V452 SBC
• Memory: 16 MB RAM
• Bus: VMEbus
• Typical Equipment: Applied Materials Centura and other legacy semiconductor manufacturing tools
• Related Part: 0090-76133A
• Stock Status: New Surplus or Fully Tested Refurbished; exact board revision to be confirmed

Public technical references identify AMAT 0090-76133 as a Synergy V452 single-board computer with Motorola 68040 processing and 16 MB RAM. Applied Materials equipment references associate the board with legacy Centura semiconductor-processing systems.

Module 3: Technical Product Introduction

A legacy semiconductor tool can lose its entire control function when the embedded SBC fails, even though the motion, I/O, and peripheral boards remain electrically healthy. The AMAT 0090-76133 is identified as a Synergy V452 SBC, providing the CPU and system-control processing layer for Applied Materials equipment. Repair and equipment-service references specifically describe the board as a 68040 CPU assembly with 16 MB RAM, while other VME references identify the V452 as a VME single-board computer.

For replacement work, the architecture is more important than a generic “CPU board” label. The 0090-76133 belongs to the Synergy V452 hardware family and uses a Motorola 68040 processor with 16 MB memory. Public references also list 0090-76133A as a related configuration, so board suffix and revision should be recorded before procurement. Exact clock frequency, power consumption, serial-port population, memory technology, and connector pinout vary by board revision or configuration in secondary documentation and should be verified from the physical board rather than assumed.

Module 4: Application Scenarios & Field Realities

• Inside legacy Centura semiconductor-processing tools, the 0090-76133 functions as a central embedded computing platform. Service records specifically identify it as a SBC used in Centura equipment, making it a system-level spare rather than a simple peripheral controller.
• During tool recovery after an SBC fault, the board should be evaluated together with the VME backplane and associated I/O assemblies. A that passes a basic CPU power-up test can still fail to initialize the tool if its VME contacts, memory configuration, or installed daughterboard arrangement does not match the original system.
• For semiconductor equipment refurbishment, preserving the exact CPU and memory configuration is important. The 0090-76133 is documented specifically as a 68040 CPU with 16 MB RAM, while related configurations exist under other Applied Materials part numbers.
• When troubleshooting intermittent equipment freezes or boot failures, inspect electrolytic capacitors, socketed components, edge connectors, and the VME backplane before assuming a processor failure. Older boards can spend years in high-temperature equipment cabinets, and marginal contacts may produce faults that appear software-related.

AMAT 0090-76133

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

Replacement classification: Drop-in Replacement when the existing equipment specifically uses AMAT 0090-76133 with the same configuration, VME chassis, memory arrangement, firmware environment, and associated daughterboards.

Software compatibility: Configuration and firmware verification required. This board is the embedded computing platform, so the operating environment, boot devices, application software, and equipment-specific configuration must remain compatible with the replacement hardware.

Cross-model replacement: Hardware and software verification required. Related boards such as 0090-03467 and 0090-76133A may belong to the same broader family but should not be treated as identical without checking the exact system configuration.

Field Traps — Watch Out

1. Match the exact AMAT part number and suffix. Service references distinguish 0090-76133, 0090-76133A, and other configurations. Do not approve a replacement from “” alone.

2. Verify the installed memory configuration. The 0090-76133 is documented as a 68040 CPU with 16 MB RAM. A visually similar board with another memory configuration may have different boot behavior or application compatibility.

3. Inspect the VME backplane before replacing the SBC. Oxidized or contaminated VME contacts can produce boot errors, bus faults, or intermittent device detection. Replacing an otherwise healthy SBC will not correct a degraded backplane connection.

4. Preserve daughterboard and configuration hardware. systems can use associated daughterboards such as ESSI configurations. Record all installed mezzanine hardware, jumpers, switches, and boot-device identifiers before removing the original assembly.

5. Do not infer modern processor specifications. Secondary listings sometimes describe 68040 variants with different clock rates or expanded memory. The safest engineering basis for the supplied 0090-76133 is the documented 68040 / 16 MB configuration, unless the physical board label establishes a different revision.

Module 6: Quality Assurance SOP

Pre-Shipment Inspection Protocol for AMAT 0090-76133

• OEM identity inspection: Verify Applied Materials marking, exact 0090-76133 part number, Synergy designation, hardware revision, serial number, and all visible assembly identifiers.
• Configuration inspection: Photograph both sides of the board and record installed memory devices, daughterboards, EPROM/Flash labels, jumpers, switches, and other configuration hardware.
• CPU verification: Confirm the board population corresponds to the expected Motorola 68040 architecture.
• Memory verification: Confirm the installed configuration corresponds to the documented 16 MB RAM arrangement for 0090-76133.
• Mechanical inspection: Examine the PCB, VME connectors, mounting hardware, front panel, stiffeners, heatsinks, sockets, and retention hardware for corrosion, cracks, deformation, contamination, or unauthorized modifications.
• VME connector inspection: Check all backplane contacts for oxidation, bent contacts, damaged plating, foreign material, or abnormal wear.
• Component inspection: Inspect capacitors, voltage regulators, memory devices, oscillator components, sockets, and solder joints for leakage, thermal discoloration, cracked packages, or previous repair activity.
• Power verification: Confirm the correct VME system power configuration from the applicable Applied Materials equipment documentation before energizing the board.
• Power-on self-test: Install the SBC in a compatible /VME test chassis and observe startup current, reset behavior, processor activity, status indicators, and abnormal temperature rise.
• Memory test: Exercise the installed RAM through an appropriate diagnostic or system test environment and check for memory errors, parity problems, or boot instability.
• VME bus handshake verification: Confirm that the SBC communicates correctly with representative VME peripheral cards and that expected bus transactions complete without timeouts or bus errors.
• Boot verification: Boot the appropriate legacy software environment and verify successful initialization of the operating environment and system application.
• Peripheral recognition test: Confirm that required VME I/O, serial, storage, and associated subsystem boards are detected correctly by the host system.
• Application execution test: Where an appropriate Applied Materials test fixture or tool is available, execute representative control sequences and verify stable CPU and bus operation.
• Reset and recovery test: Perform controlled power-cycle and system-reset tests and verify repeatable boot behavior without intermittent failures.
• Extended operation test: Run the SBC under representative CPU and VME traffic for an extended period while monitoring for freezes, resets, bus faults, memory errors, or application crashes.
• Thermal observation: Monitor processor, regulator, memory, and other heat-generating components for abnormal temperature rise during sustained operation.
• Final QC record: Record exact part number, revision, serial number, CPU identification, memory configuration, test chassis, boot result, VME test results, peripheral recognition results, thermal observations, test duration, and inspector approval.
• ESD-controlled packaging: Place the board in an ESD-safe package and protect VME connectors, sockets, daughterboards, and PCB surfaces against impact, vibration, moisture, contamination, and electrostatic discharge.

Procurement note: The technically supported identity is AMAT 0090-76133 — Synergy VME Single Board Computer, documented in service references as a Motorola 68040 CPU board with 16 MB RAM. It is associated with Applied Materials legacy semiconductor equipment, including Centura systems. Because related configurations such as 0090-03467 and 0090-76133A also exist, the complete AMAT part number, board revision, memory population, and daughterboard configuration should be matched before approving a replacement.
