AMAT 0190-15384 | Delta Tau 48 I/O CPCI Board for Semiconductor

Description

• Brand: AMAT / Applied Materials
• Full Model Number: 0190-15384
• System/Series Family: Delta Tau Data Systems CompactPCI motion-control platform
• Core Function: Main CompactPCI I/O interface board providing 32 digital inputs and 16 digital outputs for semiconductor equipment control
• Top 3 Hardcore Specs: 32 inputs; 16 outputs; CompactPCI 48-I/O architecture
• Stock Status: Verify current New Surplus, Factory Sealed, or Fully Tested Refurbished condition before order

Module 3: Technical Product Introduction

When a semiconductor process tool loses its main I/O interface board, the resulting fault can span motion control, interlocks, equipment status, and actuator commands even though the individual field devices remain healthy. AMAT 0190-15384 is identified in current equipment records as a Delta Tau Data Systems CompactPCI I/O board, with the Delta Tau assembly number 603603-103 associated with the Applied Materials part number. Multiple independent records identify the board as a 48-I/O CPCI assembly with 32 inputs and 16 outputs, used in Applied Materials semiconductor equipment.

The architecture is centered on the CompactPCI backplane rather than a standalone PLC-style fieldbus. Current records identify 603603-103 as “MAIN CPCI 96 I/O (I/O 00-47)” while other inventory records associate the same AMAT 0190-15384 number with Delta Tau 603603-106, indicating that the Applied Materials part number can appear against more than one assembly revision or Delta Tau assembly number. That revision relationship needs to be resolved from the physical PCB label before replacement; otherwise, a visually similar board can be ordered with the wrong hardware revision.

Module 4: Application Scenarios & Field Realities

• Inside an Applied Materials semiconductor process tool, the board provides the controller-side interface for a dense collection of equipment signals. The documented 32-input / 16-output arrangement is suited to receiving interlocks, limit states, sensors, and equipment status while driving discrete actuators and control circuits.
• For motion-control equipment built around Delta Tau hardware, the CompactPCI backplane is the key integration point. The board is described as a CPCI I/O assembly, so troubleshooting should include the backplane, host CPU, slot assignment, and board recognition—not just the field wiring.
• During brownfield servicing of older semiconductor tools, preserve the complete identification chain: AMAT 0190-15384, the Delta Tau assembly number, board revision, and any tool-level configuration reference. Current records show both 603603-103 and 603603-106 associated with 0190-15384, which makes suffix-level verification essential.
• When replacing a board from equipment already removed from production, visual inspection of the PCB alone is insufficient. A current working-surplus record describes 0190-15384 as a 603603-103 CPCI 48-I/O PCB, while another current listing identifies 603603-106 under the same AMAT number. The host tool BOM should decide which assembly is correct.

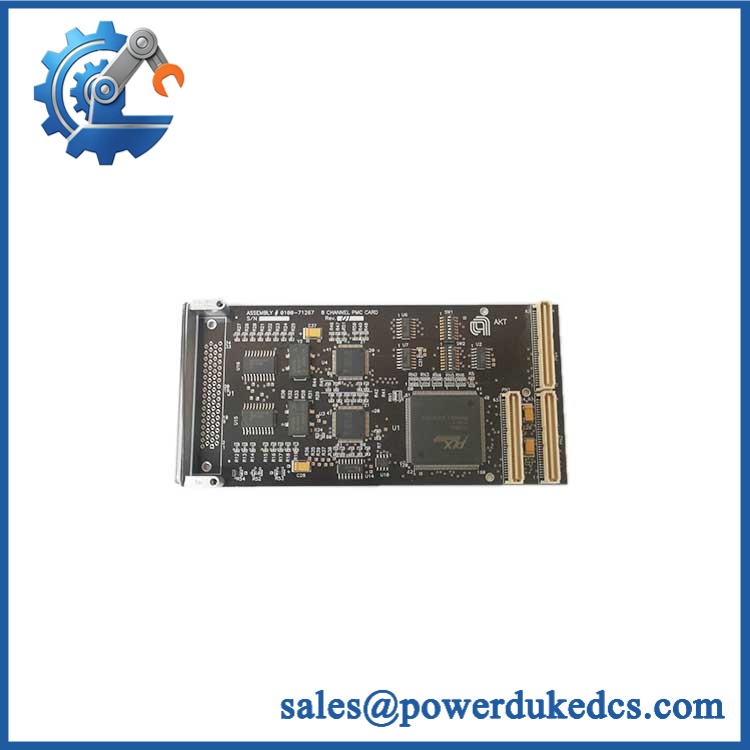

AMAT 0190-15384

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

Exact 0190-15384 assembly with matching Delta Tau hardware revision: Drop-in Replacement
When the board assembly number, PCB revision, CompactPCI host chassis, slot position, I/O configuration, and equipment software all match, replacement can generally be performed as a like-for-like board exchange.

0190-15384 with alternate 603603 revision: Software Compatible / Hardware Verification Required
Current records associate AMAT 0190-15384 with both 603603-103 and 603603-106. Treat the Delta Tau assembly number as a mandatory compatibility checkpoint rather than assuming both are interchangeable.

Different Delta Tau CPCI I/O board: Hardware Modification Required unless explicitly approved
A different CPCI I/O board may use another channel map, connector population, register layout, or host-driver configuration. Physical CompactPCI compatibility does not establish functional interchangeability.

⚠️ Field Traps (Watch Out)

Assembly-number conflict: The AMAT 0190-15384 identifier appears in public records against 603603-103 and 603603-106. Before purchase, compare the actual PCB assembly number and revision with the installed board and the Applied Materials equipment BOM.

96-I/O versus 48-I/O labeling: Some records describe 603603-103 as “MAIN CPCI 96 I/O (I/O 00-47)”, while other descriptions call it a 48-I/O card with 32 inputs and 16 outputs. Those descriptions may be referring to the larger system I/O space versus the physical I/O population on the board. Do not translate the wording into a different hardware configuration without checking the board documentation.

Backplane-slot trap: A replacement CPCI board must occupy the correct CompactPCI slot and communicate correctly with the host CPU. A successful power-up LED sequence does not prove that the host software has enumerated the board correctly.

I/O-map trap: The 32 DI / 16 DO channel count is only the electrical starting point. The actual tool application may assign individual points to door interlocks, motion permissives, vacuum states, valves, or other equipment functions. Preserve the original channel map before removal.

Module 6: Quality Assurance SOP

Pre-Shipment QA Protocol for AMAT 0190-15384

• Step 1 — Identity Verification: Confirm Applied Materials marking, 0190-15384, Delta Tau assembly number such as 603603-103 or 603603-106, PCB revision, serial information, and host-tool identification.
• Step 2 — OEM Anti-Counterfeit Visual Inspection: Inspect PCB labels, component markings, date codes, CompactPCI connector construction, board finish, mounting hardware, and evidence of unauthorized component replacement.
• Step 3 — Mechanical Inspection: Check the CompactPCI edge connector, ejector hardware, mounting points, board surface, connector headers, and component-clearance areas for cracks, bent contacts, corrosion, contamination, or impact damage.
• Step 4 — Backplane Test Fixture Verification: Install the board only in a verified compatible Delta Tau CompactPCI test chassis and confirm the correct slot assignment before energization.
• Step 5 — Power-On Self-Test: Apply controlled power and verify host-board recognition, startup diagnostics, status indications, and absence of CPCI hardware faults.
• Step 6 — Digital Input Test: Exercise all documented 32 input channels with controlled logic-level signals and record channel recognition, state changes, and diagnostic behavior.
• Step 7 — Digital Output Test: Exercise all 16 output channels using controlled loads. Record output state, measured voltage, current response, and channel mapping.
• Step 8 — I/O Address and Backplane Verification: Confirm that the host processor correctly enumerates the board and that the expected I/O address/register allocation corresponds to the installed assembly revision.
• Step 9 — Application-Level Functional Test: Where the proper Applied Materials tool simulator or Delta Tau test environment is available, verify representative interlock, motion, actuator, and status functions using the approved equipment procedure.
• Step 10 — Final QC Record: Record AMAT part number, Delta Tau assembly number, PCB revision, slot position, all 32 input results, all 16 output results, backplane recognition, application-test result, visual condition, test date, and final QC disposition.

Technical Verification Note: Multiple current sources identify AMAT 0190-15384 as a Delta Tau Data Systems CompactPCI I/O board, with 603603-103 explicitly described as a 48-I/O PCB providing 32 inputs and 16 outputs. Current records also associate the same Applied Materials number with 603603-106, so the physical assembly and revision should be confirmed before procurement.

Technical Data Control Note: Public sources do not provide a sufficiently authoritative primary datasheet for the exact 0190-15384 revision establishing input/output electrical thresholds, supply rails, isolation values, operating temperature, or complete connector pinout. Those parameters should be taken from the installed Delta Tau/Applied Materials equipment documentation rather than inferred from commercial inventory descriptions.
