BENTLY 125388-01H | 3500 Relay Output Module

• Brand: Bently Nevada
• Full Model Number: 125388-01H
• Lifecycle Status: Legacy / Lifecycle status should be verified against current Bently Nevada documentation
• Core Function: 3500 Series relay output interface
• Top 3 Technical Specs: 3500 Series hardware; relay output interface; configurable alarm/status relay function
• System: Bently Nevada 3500 Machinery Protection System
• Module Type: Relay Output Module
• Application: Machinery protection, alarm annunciation, shutdown/control interlocking
• Installation: 3500 rack slot; configuration-dependent
• Stock & Condition: Exact stock confirmation required; New Surplus / Tested Refurbished; Emergency shipping subject to warehouse cutoff

Module 3: Obsolescence & Supply Chain Deep Dive

When a machinery-protection relay output module fails, the problem can extend beyond a missing alarm contact. A 3500 rack may depend on relay outputs for annunciation, interlocking, process trips, or plant control-system interfaces. BENTLY 125388-01H is associated with the Bently Nevada 3500 system’s relay-output hardware family, so the practical procurement requirement is an exact, verified replacement rather than a visually similar 3500 module.

The TCO advantage comes from restoring the existing protection rack without redesigning the monitoring system. A correctly matched relay module can preserve existing relay logic, terminal wiring, alarm assignments, and control-system interfaces, avoiding a larger migration project and its associated engineering and outage costs. (For legacy 3500 hardware, verify the complete part number and module configuration before purchasing; suffixes can matter.)

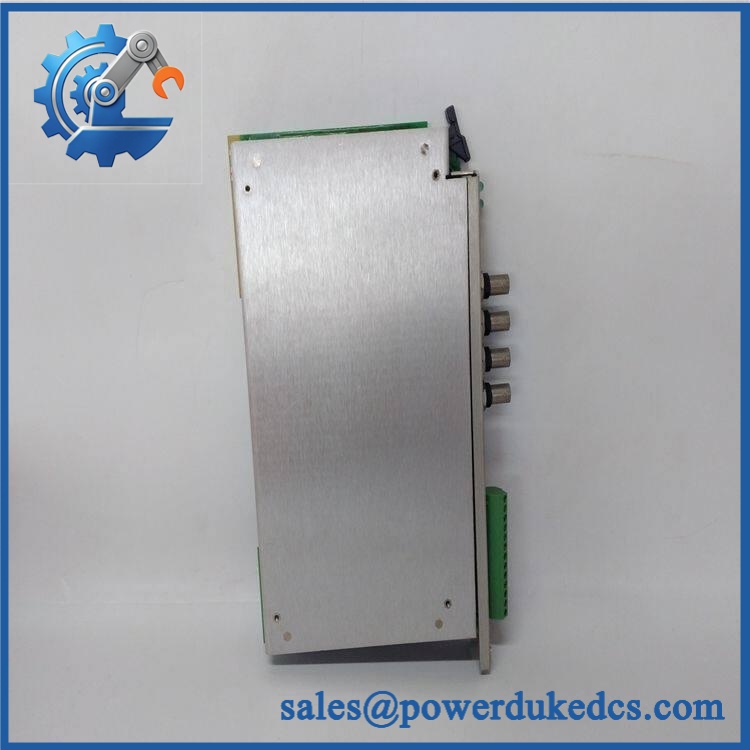

BENTLY 125388-01H

Module 4: Compatibility & Replacement Matrix

⚠️ Field Traps — Watch Out

• Relay Assignment Mismatch: A replacement module may be electrically acceptable yet still have incorrect relay assignments relative to the site’s 3500 configuration. Verify each relay’s alarm, status, and trip function before returning the rack to service.
• Contact-Circuit Verification: Do not approve the unit from a continuity test alone. Confirm the actual contact configuration, field wiring, fail-safe philosophy, and connected load against the plant drawing.

Module 5: Quality Assurance & Testing SOP

1. OEM anti-counterfeit visual inspection — verify Bently Nevada markings, complete 125388-01H identification, labels, connector condition, PCB construction, and manufacturing traceability.
2. Part-number and revision audit — photograph the complete identification and record all visible hardware/revision markings.
3. Mechanical inspection — examine the rack connector, ejector hardware, PCB edge, terminal interfaces, and enclosure for damage or previous repair.
4. PCB condition inspection — check for corrosion, contamination, cracked solder joints, overheated components, damaged traces, and unauthorized rework.
5. Electrical pre-screening — verify continuity, isolation, grounding, and contact-path integrity before energized testing.
6. Power-on self-test (POST) — install the module in an approved 3500 test rack and verify expected startup and system recognition.
7. Relay-channel testing — independently command every applicable relay and verify pickup, release, continuity, and contact-state behavior.
8. Alarm simulation — inject representative alarm/status conditions and verify that each relay changes state according to the configured logic.
9. Trip/interlock-path testing — where applicable, simulate the associated machinery-protection condition and verify the correct relay response without introducing an uncontrolled field trip.
10. Contact-load testing — test representative connected loads within approved electrical limits and inspect for contact instability, excessive heating, or failure to release.
11. Extended run test — monitor relay stability, rack communication, diagnostics, and thermal behavior during an extended energized period.
12. Final QC release — retain test results, identification photographs, serial/traceability information, and ESD-safe packaging documentation.

Module 6: Procurement & Lifecycle FAQ

Q1. Is BENTLY 125388-01H genuinely in stock, and what is the cutoff for emergency shipping?
Confirm availability against the complete 125388-01H part number, quantity, condition, and destination before the PO is released. Emergency orders should be flagged before the warehouse cutoff so tested inventory and same-day dispatch options can be checked.

Q2. How do you verify the condition and authenticity of an obsolete 125388-01H?
The unit should receive OEM marking inspection, full part-number verification, PCB and connector examination, electrical screening, powered 3500-rack testing, relay-by-relay functional testing, and alarm simulation. The QC record should remain traceable to the shipped serial number or asset identifier.

Q3. Are there firmware compatibility issues I should warn engineers about before issuing the PO?
For this type of 3500 relay-output hardware, configuration and relay-assignment compatibility are the primary concerns. Engineers should verify the host 3500 rack generation, installed module type, relay logic, terminal wiring, and plant interlocking requirements before substitution.

Q4. Can another Bently Nevada 3500 relay module replace 125388-01H?
Not automatically. Different 3500 relay-output variants can differ in electrical characteristics, relay configuration, or application. Match the exact part number and verify the site wiring and relay logic before approving a substitute.

Q5. What warranty and return terms should procurement require?
Require a written warranty period, DOA criteria, return-authorization procedure, serial-number traceability, and exclusions for incorrect wiring, field modification, contact overload, or installation damage. For a legacy protection component, those terms should be recorded on the quotation and QC documentation.
