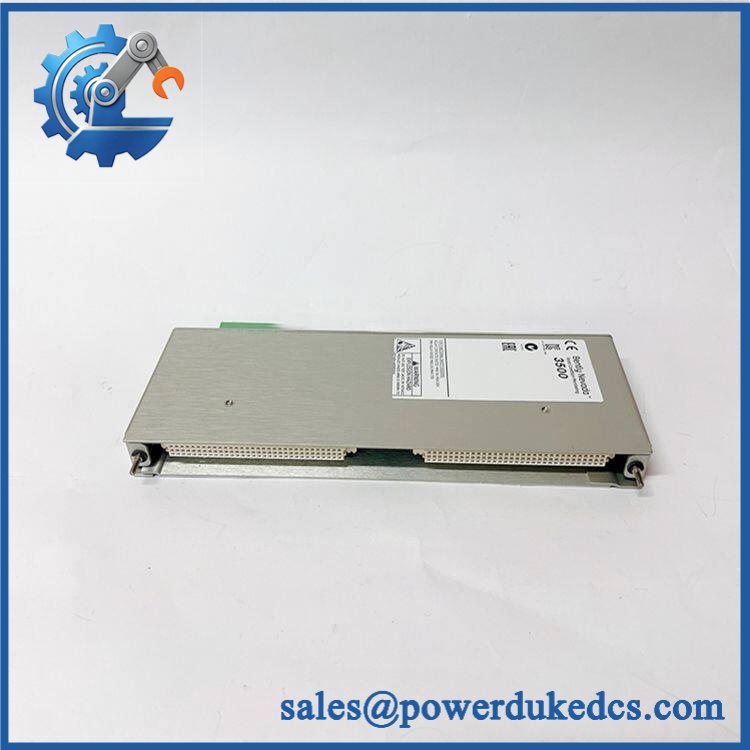

BENTLY 135489-03 3500/42M | Velomitor Internal Barrier I/O Module

• Brand: Bently Nevada
• Full Model Number: 135489-03
• Lifecycle Status: Active / Supported product family
• Core Function: 3500/42M Proximitor/Seismic Monitor I/O interface with internal barriers and internal terminations
• Top 3 Technical Specs: 4 Velomitor channels; internal intrinsic-safety barriers; internal terminations
• Compatible Monitors: 3500/42M and 3500/70M; applicable configurations documented for the 3500 family
• Transducer Type: Velomitor
• Bandwidth: 30 kHz
• Dimensions: 10.31 × 2.44 × 24.13 cm
• Weight: Approx. 0.46 kg
• Stock & Condition: Exact stock confirmation required; New OEM / New Surplus / Tested Refurbished; Emergency shipping subject to cutoff

Bently Nevada’s 3500/04 Internal Barriers documentation identifies 135489-03 specifically as the 3500/42, /70 I/O Module with Internal Barriers, 4 Velomitor channels, and internal terminations.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed 135489-03 can interrupt the signal path between four Velomitor channels and the 3500 machinery-protection system. This is not a generic four-channel I/O card: the module integrates internal barriers and internal field terminations, and the documented application is specifically associated with Velomitor channels on the 3500/42 and 3500/70 monitoring families. The internal-barrier design makes correct hazardous-area configuration just as important as the electrical channel count.

For TCO, replacing the exact I/O assembly can preserve the existing 3500 rack, field terminations, barrier arrangement, monitor configuration, and installed Velomitor sensors. That is materially cheaper and faster than redesigning the monitoring cabinet or moving the machine-protection channels to a different platform. The documented module is approximately 0.46 kg and 24.13 cm high, so the physical replacement itself is relatively straightforward. (Lead times can extend into several weeks for factory-new units; staged spare inventory is therefore valuable for critical rotating equipment.)

BENTLY 135489-03 3500/42M

Module 4: Compatibility & Replacement Matrix

The official 3500/04 documentation distinguishes 135489-03 from 135489-02: 135489-03 is for four Velomitor channels, while 135489-02 combines two Prox/Accel and two Velomitor channels.

⚠️ Field Traps — Watch Out

• Sensor-Type Mismatch: Do not replace a 135489-03 with 135489-01 or 135489-02 because the modules share the same 3500 family. The documented channel assignments differ; 135489-03 is the four-Velomitor version.
• Barrier Approval Mismatch: Internal barriers are part of the safety interface. Confirm the site’s hazardous-area approval requirements and the applicable barrier/earthing architecture before installation. Bently Nevada specifies that racks containing internal barriers require an IS Earthing Module.

Module 5: Quality Assurance & Testing SOP

1. OEM anti-counterfeit visual inspection — verify Bently Nevada markings, 135489-03 identification, labels, connector arrangement, barrier construction, and manufacturing traceability.
2. Full part-number verification — record the exact 135489-03 identifier and all visible hardware/revision markings.
3. Mechanical inspection — inspect rack connectors, internal termination interfaces, mounting hardware, PCB edges, and enclosure for damage.
4. Barrier-condition inspection — check the internal barrier section for physical damage, contamination, corrosion, overheating, or unauthorized modification.
5. Electrical pre-screening — perform continuity, isolation, grounding, and approved barrier-path checks before applying operating power.
6. Power-on self-test (POST) — install the module in an approved 3500/42M test rack and verify normal initialization and module recognition.
7. Four-channel Velomitor simulation — apply controlled representative velocity signals independently to all four channels.
8. Channel-isolation test — verify that each channel responds independently and that no unintended cross-channel signal path exists.
9. Barrier functional verification — confirm signal transmission through the internal barrier circuitry while maintaining the approved test limits and safety procedure.
10. Internal-termination test — verify correct termination, polarity, continuity, and connection integrity at every applicable channel.
11. Alarm and monitoring test — simulate representative vibration conditions and verify the host monitor receives the expected channel values and status information.
12. Extended energized run — monitor for intermittent signal loss, thermal drift, unexpected diagnostics, or unstable channel behavior.
13. Final QC release — retain identification photographs, test results, traceability data, and ESD-safe packaging documentation.

The published barrier documentation lists 135489-03 as the four-Velomitor internal-barrier option and provides the compatible monitor/transducer families. That makes channel-by-channel simulation and barrier verification essential acceptance steps.

Module 6: Procurement & Lifecycle FAQ

Q1. Is BENTLY 135489-03 genuinely in stock, and what is the cutoff for emergency shipping?
Exact availability should be confirmed against 135489-03, quantity, condition, and destination before the PO is released. Current listings show materially different lead times, including approximately 7–9 weeks and 12–24 weeks, so emergency availability should be confirmed directly rather than inferred from a catalog listing.

Q2. How do you verify the condition and authenticity of an obsolete or surplus 135489-03?
Require full part-number verification, OEM marking inspection, connector and termination inspection, barrier-condition inspection, electrical screening, four-channel Velomitor simulation, and host-rack functional testing. The QC record should remain traceable to the shipped unit.

Q3. Are there firmware compatibility issues engineers should check before issuing the PO?
The primary concern is hardware configuration and hazardous-area compatibility, not a routine firmware flash. Verify the installed 3500/42M or applicable 3500/70 configuration, channel assignments, Velomitor sensors, barrier requirements, and rack documentation before substitution.

Q4. Can 135489-02 or 135489-01 replace 135489-03?
Not automatically. Bently Nevada assigns different transducer configurations to these part numbers. 135489-03 provides four Velomitor channels, while 135489-02 provides two Prox/Accel plus two Velomitor channels and 135489-01 provides four Prox/Accel channels.

Q5. What warranty and return terms should procurement require?
Require a written warranty period, DOA criteria, return-authorization procedure, complete serial/part-number traceability, and exclusions for incorrect installation or electrical overstress. For a barrier-equipped machinery-protection I/O module, the quotation should explicitly state the 135489-03 configuration and tested condition.
