BENTLY 147663-01 | 3500/94 VGA Display I/O Module

Description

• Brand: Bently Nevada
• Full Model Number: 147663-01
• Lifecycle Status: Legacy / Mature 3500 Series
• Core Function: 3500/94 VGA Display I/O Module
• Top 3 Technical Specs: VGA display interface; touchscreen display support; 3500/94 system I/O
• System: Bently Nevada 3500/94 VGA Display
• Module Type: Display I/O Module
• Application: 3500 rack data presentation and operator display interface
• Associated Display: Standard color VGA monitor with touchscreen capability
• Stock & Condition: Exact stock confirmation required; New Surplus / Tested Refurbished; Emergency shipping subject to warehouse cutoff

Bently Nevada documentation lists 147663-01 as the 3500/94 I/O Module, while current technical listings identify it specifically as the VGA Display I/O Module. The 3500/94 system uses a standard color VGA monitor with touchscreen technology to display 3500 rack data.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed 147663-01 primarily affects the operator-display interface rather than the core vibration-monitoring channels in the 3500 rack. The module belongs to the 3500/94 VGA Display System and provides the I/O interface associated with the external VGA/touchscreen display. The published 3500 documentation separately identifies the 3500/94 main module and the 147663-01 I/O module, so procurement should treat the two as related but distinct hardware items.

For TCO, replacing the exact I/O module can preserve the installed 3500/94 display architecture, cabling, rack configuration, and operator interface rather than replacing the complete display system. That avoids unnecessary engineering, panel work, configuration effort, and outage exposure. One important distinction: 147663-01 is a display I/O module, not a 3500 machinery-protection monitor, so a failed unit should not automatically be treated as a loss of primary vibration channels. (For legacy display hardware, exact rack generation and display configuration should be verified before approving a replacement.)

Module 4: Compatibility & Replacement Matrix

The 3500/94 documentation identifies 147663-01 as the system I/O module, and the display system uses VGA and touchscreen technology.

⚠️ Field Traps — Watch Out

• Do Not Confuse with the Main 3500/94 Module: The 3500/94 architecture includes 145988-01 as the main module and 147663-01 as the I/O module. They are different hardware items and are not interchangeable.
• Display Configuration Mismatch: Verify the existing VGA display, touchscreen arrangement, cable configuration, and 3500/94 generation before approving the replacement. A module can pass a basic power test yet still fail to provide the expected operator interface.

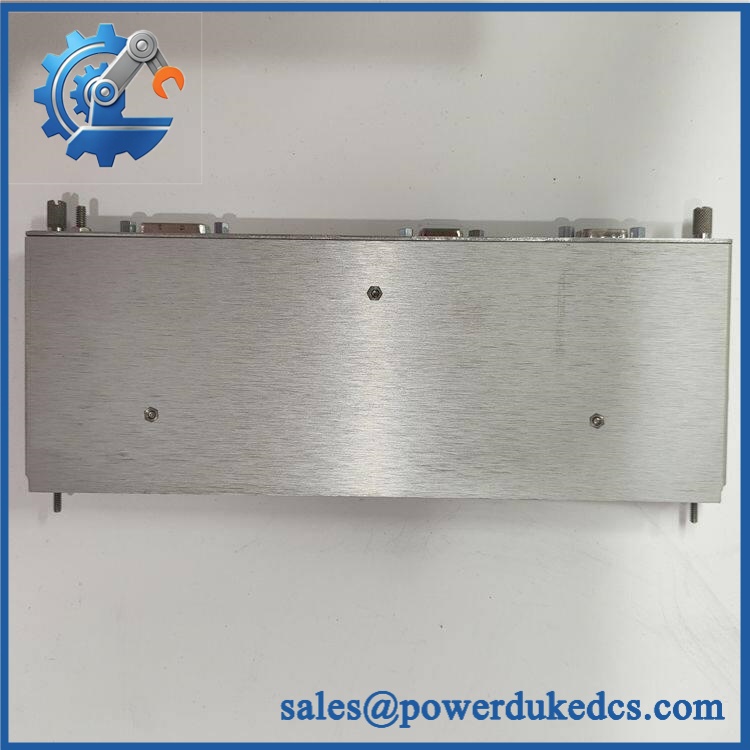

BENTLY 147663-01

Module 5: Quality Assurance & Testing SOP

1. OEM anti-counterfeit visual inspection — verify Bently Nevada markings, 147663-01 identification, PCB layout, connectors, labels, and manufacturing traceability.
2. Full part-number verification — record the complete 147663-01 designation and visible hardware/revision information.
3. Mechanical inspection — examine connectors, mounting hardware, PCB edges, housing, and interfaces for damage, corrosion, or previous repair.
4. PCB condition inspection — check for contaminated areas, cracked solder joints, overheated components, damaged traces, and unauthorized modifications.
5. Electrical pre-screening — perform continuity, isolation, grounding, and interface-path checks before energization.
6. Power-on self-test (POST) — install the module in an approved 3500/94 test environment and verify normal startup and rack recognition.
7. VGA interface test — connect an approved display and verify stable video output, correct synchronization, and expected 3500 system information.
8. Touchscreen interface test — where the installed display uses touchscreen functionality, verify touch input recognition and correct operator interaction.
9. Rack-data presentation test — confirm that expected 3500 rack values, alarms, and status information are correctly presented through the display system.
10. Communication stability test — perform repeated startup/reconnection cycles to identify intermittent display-interface faults.
11. Extended energized run — monitor video stability, touch response, diagnostics, unexpected resets, and connector behavior.
12. Final QC release — photograph the identification label, retain the functional-test record, use ESD-safe packaging, and preserve part-number traceability.

The published 3500/94 documentation explicitly describes the system as a VGA/touchscreen display interface for 3500 data, making display and operator-input testing more meaningful than a simple powered-on inspection.

Module 6: Procurement & Lifecycle FAQ

Q1. Is BENTLY 147663-01 genuinely in stock, and what is the cutoff for emergency shipping?
Exact availability should be confirmed against 147663-01, quantity, condition, and destination before the PO is released. Current industrial listings show inventory claims ranging from limited stock to immediate availability, so emergency dispatch should be confirmed directly before shipment.

Q2. How do you verify the condition and authenticity of an obsolete 147663-01?
Require complete part-number verification, OEM marking inspection, PCB and connector examination, electrical screening, powered 3500/94 testing, VGA output verification, and touchscreen testing where applicable. The test record should remain traceable to the shipped unit.

Q3. Are there firmware compatibility issues engineers should check before issuing the PO?
The primary concern is 3500/94 system-generation and display-interface compatibility. Verify the installed main module, display type, cable arrangement, touchscreen requirement, and applicable system revision before substitution. The documented 3500/94 architecture distinguishes the main module from the 147663-01 I/O module.

Q4. Can 145988-01 replace 147663-01?
No. The 3500/94 spare-parts documentation identifies 145988-01 as the 3500/94 main module and 147663-01 as the 3500/94 I/O module. They have different functions within the display system.

Q5. What warranty and return terms should procurement require?
Require a written warranty period, DOA criteria, return-authorization process, serial/part-number traceability, and exclusions for incorrect installation or electrical damage. The quotation should identify 147663-01 specifically as the 3500/94 VGA Display I/O Module and state the tested condition.
