BENTLY 149986-01E 3500/33 | 16 Channel Relay Control Module

• Brand: Bently Nevada
• Full Model Number: 149986-01E
• Lifecycle Status: Legacy / established 3500 Series hardware
• Core Function: 3500/33 16-Channel Relay Control Module
• Top 3 Technical Specs: 16 relay outputs; SPDT relay contacts; 5.8 W typical power consumption
• System: Bently Nevada 3500 Machinery Protection System
• Module Type: 16-Channel Relay Control Module
• Relay Type: SPDT
• Relay Contacts: Epoxy-sealed
• Channel Count: 16
• Main Module Size: Full-height 3500 rack module
• Installation: One full-height front slot; corresponding I/O occupies one full-height rear slot
• Related I/O: 149992-01
• Revision Marking: 01E — verify exact physical marking
• Stock & Condition: Exact 01E revision confirmation required; New Surplus / Tested Refurbished; Emergency shipping subject to cutoff

Bently Nevada documentation identifies 149986-01 as the spare 16-Channel Relay Control Module for the 3500/33. The published 3500/33 architecture provides 16 independently programmable relay outputs, with a separate relay-output I/O module used at the rear of the rack.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed 149986-01E can remove multiple alarm, status, interlock, or shutdown relay functions from a 3500 machinery-protection rack while the individual monitoring modules continue operating. The 3500/33 provides 16 relay outputs, and Bently Nevada’s documentation states that each relay can be programmed using Alarm Drive Logic based on monitor conditions, alarm states, and selected measured variables. That makes this module especially important when the rack feeds external DCS, annunciator, or shutdown circuits.

From a TCO perspective, replacing the exact relay-control module is normally far less expensive than redesigning the complete 3500 protection architecture. Existing monitor modules, relay logic, field wiring, and rack hardware can remain in service when the replacement matches the original configuration. The primary procurement concern is revision and relay configuration: 149986-01E should be matched to the installed module, while the associated 149992-01 rear I/O arrangement must also be verified. (Legacy relay modules can be much harder to source during a plant outage than their physical replacement time would suggest.)

Module 4: Compatibility & Replacement Matrix

The published 3500/33 ordering information distinguishes 149986-01 as the spare relay control module and 149992-01 as the spare 16-channel relay output module. The 3500/33 occupies one full-height front slot, with the I/O module installed in the corresponding rear full-height slot.

⚠️ Field Traps — Watch Out

• Revision Identification: Public Bently Nevada documentation identifies the spare as 149986-01, while the requested unit includes 01E. Treat 01E as a revision requirement until the original nameplate and maintenance records confirm interchangeability.
• Control Module vs I/O Module: 149986-01 and 149992-01 are separate spare components. Do not quote or ship the rear I/O module when the requirement is the relay-control module itself.

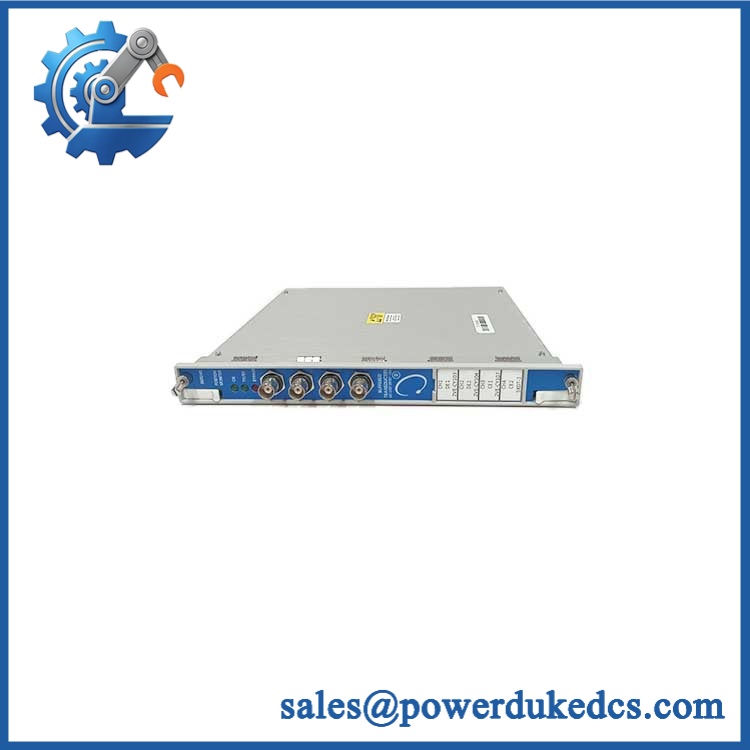

BENTLY 149986-01E 3500/33

Module 5: Quality Assurance & Testing SOP

1. OEM anti-counterfeit visual inspection — verify Bently Nevada markings, 149986-01E identification, front-panel legend, connector arrangement, PCB construction, and manufacturing traceability.
2. Revision audit — photograph the complete part-number marking and confirm the 01E revision against the procurement requirement.
3. Assembly verification — confirm whether the shipment includes only the 149986-01E control module or also the separate 149992-01 I/O module.
4. Mechanical inspection — inspect card guides, ejector hardware, rack connector, PCB edges, and mating interfaces for damage or deformation.
5. PCB condition inspection — check for corrosion, contamination, overheated components, cracked solder joints, damaged traces, and unauthorized rework.
6. Electrical pre-screening — verify continuity, grounding, isolation, and relay-contact integrity before energization.
7. Power-on self-test (POST) — install the module in an approved 3500 rack and verify normal initialization and module recognition.
8. Status verification — confirm expected OK, TX/RX, and Bypass behavior for the applicable 3500/33 installation.
9. Relay-channel testing — independently command all 16 relay channels and verify pickup, release, and contact-state transitions.
10. SPDT contact testing — verify common, normally-open, and normally-closed contact paths for each applicable relay.
11. Alarm Drive Logic simulation — reproduce representative Alert, Danger, Not-OK, and configured measured-variable conditions and verify the correct relay response.
12. Group and channel independence test — exercise individual relays and multiple relays simultaneously to detect unintended interaction.
13. Contact-load testing — apply controlled representative loads within the approved electrical limits and monitor contact stability and temperature rise.
14. Configuration-retention test — power-cycle the rack and confirm that relay assignments and logic remain correctly associated.
15. Rack communication test — verify communication between the 3500/33 control module, rack interface, configuration software, and associated I/O module.
16. Extended energized run — monitor relay stability, diagnostics, contact behavior, and unexpected resets.
17. Final QC release — retain identification photographs, relay-by-relay test results, configuration records, ESD packaging records, and complete traceability.

The 3500/33 documentation specifies programmable relay logic using AND/OR relationships with alarm and status information from the rack. A valid pre-shipment test therefore needs to prove both electrical relay operation and programmed logic response, not just power-up.

Module 6: Procurement & Lifecycle FAQ

Q1. Is BENTLY 149986-01E genuinely in stock, and what is the cutoff for emergency shipping?
Exact availability should be confirmed against 149986-01E, quantity, condition, and destination before PO release. Current public listings show inventory for the base 149986-01 part, but revision-specific availability is not established by those listings. Emergency fulfillment should therefore be based on confirmed physical stock and 01E revision verification.

Q2. How do you verify the condition and authenticity of an obsolete or surplus 149986-01E?
Require complete part-number and revision inspection, OEM marking verification, PCB and connector examination, electrical screening, powered 3500-rack testing, independent testing of all 16 relay channels, SPDT contact verification, Alarm Drive Logic simulation, and configuration-retention testing. The 01E marking should remain linked to the QC record.

Q3. Are there firmware compatibility issues engineers should check before issuing the PO?
Yes. Bently Nevada’s published documentation states that the 3500/33 requires 3500 Rack Configuration Software version 3.3 or later, 3500 Data Acquisition Software version 2.40 or later, and 3500 Data Display Software version 1.40 or later. Check those software requirements against the installed rack before commissioning.

Q4. Can 149992-01 replace 149986-01E?
No. The published spare-parts structure identifies 149986-01 as the 16-Channel Relay Control Module and 149992-01 as the 16-Channel Relay Output Module. They are separate components in the 3500/33 architecture.

Q5. What warranty and return terms should procurement require?
Require a written warranty period, DOA criteria, return-authorization procedure, serial/part-number traceability, and exclusions for incorrect wiring, contact overload, electrical overstress, or unauthorized configuration changes. The quotation should explicitly state 149986-01E, the verified revision, whether the associated I/O module is included, and the tested condition.
