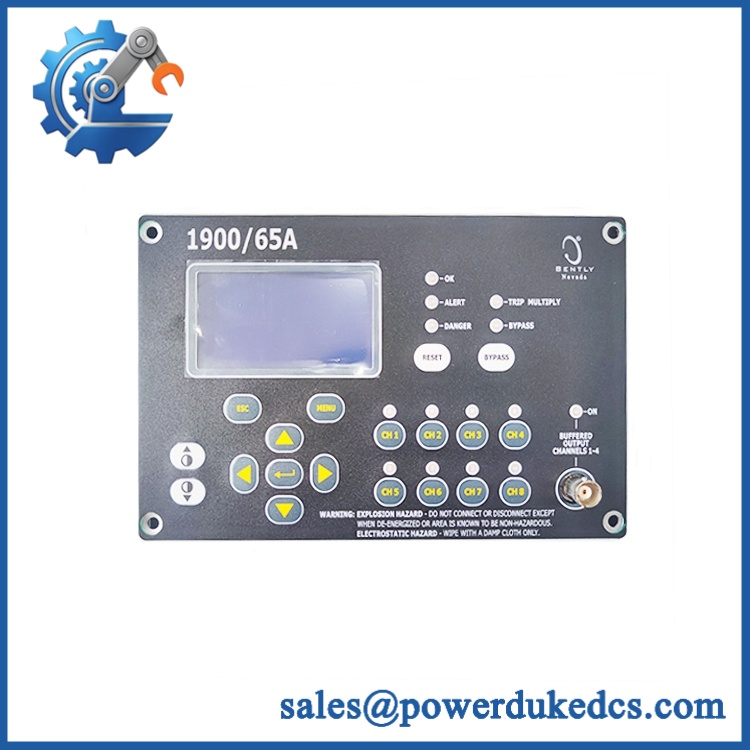

BENTLY 1900/65A-01-01-03-00-01 | Equipment Condition Monitor

Description

• Brand: Bently Nevada
• Full Model Number: 1900/65A-01-01-03-00-01
• Lifecycle Status: Active product family / long-term replacement planning recommended
• Core Function: General Purpose Equipment Monitor
• Top 3 Technical Specs: 110–220 VAC external supply; attached display; Modbus communications
• Transducer Inputs: 4 configurable channels
• Temperature Inputs: 4 channels
• Relay Outputs: 6 programmable relays
• Analog Outputs: 4 configurable 4–20 mA outputs
• Housing: Fiberglass NEMA 4X/IP66 weatherproof housing with door window
• Approvals: None
• Communications: Modbus
• Stock & Condition: Supplier stock varies; New OEM / New Surplus / Tested Refurbished; emergency dispatch subject to cutoff

The 1900/65A itself provides four transducer inputs, four temperature inputs, six relay outputs, and four 4–20 mA recorder outputs.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed 1900/65A-01-01-03-00-01 can remove continuous condition monitoring from a balance-of-plant or general-purpose machine while the machine’s primary control system remains operational. This exact configuration combines four configurable transducer inputs, four temperature inputs, six programmable relay outputs, four 4–20 mA outputs, an attached display, a fiberglass NEMA 4X/IP66 enclosure, and Modbus communications. That combination is useful for pumps, motors, fans, compressors, and other equipment where a standalone monitoring package is preferred.

From a TCO perspective, replacing the monitor preserves the installed sensors, alarm philosophy, analog interfaces, enclosure arrangement, and Modbus integration rather than forcing a wider monitoring-system redesign. The exact suffix matters: changing the power, display, enclosure, approvals, or communications option can turn a nominally similar 1900/65A into a non-equivalent replacement. (Current supplier listings show lead times around 9–11 weeks for this configuration in some channels, so pre-staged inventory can materially reduce outage exposure.)

BENTLY 1900/65A-01-01-03-00-01

Module 4: Compatibility & Replacement Matrix

The suffix configuration is directly reflected in published product information: 01-01-03-00-01 corresponds to AC power, attached display, fiberglass weatherproof housing, no approvals, and Modbus communications.

⚠️ Field Traps — Watch Out

• Suffix Mismatch: Do not purchase a generic “1900/65A” and assume equivalence. The exact configuration determines power supply, display, enclosure, approvals, and communications.
• Modbus Configuration Loss: The monitor’s Modbus interface provides access to static variables, statuses, event information, and time/date information. Preserve the existing address/register configuration and verify DCS/PLC communication after replacement.

Module 5: Quality Assurance & Testing SOP

1. OEM anti-counterfeit visual inspection — verify Bently Nevada markings, complete 1900/65A-01-01-03-00-01 identification, serial information, labels, display assembly, connectors, and enclosure construction.
2. Configuration-string audit — independently verify the power, display, mounting, approvals, and communications codes against the purchase specification.
3. Mechanical inspection — inspect the fiberglass NEMA 4X/IP66 enclosure, door window, cable-entry area, terminals, mounting hardware, and display assembly.
4. PCB condition inspection — check for corrosion, contamination, damaged components, cracked joints, overheating, and unauthorized rework.
5. Electrical pre-screening — verify grounding, input-path integrity, insulation/isolation, and abnormal short-circuit conditions before energization.
6. Power-on self-test (POST) — energize from a controlled 110–220 VAC source and verify startup diagnostics, attached-display operation, and status indication.
7. Transducer-input testing — apply calibrated representative vibration, velocity, acceleration, proximity, or speed signals to applicable channels and verify acquisition and scaling.
8. Temperature-input testing — simulate the configured thermocouple or RTD inputs and verify correct measurement and fault detection.
9. Relay-output testing — exercise all six programmable relays and verify pickup, release, contact state, and alarm logic.
10. 4–20 mA load testing — verify all four recorder outputs at representative low, mid-scale, and high-scale values using controlled loop loads.
11. Modbus communication testing — verify device addressing, register access, channel values, status data, event information, and stable communications with the test client.
12. Alarm/event verification — simulate Alert/Danger conditions and confirm the expected display, relay, recorder, and event responses.
13. Extended operating test — monitor power stability, display behavior, analog outputs, relay state, Modbus communications, and sensor values for intermittent faults.
14. Final QC release — photograph the identification label, retain the complete test record, package for ESD and transit protection, and maintain serial-number traceability.

The 1900/65A documentation supports four transducer inputs, four temperature inputs, six relay outputs, four 4–20 mA outputs, and Modbus communications. Those functions should all be included in acceptance testing for an exact configured replacement.

Module 6: Procurement & Lifecycle FAQ

Q1. Is BENTLY 1900/65A-01-01-03-00-01 genuinely in stock, and what is the cutoff for emergency shipping?
Exact stock should be confirmed against the full 1900/65A-01-01-03-00-01 configuration, quantity, condition, and destination before PO release. Public supplier listings currently show roughly 9–11 weeks estimated lead time for this exact configuration in some channels, while other inventory listings report immediate availability; emergency dispatch therefore requires direct stock confirmation.

Q2. How do you verify the condition and authenticity of an obsolete or surplus 1900/65A?
Require complete configuration-code inspection, OEM marking verification, enclosure and PCB examination, electrical screening, POST, transducer simulation, temperature-channel testing, relay testing, 4–20 mA verification, and Modbus communication testing. The exact unit should remain traceable to its QC record.

Q3. Are there any firmware or configuration issues I should warn my engineers about before issuing the PO?
Yes. Preserve the existing monitor configuration before replacement. Channel types, filters, setpoints, relay logic, recorder assignments, and Modbus-related settings are configurable, so a powered-up replacement is not necessarily a commissioned replacement.

Q4. Can another 1900/65A suffix replace 1900/65A-01-01-03-00-01?
Not automatically. This exact unit uses 110–220 VAC external power, an attached display, a fiberglass NEMA 4X/IP66 housing, no approvals, and Modbus communications. A different suffix can alter one or more of those requirements and may require field changes.

Q5. What warranty and return terms should procurement require?
Require a written warranty period, DOA criteria, return-authorization process, serial-number traceability, and exclusions for incorrect wiring, overvoltage, environmental damage, and unauthorized configuration changes. The quotation should identify the full 1900/65A-01-01-03-00-01 configuration and state the supplied condition.
