Description
- Brand: Bently Nevada
- Full Model Number: 3500/05-01-03-00-00-01
- Lifecycle Status: Obsolete / Legacy; replacement configurations available
- Core Function: 3500 System Rack / chassis for mounting monitor modules and power supplies
- Top 3 Technical Specs: 19-inch EIA full-size rack; 14 module slots; bulkhead mounting; CE compliance
- Stock & Condition: New Surplus / Tested Refurbished; physical stock confirmation required; emergency dispatch subject to cutoff
The official Bently Nevada 3500/05 specification identifies the full-size rack as a 19-inch EIA chassis with 14 available module positions. The 03 mounting code denotes the bulkhead-mount configuration, while the final 01 denotes CE compliance.
Module 3: Obsolescence & Supply Chain Deep Dive
A failed 3500/05 chassis can create a much larger maintenance problem than its relatively simple mechanical construction suggests. This rack provides the physical mounting, backplane communication, and power-distribution path required by the 3500 Machinery Protection System. For the specified 3500/05-01-03-00-00-01, the key configuration is a full-size 19-inch rack with 14 module slots and bulkhead access, allowing rear wiring constraints to be avoided in installations where the back of the rack cannot be reached.
From a TCO perspective, replacing only the failed rack is normally preferable to redesigning an otherwise operational 3500 protection system. The investment preserves existing monitoring modules, power supplies, field wiring, configuration, and engineering documentation. A supplier listing identifies newer replacement configurations within the 3500/05 family, so procurement should compare the exact mechanical and certification code before substituting a newer version. —For legacy installations, a physically verified surplus chassis can also eliminate the engineering review and downtime associated with changing rack configuration.
Module 4: Compatibility & Replacement Matrix (Crucial for Buyers)
| Purchase / Migration Case | Compatibility Assessment | Typical Switch Effort |
|---|---|---|
| Replace an installed 3500/05-01-03-00-00-01 with the same part number | Drop-in Replacement | 1–3 hours including shutdown, installation, inspection, and rack verification |
| Replace with another 3500/05 full-size bulkhead rack using an equivalent approved configuration | Hardware Compatible — Engineering Verification Required | 2–6 hours |
| Change from bulkhead mounting to rack/panel mounting | Hardware Modification | 4–16+ hours depending on enclosure and wiring access |
| Replace the legacy configuration with a newer 3500/05 ordering code | Configuration Review Required | Typically 2–8 hours; certification and mechanical arrangement must be checked |
The Bently Nevada ordering structure is configuration-specific: A=01 identifies the 19-inch full-size rack, B=03 identifies bulkhead mounting, C=00 identifies no agency approval option, D=00 is reserved, and E=01 identifies CE compliance.
Field Traps — Watch Out
Mounting Configuration: Do not substitute a rack-mount or panel-mount chassis simply because it is also labeled 3500/05. Bulkhead mounting provides front access to wiring and I/O, which can be important where rear access is unavailable.
Certification Code: C00 and C01/C02 are not interchangeable approval configurations. Where the installation requires hazardous-area certification, verify the required agency approval before approving a substitute chassis.

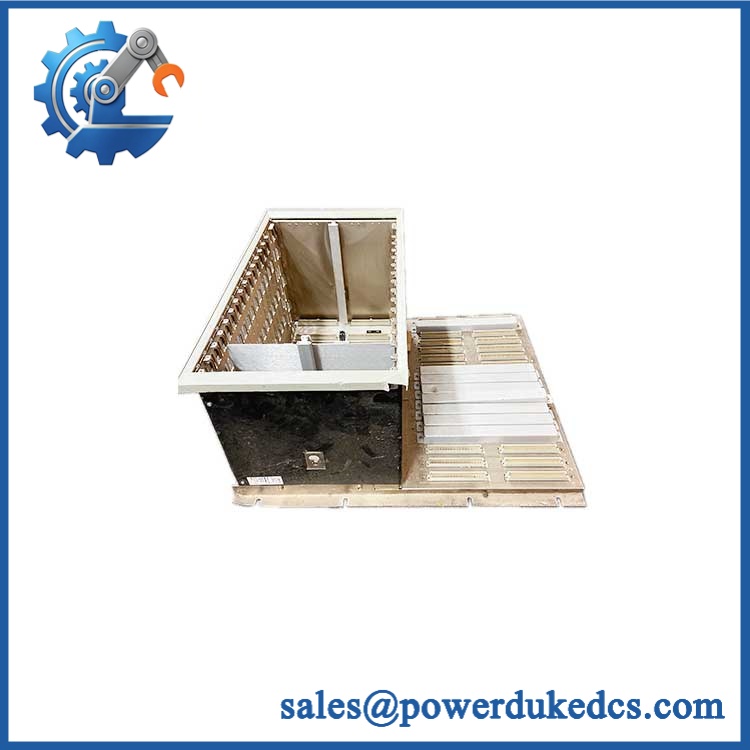

BENTLY 3500/05-01-03-00-00-01
Module 5: Quality Assurance & Testing SOP
1. Part Identity Verification
Record the complete 3500/05-01-03-00-00-01 ordering code, nameplate markings, serial information, revision data, and manufacturer identification. Match the physical chassis against the specified 3500/05 configuration.
2. OEM Anti-Counterfeit Visual Inspection
Inspect labels, chassis construction, card guides, backplane connector arrangement, mounting hardware, PCB assemblies where accessible, and manufacturer markings. Any inconsistent labeling or unauthorized modification triggers further inspection.
3. Mechanical Inspection
Verify chassis dimensions, 19-inch mounting geometry, bulkhead hardware, module guides, connector alignment, and enclosure condition. Check for corrosion, deformation, cracked insulation, damaged fasteners, or bent connector contacts.
4. Backplane Continuity Test
Check critical backplane interconnects for continuity and abnormal resistance. Inspect for damaged contacts that could interrupt module communication or power distribution.
5. Power Distribution Verification
Install compatible power-supply hardware on a controlled 3500 test rack. Verify correct mechanical seating, power distribution, and absence of abnormal heating during energized operation.
6. Module Communication Test
Populate representative 3500 monitor modules and verify backplane communication, module recognition, and stable system operation. The 3500/05 is specifically designed to allow 3500 modules to communicate and to distribute power to those modules.
7. Extended Load Test
Operate the assembled rack under representative module load. Monitor connector stability, power behavior, temperature rise, and intermittent communication faults over an extended test cycle.
8. Final QC Record
Document part number, serial number, inspection findings, test results, condition grade, packaging inspection, and QC approval before release for shipment.
Module 6: Procurement & Lifecycle FAQ
Q1. Is this exact 3500/05-01-03-00-00-01 configuration still available, and what is the emergency shipping cutoff?
Availability varies because this is a legacy configuration. Current supplier listings show the exact part number in refurbished inventory, while other sources identify newer 3500/05 configuration codes as replacements. Physical stock should be confirmed before issuing an emergency PO, with same-day dispatch dependent on the confirmed order cutoff and carrier schedule.
Q2. How do you guarantee the condition and authenticity of an obsolete or surplus rack?
The purchase specification should require exact part-number verification, nameplate and serial inspection, mechanical inspection, backplane continuity testing, power-distribution verification, and rack-level functional testing. For a legacy chassis, these checks are more meaningful than simply classifying the item as “new” or “used.”
Q3. Are there firmware compatibility issues with this 3500/05 rack?
The rack itself is primarily a chassis, backplane, and power-distribution assembly rather than a standalone firmware device. The more important engineering checks concern the installed 3500 modules, rack interface configuration, power supplies, and system configuration software. Bently Nevada documentation states that the rack provides communication between 3500 modules and distributes power to them.
Q4. Can I replace this exact rack with any 3500/05 System Rack?
No. The six-field ordering code defines physical size, mounting method, agency approval, reserved configuration, and European compliance. The target installation should therefore match the required 01-03-00-00-01 configuration or receive engineering approval for the proposed substitute.
Q5. What warranty and return terms should procurement require?
Specify the warranty period in the quotation and PO, together with a functional-failure return process. The warranty should cover the chassis/backplane assembly supplied and should clearly distinguish manufacturing defects from installation damage, incorrect rack configuration, or field modification.
