BENTLY 3500/05 | 3500 Series System Rack Machinery Protection

Description

• Brand: Bently Nevada
• Full Model Number: 3500/05
• Lifecycle Status: Active product family / established installed base
• Core Function: 3500 Series system rack for monitor modules and power supplies
• Top 3 Technical Specs: 19-inch full-size rack with 14 available module positions; 12-inch mini-rack with 7 positions; panel/rack/bulkhead mounting options
• System: Bently Nevada 3500 Machinery Protection System
• Rack Sizes: Full-size 19-inch / Mini-rack 12-inch
• Mounting: Panel mount / Rack mount / Bulkhead mount
• Power Position: Far-left rack positions reserved for power supplies and rack interface hardware
• Hazardous Area: Internal barrier configurations available
• Stock & Condition: Exact rack variant and stock confirmation required; New OEM / New Surplus; emergency shipping subject to cutoff

Baker Hughes identifies the 3500/05 as the system rack used to mount 3500 monitor modules and power supplies. The full-size rack provides 14 available module slots, while the mini-rack provides 7; mounting formats include panel, rack, and bulkhead configurations.

Module 3: Obsolescence & Supply Chain Deep Dive

A damaged or unavailable 3500/05 chassis can block an otherwise serviceable machinery-protection system from accepting replacement monitor modules, power supplies, or rack-interface hardware. This component is the physical backbone of the 3500 platform: it allows the installed modules to communicate and distributes power from the supply section to the rack modules. Baker Hughes specifies both full-size and mini-rack formats, so the rack size must be established before procurement.

For TCO, replacing the rack can preserve the installed 3500 monitor population, field wiring, configuration, and machinery-protection architecture rather than forcing an unnecessary system migration. The rack itself does not contain the monitoring logic, so a matched replacement generally carries substantially less engineering scope than replacing the complete protection platform. (Rack format matters: panel, rack, and bulkhead versions differ in installation method and rear/front access.)

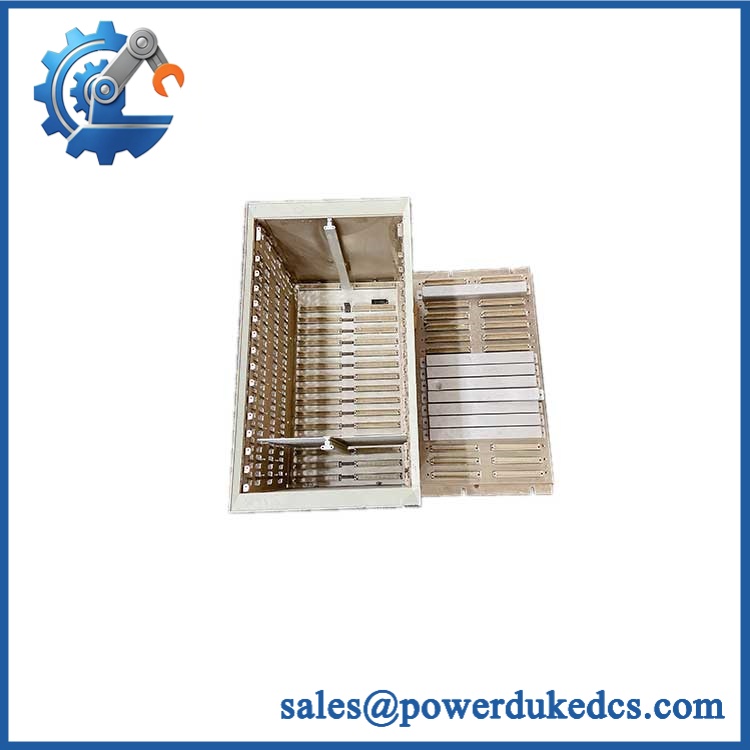

BENTLY 3500/05

Module 4: Compatibility & Replacement Matrix

The 3500/05 architecture reserves the far-left rack positions for power supplies and rack-interface hardware; the remaining module positions accommodate the installed monitoring modules. That arrangement must be preserved during replacement.

⚠️ Field Traps — Watch Out

• Rack Variant Mismatch: Do not order “3500/05” without confirming full-size versus mini-rack and the mounting style. A 19-inch panel-mount rack is not automatically interchangeable with a 12-inch or bulkhead configuration.
• Power/RIM Positioning: The far-left positions are dedicated to the rack power supplies and rack-interface hardware. Verify the existing slot arrangement before transferring modules to a replacement chassis.

Module 5: Quality Assurance & Testing SOP

1. OEM anti-counterfeit visual inspection — verify Bently Nevada markings, rack identification, labels, finish, hardware, and manufacturing traceability.
2. Configuration audit — confirm full-size or mini-rack format, mounting style, barrier provision where applicable, and installed rack hardware.
3. Dimensional inspection — verify rack width, height, depth, mounting-hole pattern, module-slot geometry, and cabinet cutout requirements.
4. Mechanical inspection — check module guides, card-retention hardware, power-supply interfaces, ground connections, and mounting points for deformation.
5. Backplane inspection — examine connectors, contacts, traces, isolation areas, and signs of overheating, corrosion, contamination, or mechanical damage.
6. Grounding verification — verify rack grounding/bonding against the approved installation drawing before energization.
7. Power-distribution pre-check — verify the power-supply interfaces and rack distribution paths for continuity and abnormal resistance conditions.
8. Module-fit test — install representative 3500 modules and verify correct seating, retention, and connector engagement.
9. Power-on test — energize the assembled rack using an approved 3500 power supply and verify expected rack/module startup behavior.
10. Rack communication test — verify installed modules communicate correctly through the rack architecture and that the TDI/system interface can access the rack as applicable.
11. Load verification — operate the rack with representative module loading and monitor supply stability, connector temperature, and abnormal voltage drop.
12. Internal-barrier check where fitted — verify barrier hardware, grounding provisions, and applicable hazardous-area installation requirements.
13. Extended energized run — monitor for intermittent communication, connector heating, power-distribution instability, or unexplained module resets.
14. Final QC release — photograph rack identification and configuration, document mechanical/electrical test results, and package to prevent deformation during transport.

The 3500/05 is a rack/chassis assembly rather than a signal-processing module, so acceptance should focus on mechanical fit, backplane integrity, grounding, power distribution, and module communication rather than firmware or I/O testing.

Module 6: Procurement & Lifecycle FAQ

Q1. Is BENTLY 3500/05 genuinely in stock, and what is the cutoff for emergency shipping?
Exact availability should be confirmed against the required rack variant, not just the 3500/05 family number. Procurement should specify rack size, mounting method, barrier requirement, and destination before emergency dispatch is committed.

Q2. How do you verify the condition and authenticity of a 3500/05 rack?
Verify OEM markings, dimensions, slot geometry, mounting pattern, backplane connectors, grounding points, power interfaces, and overall mechanical condition. A representative module-fit and energized-rack test should be completed before release for critical applications.

Q3. Are there any firmware compatibility issues engineers should warn about before issuing the PO?
No firmware is associated with the passive rack chassis itself. The engineering review should instead confirm the rack format, module positions, power-supply arrangement, rack-interface hardware, and installed module population.

Q4. Can any 3500/05 rack replace the existing 3500/05?
No. Confirm full-size versus mini-rack, mounting format, internal-barrier requirements, and cabinet geometry first. The full-size version has 14 available module positions, while the mini-rack has 7.

Q5. What warranty and return terms should procurement require?
Require a written warranty period, DOA criteria, return authorization procedure, exact rack-configuration identification, and protection against shipping damage or dimensional mismatch. For an installed 3500 rack, the quotation should state the physical rack variant rather than simply “3500/05.”
