BENTLY 3500/20 | Rack Interface Module for Machinery Protection

Description

• Brand: Bently Nevada
• Full Model Number: 3500/20
• Lifecycle Status: Obsolete / Legacy; superseded in current product planning by 3500/22 in applicable configurations
• Core Function: Rack Interface Module for 3500 Machinery Protection System
• Top 3 Technical Specs: Slot 1 installation; front RS-232 configuration port; rear RS-232/RS-422 rack interface
• System: Bently Nevada 3500 Machinery Protection System
• Module Type: Rack Interface Module (RIM)
• Communications: Proprietary rack protocol; RS-232; RS-422
• External Interface: TDXnet / TDIX / DDIX compatible architecture
• Status Indicators: OK, TX/RX, TM, CONFIG OK
• Rack Requirement: One RIM per rack
• TMR Application: Dedicated TMR RIM required
• Stock & Condition: Exact hardware/configuration confirmation required; New Surplus / Tested Refurbished; Emergency shipping subject to cutoff

Baker Hughes identifies the 3500/20 as the primary interface to a 3500 rack. It must occupy slot 1, next to the power supplies, and supports rack configuration plus retrieval of machinery information through the Bently Nevada proprietary protocol. The module also provides RS-232 and RS-422 interfaces through its associated I/O hardware.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed 3500/20 RIM primarily affects rack configuration, data access, and external communications rather than the basic measurement path. Bently Nevada documentation states that the RIM is not part of the critical monitoring path, meaning its failure does not by itself stop the normal monitoring functions of the rack. It does, however, remove the primary interface used to configure the rack and retrieve machinery information, making a failed RIM a serious maintenance and diagnostics problem.

For TCO, replacing the existing RIM can preserve the installed 3500 rack, monitor population, field wiring, configuration, and external communications architecture. That is usually a smaller intervention than migrating the entire rack. The lifecycle concern is more significant: current supplier documentation identifies the older 3500/20 as discontinued and points to 3500/22-01-01-00 as a newer replacement for applicable configurations. A direct 3500/20 spare is therefore useful when maintaining an existing installed base, while a migration to 3500/22 should be treated as a separate engineering project.

Module 4: Compatibility & Replacement Matrix

The current Bently Nevada datasheet specifies that one RIM is required per rack and that the module must be installed in slot 1. For TMR applications, a dedicated TMR version of the RIM is required because it performs monitor-channel comparison.

⚠️ Field Traps — Watch Out

• Standard vs TMR RIM: A standard 3500/20 RIM should not be substituted into a TMR rack without engineering verification. The TMR RIM performs additional monitor-channel comparison functions.
• I/O Configuration Mismatch: The 3500/20 family has different rear I/O configurations, including RS-232/RS-422 rack-interface and Data Manager interfaces. Confirm the complete RIM/I/O assembly and external communications arrangement before purchasing a replacement.

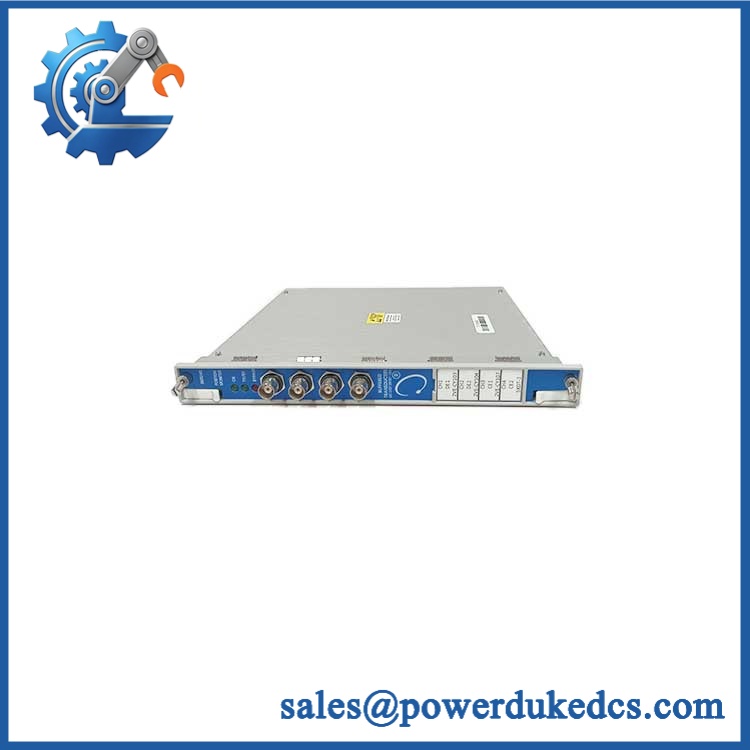

BENTLY 3500/20

Module 5: Quality Assurance & Testing SOP

1. OEM anti-counterfeit visual inspection — verify Bently Nevada markings, complete model identification, labels, front-panel legend, connectors, switches, and manufacturing traceability.
2. Hardware-generation audit — document the exact RIM version, standard/TMR configuration, and associated rear I/O modules.
3. Mechanical inspection — inspect module guides, card edge, rear connectors, mounting hardware, and enclosure for cracks, corrosion, bent contacts, or previous repair.
4. PCB condition inspection — examine for contamination, overheating, damaged traces, cracked solder joints, and unauthorized modifications.
5. Electrical pre-screening — perform continuity, resistance, isolation, and grounding checks before energization.
6. Power-on self-test (POST) — install the module in an approved 3500 test rack and verify expected startup behavior.
7. LED verification — confirm expected OK, TX/RX, TM, and CONFIG OK indications under controlled operating conditions.
8. Rack configuration-port test — connect through the front RS-232 configuration port and verify rack configuration access.
9. RS-232 / RS-422 communications test — validate the applicable rear rack-interface path and confirm stable data exchange.
10. Rack-address test — verify the hardware rack-address configuration and confirm correct identification by the test system.
11. External communication test — where applicable, verify communication with the associated Bently Nevada external communications processor.
12. Alarm/status contact test — verify rack reset, trip-multiply, alarm-inhibit, and OK relay functions where provided by the installed RIM configuration.
13. TMR comparison test — for a TMR RIM, simulate redundant monitor information and verify monitor-channel comparison behavior.
14. Extended operating test — monitor communication stability, LED status, configuration retention, and unexpected resets.
15. Final QC release — photograph the exact identification, retain configuration and communication test records, package with ESD protection, and preserve serial/part-number traceability.

The published documentation identifies the front configuration port, rear rack-interface I/O, Data Manager interface, status LEDs, hardware switches, and RIM relay functions. Those functions should be tested according to the exact installed configuration rather than relying only on a successful power-up.

Module 6: Procurement & Lifecycle FAQ

Q1. Is BENTLY 3500/20 genuinely in stock, and what is the cutoff for emergency shipping?
Exact stock should be confirmed against the complete 3500/20 configuration, including standard or TMR RIM and the associated I/O arrangement. The 3500/20 is a legacy/discontinued product, and current supplier listings show varying availability, so emergency shipment requires physical-stock confirmation before release.

Q2. How do you verify the condition and authenticity of an obsolete 3500/20?
Require OEM marking verification, exact hardware identification, PCB and connector inspection, electrical screening, POST, configuration-port testing, RS-232/RS-422 communication testing, rack-address verification, and external-interface testing. The supplied RIM should remain traceable to its QC record.

Q3. Are there firmware compatibility issues engineers should check before issuing the PO?
Yes. The engineering review should confirm the standard versus TMR configuration, rack address, associated I/O modules, external communications equipment, and installed system generation. Do not assume that a generic 3500/20 listing contains the same RIM/I/O configuration as the installed rack.

Q4. Can 3500/22 replace 3500/20 directly?
Not as a blind drop-in replacement. Current supplier documentation identifies 3500/22-01-01-00 as a newer replacement for discontinued 3500/20 configurations, but the change should be handled as a controlled migration with configuration, communication, and commissioning checks.

Q5. What warranty and return terms should procurement require?
Require a written warranty period, DOA criteria, return-authorization process, serial/part-number traceability, and exclusions for incorrect configuration, installation damage, or electrical overstress. The quotation should identify the exact 3500/20 RIM configuration, including standard/TMR status and associated I/O arrangement.
