BENTLY 3500/22-01-01-00 | 3500M Transient Data Interface Module

• Brand: Bently Nevada
• Full Model Number: 3500/22-01-01-00
• Lifecycle Status: Active / Current 3500 Series TDI family
• Core Function: 3500/22M Transient Data Interface
• Top 3 Technical Specs: Standard TDI; 10Base-T/100Base-TX Ethernet I/O; no agency approval option
• System: Bently Nevada 3500 Machinery Protection System
• Module Type: Transient Data Interface Module and I/O
• Assembly: 288055-01 TDI Module + 146031-01 TDI I/O Module
• Installation: Slot adjacent to rack power supplies
• Data Function: Steady-state data capture; transient waveform acquisition with applicable channel-enabling hardware
• Communication: Ethernet
• Weight: Approx. 0.91 kg for TDI module; complete assembly approximately 1.11 kg
• Stock & Condition: Exact assembly stock confirmation required; New OEM / New Surplus / Tested Refurbished; Emergency shipping subject to cutoff

The 3500/22-01-01-00 configuration is identified as a 3500/22M Transient Data Interface. The complete configuration is commonly specified as 288055-01 + 146031-01.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed 3500/22-01-01-00 can interrupt rack-level data collection, configuration access, and transmission of machinery-monitoring information to host software even though the primary automatic protection path remains operational. The TDI interfaces with 3500 M-series monitors, collects steady-state data and, when the appropriate hardware is enabled, transient waveform data, then transfers that information through the Ethernet interface. Bently Nevada documentation also distinguishes the TDI from the critical monitoring path, which helps maintenance teams assess the immediate operational impact correctly.

For TCO, replacing the existing TDI preserves the 3500 rack, monitor cards, external Ethernet architecture, and System 1 or configuration-software integration instead of forcing a wider monitoring-system migration. It also provides a direct migration path from older rack-interface architecture: current supplier documentation identifies 3500/22-01-01-00 as the newer replacement associated with discontinued 3500/20 RIM configurations. That does not mean the change is configuration-free; rack software, communications, and the exact TDI assembly should be checked before commissioning. (Published supplier lead times for this assembly can reach roughly 12–18 weeks, making staged spare inventory useful for critical machinery.)

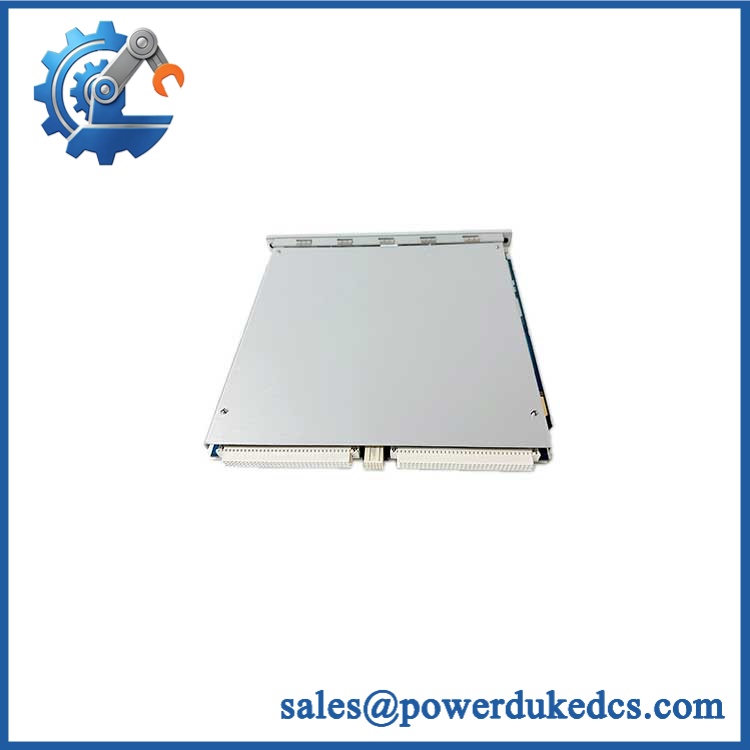

BENTLY 3500/22-01-01-00

Module 4: Compatibility & Replacement Matrix

The TDI occupies the rack position immediately adjacent to the power supplies and interfaces with M-series monitors such as the 3500/40M and 3500/42M. The 3500/22 integrates rack-interface and communication-processor functions that were previously handled by separate equipment.

⚠️ Field Traps — Watch Out

• 3500/20 vs 3500/22 Architecture: Do not treat a 3500/22 as a simple board-for-board replacement for every 3500/20 installation. Software, communication architecture, and the associated I/O assembly must be reviewed before migration.
• Assembly Identification: 3500/22-01-01-00 can be supplied as the complete 288055-01 + 146031-01 assembly. Confirm whether procurement requires the TDI module alone or the complete TDI and I/O combination.

Module 5: Quality Assurance & Testing SOP

1. OEM anti-counterfeit visual inspection — verify Bently Nevada markings, complete 3500/22-01-01-00 identification, labels, module construction, connectors, and manufacturing traceability.
2. Assembly verification — confirm the presence and identity of 288055-01 and 146031-01 where the complete assembly is being supplied.
3. Hardware-generation audit — record whether the existing rack is migrating from 3500/20 RIM architecture and document the installed software/configuration revision.
4. Mechanical inspection — examine the rack connector, ejector hardware, PCB edges, I/O connector, and mounting interfaces.
5. PCB condition inspection — check for corrosion, contamination, damaged components, cracked joints, overheating, and unauthorized rework.
6. Electrical pre-screening — verify continuity, isolation, grounding, and abnormal resistance conditions before energization.
7. Power-on self-test (POST) — install the module in an approved 3500 test rack and verify expected startup and module recognition.
8. Status-indicator verification — confirm expected OK, communication, configuration, and diagnostic indications for the applicable hardware revision.
9. Rack configuration test — establish communication with the 3500 rack through the appropriate configuration interface and verify access to rack parameters.
10. Ethernet interface test — test the 10Base-T/100Base-TX connection, link establishment, data transfer, and sustained communication stability.
11. M-series monitor acquisition test — verify collection of representative steady-state values from installed 3500 monitor modules.
12. Transient-data test — where channel-enabling hardware is installed, generate controlled transient events and verify waveform capture and retrieval.
13. System 1 communication test — verify data availability to the applicable host software and confirm correct rack identification.
14. Extended operating test — monitor Ethernet stability, configuration retention, rack communication, diagnostics, and unexpected resets.
15. Final QC release — photograph module and I/O identification, retain configuration and communications test records, package using ESD protection, and preserve traceability.

The 3500/22 architecture is designed to collect both steady-state and transient dynamic data, while the standard configuration provides Ethernet I/O. Acceptance testing should therefore cover both rack communication and the actual data path required by the installed system.

Module 6: Procurement & Lifecycle FAQ

Q1. Is BENTLY 3500/22-01-01-00 genuinely in stock, and what is the cutoff for emergency shipping?
Exact availability should be confirmed against the complete 3500/22-01-01-00 configuration and whether the requirement is for the TDI module only or the complete 288055-01 + 146031-01 assembly. Current supplier data varies from immediate stock claims to approximately 12–18 weeks lead time, so emergency dispatch requires direct physical-stock confirmation.

Q2. How do you verify the condition and authenticity of an obsolete or surplus 3500/22?
Require OEM marking inspection, exact configuration verification, PCB and connector examination, electrical screening, POST, Ethernet communication testing, rack configuration access, M-series monitor data acquisition, and applicable transient-waveform testing. The supplied unit should remain traceable to its QC record.

Q3. Are there firmware or compatibility issues engineers should check before issuing the PO?
Yes. The principal risk is the transition from 3500/20 RIM architecture to 3500/22 TDI architecture. Verify 3500 configuration software, System 1 integration, rack configuration, installed M-series monitors, Ethernet addressing, and the exact TDI/I/O hardware combination before commissioning.

Q4. What does 3500/22-01-01-00 actually include?
The published ordering structure identifies 01 as the Standard TDI, 01 as the 10Base-T/100Base-TX Ethernet I/O option, and 00 as no agency approvals. The complete set is commonly listed as 288055-01 Standard TDI Module with USB cable + 146031-01 TDI I/O Module.

Q5. What warranty and return terms should procurement require?
Require a written warranty period, DOA criteria, return-authorization procedure, serial/part-number traceability, and exclusions for incorrect installation, configuration changes, Ethernet wiring faults, or electrical overstress. The quotation should clearly state whether it covers the 3500/22 TDI module alone or the complete 288055-01 + 146031-01 assembly.
