BENTLY 3500/22 138607-01 | Transient Data Interface Module

• Brand: Bently Nevada
• Full Model Number: 3500/22M 138607-01
• Lifecycle Status: Obsolete / Replaced
• Core Function: Standard Transient Data Interface (TDI)
• Top 3 Technical Specs: 10Base-T/100Base-TX Ethernet; RS-232 front-panel communication; 10.5 W typical power consumption
• Stock & Condition: New Surplus / Tested Refurbished; availability subject to physical stock confirmation; emergency dispatch subject to order cutoff

The 138607-01 is documented as an earlier 3500/22M TDI variant, with 288055-01 identified by multiple technical sources as its replacement. Baker Hughes documentation confirms the 3500/22M TDI is the interface between the 3500 rack and supporting software, including System 1 and 3500 System Configuration Software.

Module 3: Obsolescence & Supply Chain Deep Dive

When a 3500 rack depends on an older 138607-01 TDI, sourcing becomes a lifecycle problem rather than a routine MRO purchase. The part has been identified as discontinued and replaced by 288055-01, while remaining market inventory is inconsistent—some suppliers report limited stock, whereas others list it as discontinued and unavailable. That matters when a failed TDI interrupts rack-level data collection, configuration access, or transient waveform transfer. The 3500/22M occupies the rack interface position and communicates collected steady-state and transient data toward host software.

For plants retaining an installed 3500 architecture, sourcing a verified 138607-01 can be financially preferable to replacing an otherwise serviceable monitoring rack. The TCO equation is straightforward: a spare module avoids engineering redesign, field rewiring, system configuration changes, commissioning labor, and prolonged shutdown exposure. Replacement planning still requires engineering review. The newer 288055-01 adds a USB interface and is documented as the replacement, so procurement should not treat every 3500/22 configuration as automatically interchangeable without checking the complete rack assembly and I/O configuration.

Module 4: Compatibility & Replacement Matrix (Crucial for Buyers)

Field Traps — Watch Out

I/O Configuration: The TDI is associated with specific I/O modules, including 10/100 Base-T and 100 Base-FX variants. Verify the installed I/O module part number before approving a replacement.

Interface Difference: The older 138607-01 uses a front-panel RS-232 communication interface, while the 288055-01 replacement adds USB connectivity. Do not assume the newer interface provides identical physical connections or service procedures.

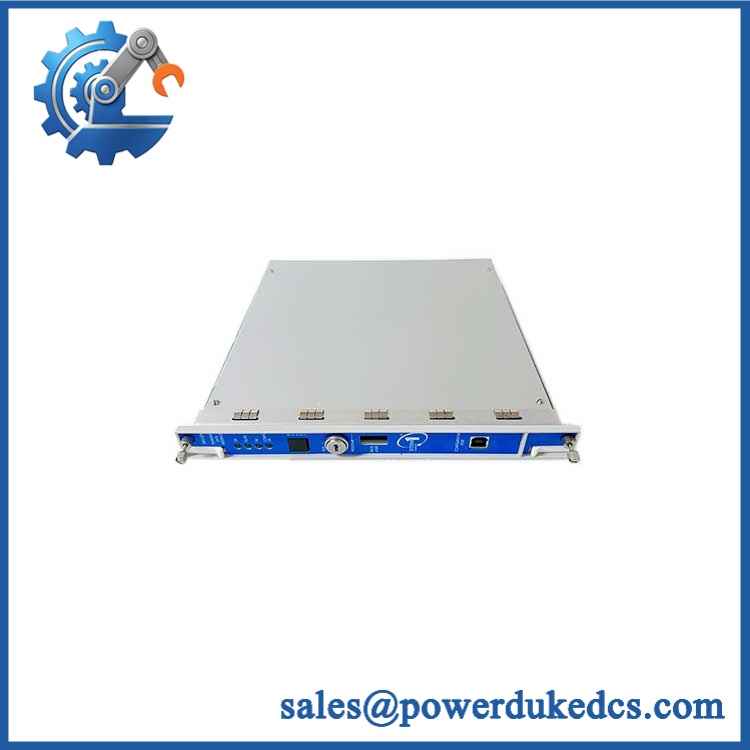

BENTLY 3500/22 138607-01

Module 5: Quality Assurance & Testing SOP

Every surplus or legacy 138607-01 should be treated as a controlled industrial spare, not simply as a visual replacement.

1. Identity & Authenticity Inspection
Record the complete part number, revision marking, serial information, nameplate data, and manufacturing markings. Perform OEM anti-counterfeit visual inspection against known Bently Nevada construction, labeling, connectors, PCB markings, and mechanical details.

2. Physical Condition Check
Inspect the PCB, connector pins, card edge, mounting hardware, front-panel indicators, housing, and protective coating. Reject units showing corrosion, cracked solder joints, bent pins, liquid damage, or unauthorized board modification.

3. Power-On Self-Test (POST)
Install the module on a compatible 3500 test rack and apply the correct rack power. Check startup behavior and verify expected OK/RUN/communication LED states, abnormal indications, and rack recognition.

4. Communication Verification
Verify communication between the TDI and the 3500 rack. Where applicable, confirm Ethernet communication, front-panel service communication, and configuration-software recognition.

5. Data Acquisition Test
Confirm that the TDI can communicate with compatible M-series monitoring modules and pass representative steady-state and transient data. The TDI’s documented function includes collecting and transferring monitoring data to host software.

6. I/O Load Testing
Run the module under representative communication and rack-load conditions. Monitor operating stability, communication status, and temperature behavior during an extended test cycle.

7. Final QC Record
Record test results, serial number, visible condition, firmware/configuration information where accessible, and the final QC disposition. Package the module in ESD-protective material before shipment.

Module 6: Procurement & Lifecycle FAQ

Q1. Is the BENTLY 3500/22 138607-01 genuinely in stock, and what is the cutoff for emergency shipping?
Availability is inventory-dependent because 138607-01 is an obsolete/replaced part. Current market listings conflict: some sources report limited or immediate inventory while others classify it as discontinued and out of stock. For an emergency requirement, physical stock should be confirmed before PO release, with same-day dispatch determined by the confirmed order cutoff and carrier schedule.

Q2. How do you guarantee the condition and authenticity of obsolete or surplus parts?
Require traceable part-number and serial-number inspection, OEM-style visual verification, physical inspection, rack-level power-up testing, communication verification, and documented QC results. A clean exterior alone is insufficient for a legacy TDI.

Q3. Are there firmware or configuration issues engineers should check before issuing the PO?
Yes. Engineers should verify the existing 3500 rack configuration, installed TDI I/O module, software environment, and communication interface. The 138607-01 and 288055-01 are not identical hardware revisions; 288055-01 introduces USB connectivity and is identified as the replacement for 138607-01.

Q4. Is 138607-01 a direct replacement for every 3500/22 installation?
No. It is the correct part only when the installed rack and I/O configuration call for that specific TDI assembly. The 3500/22M uses different I/O configurations, including copper and fiber-optic Ethernet variants, so the complete assembly should be checked before purchasing.

Q5. What warranty and return terms should procurement require?
For obsolete industrial electronics, require a written warranty covering functional failure after installation, a defined return-material authorization process, and clear exclusions for incorrect installation, incompatible rack configuration, or field modification. Warranty duration should be stated explicitly on the quotation and PO rather than assumed from the part’s age.
