BENTLY 3500/22M 138607-01 | 01AB Transient Data Interface Module

• Brand: Bently Nevada
• Full Model Number: 3500/22M 138607-01 01AB
• Lifecycle Status: Legacy / superseded by newer 3500/22 configurations
• Core Function: Standard 3500/22M Transient Data Interface
• Top 3 Technical Specs: Standard TDI; 10Base-T/100Base-TX Ethernet I/O; steady-state and transient waveform data collection
• PWA Part Number: 138607-01
• Module Type: Transient Data Interface (TDI)
• System: Bently Nevada 3500 Machinery Protection System
• Primary Interface: Ethernet
• Rack Position: RIM/TDI slot adjacent to power supplies
• Associated I/O: 146031-01 10Base-T/100Base-TX I/O module
• Application Software: 3500 System Configuration Software / System 1
• Revision Marking: 01AB — verify against the installed nameplate
• Stock & Condition: Exact revision stock confirmation required; New Surplus / Tested Refurbished; Emergency shipping subject to cutoff

The 138607-01 part is documented as the 3500/22M Standard Transient Data Interface Module. It combines the rack-interface function with data-collection capability, interfaces with M-series monitors, and sends collected data to host software through Ethernet. The standard 3500/22M assembly uses a separate 146031-01 10Base-T/100Base-TX I/O module.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed 3500/22M 138607-01 can cut off rack configuration access and the transfer of machinery data to host software even though the individual 3500 monitor cards may continue operating locally. The TDI interfaces with M-series monitors such as the 3500/40M and 3500/42M, collecting steady-state information and, when the required channel-enabling capability is present, transient waveform data. Ethernet provides the principal path to the host software environment.

For TCO, restoring the existing TDI is normally far less expensive than replacing the complete 3500 rack or redesigning the machinery-monitoring network. Existing monitor cards, rack wiring, host software, and Ethernet infrastructure can remain in service when the replacement configuration matches. There is a useful migration distinction here: current documentation and supplier references identify 288055-01 as a newer 3500/22 Standard TDI replacement for 138607-01, but that should be treated as a controlled hardware/configuration migration rather than an assumption of identical behavior. (Legacy TDI inventory can be difficult to source on short notice, so tested spare stock has practical outage value.)

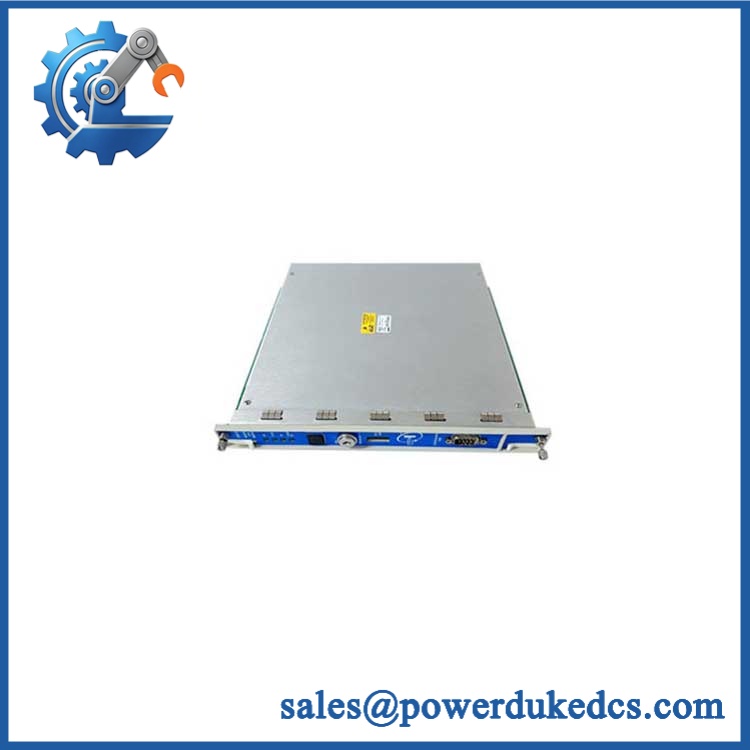

BENTLY 3500/22M 138607-01

Module 4: Compatibility & Replacement Matrix

Bently Nevada’s ordering information lists 138607-01 as the Standard TDI, 138607-02 as the TMR TDI, 146031-01 as the 10Base-T/100Base-TX I/O module, and 146032-01 as the fiber-optic I/O option. These are distinct configurations.

⚠️ Field Traps — Watch Out

• Standard vs TMR TDI: Do not substitute 138607-02 for 138607-01 simply because both are 3500/22M TDIs. The TMR version serves a different system architecture.
• Copper vs Fiber I/O: 146031-01 is the 10Base-T/100Base-TX copper interface, while 146032-01 is the 100Base-FX fiber option. A replacement with the wrong I/O assembly can fail network integration even when the TDI itself powers up normally.

Module 5: Quality Assurance & Testing SOP

1. OEM anti-counterfeit visual inspection — verify Bently Nevada markings, 138607-01 identification, front-panel labels, connector arrangement, PCB construction, and traceability.
2. Revision audit — photograph the complete 01AB marking and compare it with the original installed unit.
3. Assembly verification — confirm whether the supplied TDI requires the associated 146031-01 Ethernet I/O module.
4. Mechanical inspection — examine card guides, ejector hardware, rack connector, PCB edges, and I/O connectors for damage or deformation.
5. PCB condition inspection — check for corrosion, contamination, overheated components, cracked solder joints, damaged traces, and unauthorized rework.
6. Electrical pre-screening — verify continuity, grounding, isolation, and abnormal resistance before energized testing.
7. Power-on self-test (POST) — install the module in an approved 3500 test rack and confirm expected startup and module recognition.
8. Status-indicator verification — verify applicable OK, TX/RX, and configuration/diagnostic indications under controlled operating conditions.
9. Rack configuration test — connect using the supported configuration interface and confirm access to rack parameters.
10. Ethernet link testing — verify 10Base-T/100Base-TX link establishment, packet exchange, and sustained communication stability.
11. M-series monitor acquisition test — collect representative steady-state values from installed monitor modules such as 3500/40M and 3500/42M.
12. Transient-data test — where the installation has the necessary channel-enabling capability, generate a controlled transient event and verify waveform capture and retrieval.
13. Host software test — verify data availability through the applicable System 1 or configuration-software connection.
14. Power-cycle retention test — restart the rack and confirm correct module recognition, configuration retention, and communications recovery.
15. Extended operating test — monitor Ethernet stability, rack communication, processor diagnostics, unexpected resets, and data continuity.
16. Final QC release — photograph all identification markings, retain communication and data-acquisition records, use ESD-safe packaging, and preserve serial/part-number traceability.

The TDI’s intended role is data acquisition and rack-level communication, so acceptance testing must confirm the complete information path: rack → TDI → Ethernet → host software. A basic POST alone does not establish functional readiness.

Module 6: Procurement & Lifecycle FAQ

Q1. Is BENTLY 3500/22M 138607-01 01AB genuinely in stock, and what is the cutoff for emergency shipping?
Exact availability should be confirmed against 138607-01 and the requested 01AB revision, quantity, condition, and destination. Current references show both available inventory and replacement-oriented listings, so emergency dispatch should be based on physical-stock confirmation rather than catalog status.

Q2. How do you verify the condition and authenticity of an obsolete or surplus 138607-01?
Require OEM marking inspection, complete revision verification, PCB and connector examination, electrical screening, POST, rack-configuration testing, Ethernet link testing, M-series data acquisition, and host-software communication testing. Keep the exact revision marking associated with the QC record.

Q3. Are there firmware compatibility issues engineers should check before issuing the PO?
Yes. The engineering team should preserve the existing rack configuration and verify the TDI hardware revision, installed I/O option, Ethernet arrangement, and System 1/configuration-software compatibility. Firmware/configuration requirements should be checked before commissioning rather than assumed from the 138607-01 base number.

Q4. Can newer 288055-01 replace 138607-01?
Current supplier references identify 288055-01 as a newer Standard TDI replacement for 138607-01. However, procurement should treat this as a controlled migration and verify the associated I/O module, rack software, Ethernet architecture, configuration procedure, and commissioning requirements before approval.

Q5. What warranty and return terms should procurement require?
Require a written warranty period, DOA criteria, return-authorization process, serial/part-number traceability, and exclusions for incorrect configuration, Ethernet wiring faults, electrical overstress, or unauthorized field modification. The quotation should explicitly state 3500/22M 138607-01 and the requested 01AB revision marking.
