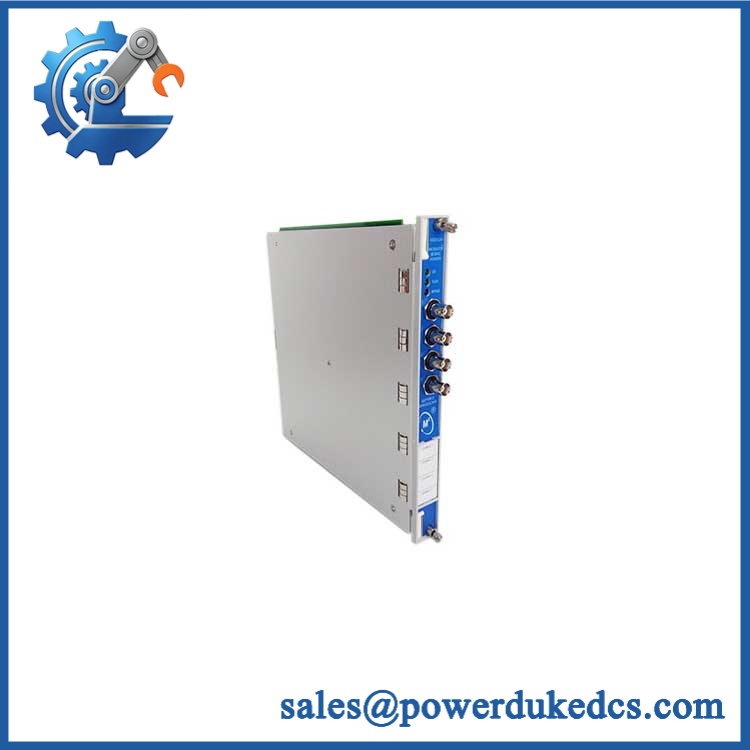

BENTLY 3500/42-01-00 | Proximitor Seismic Monitor System

Description

• Brand: Bently Nevada
• Full Model Number: 3500/42-01-00
• Lifecycle Status: Legacy / Mature 3500 Series hardware
• Core Function: Proximitor/Seismic Monitor for machinery vibration and position protection
• Top 3 Technical Specs: 4 channels; -24 VDC transducer supply; 4–20 mA recorder output per channel
• Complete Assembly: 176449-02 monitor + 128229-01 I/O module
• I/O Configuration: Prox/Seismic I/O with internal terminations
• Signal Types: Proximity, seismic, acceleration, and velocity transducer inputs subject to configuration
• Agency Approval: 00 = None
• Power Consumption: Approx. 7.7 W typical for the monitor
• Input Impedance: 10 kΩ standard I/O
• Stock & Condition: Exact stock confirmation required; New Surplus / Tested Refurbished; Emergency shipping subject to cutoff

The 3500/42-01-00 ordering configuration corresponds to the 176449-02 3500/42M Proximitor/Seismic Monitor combined with 128229-01 Prox/Seismic I/O Module with internal terminations. The “01” option selects the internal-termination Prox/Seismic I/O, while “00” specifies no agency-approval option.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed 3500/42-01-00 can remove four configured vibration or position-monitoring channels from a 3500 machinery-protection rack, creating a direct maintenance risk for rotating equipment. The 3500/42M monitor accepts proximity and seismic transducer signals, conditions those inputs, calculates configured measurement parameters, and compares them against programmable Alert and Danger setpoints. The standard monitor provides a -24 VDC transducer supply, individual 4–20 mA recorder outputs, and buffered transducer outputs.

For TCO, replacing the complete matched assembly can preserve the installed 3500 rack, field sensors, terminal wiring, alarm configuration, and existing monitoring strategy. The more important procurement issue is configuration matching: the 128229-01 internal-termination I/O is a specific option, and other 3500/42 I/O variants use external terminations or internal barriers. A direct replacement therefore avoids the cost of panel rewiring and broader rack migration—but only after the installed transducer type, termination method, and approval requirements have been confirmed. (Current supplier listings can show lead times of 12–16 weeks for this configuration, so staged inventory is worth considering for critical machinery.)

BENTLY 3500/42-01-00

Module 4: Compatibility & Replacement Matrix

Bently Nevada’s documented 3500/42 architecture identifies 128229-01 as the internal-termination Prox/Seismic I/O option and separately lists 128240-01 for external terminations. Internal-barrier versions use different part numbers and must not be assumed equivalent.

⚠️ Field Traps — Watch Out

• Internal vs External Termination: 3500/42-01-00 uses 128229-01 with internal terminations. Substituting the 128240-01 external-termination version can require different field wiring and installation arrangements.
• Transducer Configuration: The monitor is configurable for several measurement functions, while channel pairs are programmed according to the application. Preserve the existing channel setup and verify sensor type and scaling before returning the rack to service.

Module 5: Quality Assurance & Testing SOP

1. OEM anti-counterfeit visual inspection — verify Bently Nevada identification, 3500/42-01-00 configuration, labels, front-panel markings, connectors, and manufacturing traceability.
2. Assembly verification — confirm the monitor is 176449-02 and the associated I/O is 128229-01 where the complete set is supplied.
3. Configuration audit — verify internal terminations and 00 = no agency approval against the purchase specification.
4. Mechanical inspection — examine module guides, card edge, connectors, terminal interfaces, and enclosure for damage, corrosion, contamination, or prior repair.
5. PCB condition inspection — check for overheated components, cracked solder joints, damaged traces, oxidation, and unauthorized modifications.
6. Electrical pre-screening — verify grounding, continuity, isolation, and abnormal resistance before energization.
7. Power-on self-test (POST) — install the monitor/I/O pair in an approved 3500 test rack and verify normal initialization.
8. LED verification — confirm expected OK, TX/RX, and Bypass behavior on the monitor.
9. Four-channel signal simulation — independently apply representative proximity, seismic, or other approved transducer signals to each configured channel.
10. Measurement verification — check representative radial vibration, thrust, acceleration, velocity, eccentricity, or other programmed functions against known test inputs.
11. Gap / position verification — where proximity measurements are configured, verify the expected DC gap response and channel scaling.
12. 4–20 mA load testing — verify each recorder output at representative values and confirm expected loop response.
13. Buffered output test — verify the channel buffered outputs and short-circuit protection behavior under controlled conditions.
14. Alarm simulation — apply controlled Alert and Danger conditions and verify the configured alarm response without exposing connected machinery to an uncontrolled trip.
15. Rack communication test — verify communication between the monitor, rack interface, and configuration software.
16. Extended energized run — monitor channel stability, diagnostics, output behavior, and thermal performance.
17. Final QC release — photograph the complete assembly identification, retain channel-by-channel test records, use ESD-safe packaging, and preserve traceability.

The 3500/42M documentation specifies four input channels, configurable measurement functions, -24 VDC transducer power, individual 4–20 mA outputs, and buffered transducer outputs. A proper acceptance test should exercise those actual signal paths rather than stopping at POST.

Module 6: Procurement & Lifecycle FAQ

Q1. Is BENTLY 3500/42-01-00 genuinely in stock, and what is the cutoff for emergency shipping?
Exact availability should be confirmed against the complete 3500/42-01-00 assembly, including 176449-02 + 128229-01. Current supplier listings show availability ranging from stocked units to approximately 12–16 weeks, so emergency dispatch should be based on confirmed physical inventory rather than catalog status.

Q2. How do you verify the condition and authenticity of an obsolete 3500/42-01-00?
Require OEM marking inspection, complete assembly identification, PCB and connector examination, electrical screening, powered 3500-rack testing, four-channel signal simulation, measurement verification, 4–20 mA testing, and alarm simulation. The monitor and I/O module should be traceable separately if supplied as a complete set.

Q3. Are there any firmware compatibility issues engineers should check before issuing the PO?
Yes. The 3500/42M channels are configured through the 3500 Rack Configuration Software, and the applicable measurement functions and setpoints must match the existing installation. Preserve the current configuration before replacement and verify the installed hardware generation before commissioning.

Q4. Can 128240-01 replace 128229-01?
Not as a blind substitution. 128229-01 is the Prox/Seismic I/O Module with internal terminations, while 128240-01 uses external terminations. The difference can affect field wiring and rack installation, so the replacement must match the site’s termination architecture.

Q5. What warranty and return terms should procurement require?
Require a written warranty period, DOA criteria, return-authorization procedure, complete part-number traceability, and exclusions for incorrect wiring, electrical overstress, or field modification. The quotation should explicitly identify 3500/42-01-00, 176449-02, and 128229-01, along with the tested condition.
