BENTLY 3500/42M 140734-02 | 02R Proximitor Seismic Monitor

• Brand: Bently Nevada
• Full Model Number: 3500/42M 140734-02 02R
• Lifecycle Status: Obsolete / Discontinued; upgrade path to 176449-02
• Core Function: Four-channel Proximitor/Seismic Monitor
• Top 3 Technical Specs: 4 channels; -24 VDC transducer supply; 7.7 W typical power consumption
• Input Signals: 1–4 proximity, velocity, or acceleration transducers
• Input Impedance: 10 kΩ standard Proximitor/acceleration inputs
• Buffered Outputs: 4 short-circuit-protected coaxial outputs
• Buffered Output Impedance: 550 Ω
• Recorder Outputs: Individual +4 to +20 mA DC per channel
• Configuration: 02R revision marking supplied by user; exact revision should be matched to installed hardware
• System: Bently Nevada 3500 Machinery Protection System
• Stock & Condition: Exact 02R revision stock confirmation required; New Surplus / Tested Refurbished; Emergency shipping subject to cutoff

Baker Hughes documents the 3500/42M as a four-channel monitor accepting proximity, velocity, or acceleration transducers. It provides configurable vibration and position measurements, -24 VDC transducer power, 4–20 mA recorder outputs, and four buffered transducer outputs.

Current industrial references identify 140734-02 as the older 3500/42M Proximitor/Seismic Monitor and describe it as discontinued, with 176449-02 identified as the upgrade/replacement path. The “02R” designation supplied here appears in current inventory indexing as a revision-style identifier, but the manufacturer datasheet identifies the spare by 140734-02; procurement should therefore verify the physical revision marking on the required unit.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed 3500/42M 140734-02 can remove four configured vibration or position-monitoring channels from a machinery-protection rack. The monitor conditions proximity, velocity, or acceleration signals and can calculate radial vibration, thrust position, eccentricity, differential expansion, shaft absolute, velocity, acceleration, and other configured variables. Each channel can be assigned to a pair-based measurement function, with programmable Alert and Danger setpoints.

The TCO decision is usually straightforward when the existing 3500 rack and field sensors remain serviceable: an exact legacy spare can restore the installed protection architecture without replacing the rack, I/O wiring, sensors, alarm logic, or associated monitoring hardware. However, this is not a product to treat as a generic 3500/42M substitute. The older 140734-02 is listed as discontinued, with 176449-02 identified as the upgrade path, so engineers should distinguish an exact legacy replacement from an upgrade migration. (For critical rotating equipment, a tested legacy spare can avoid an unplanned upgrade project during an outage.)

Module 4: Compatibility & Replacement Matrix

The manufacturer documentation specifies a 7.7 W typical power consumption, 10 kΩ standard input impedance for Proximitor and acceleration inputs, 550 Ω buffered output impedance, -24 VDC transducer supply, and individual 4–20 mA recorder outputs.

⚠️ Field Traps — Watch Out

• 140734-02 vs 176449-02: Current technical references identify 140734-02 as discontinued and point to 176449-02 as the upgrade. Do not release an upgrade under the assumption that it is an undocumented one-for-one replacement; verify I/O, configuration, software, and commissioning requirements first.
• 02R Revision Identification: The user-supplied 02R should be treated as a revision/marking requirement unless the nameplate documentation confirms otherwise. Photograph the original label and match the replacement revision before shipment. Public manufacturer documentation specifies the spare as 140734-02, not as a separate 02R part number.

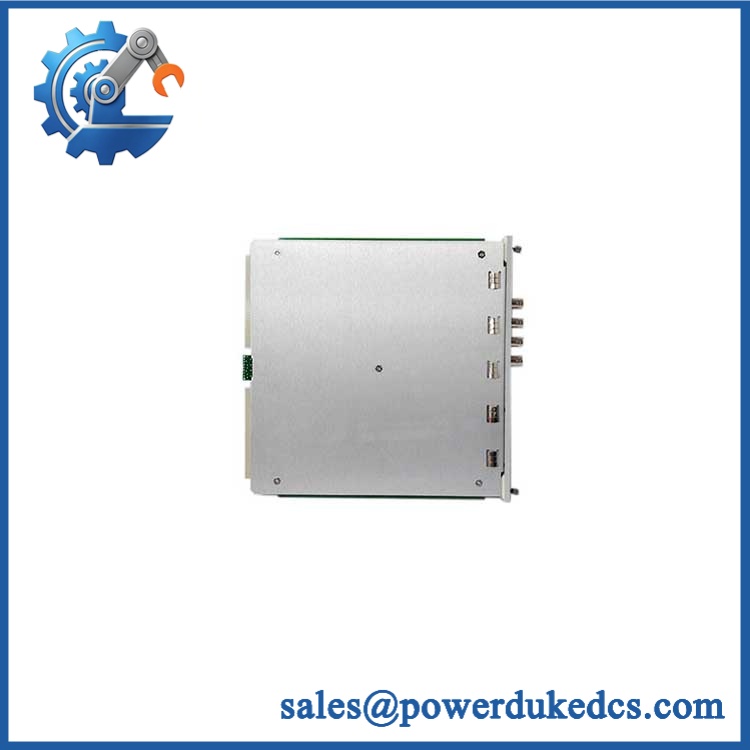

BENTLY 3500/42M 140734-02

Module 5: Quality Assurance & Testing SOP

1. OEM anti-counterfeit visual inspection — verify Bently Nevada markings, 140734-02 identification, front-panel legends, connectors, PCB construction, and manufacturing traceability.
2. Revision verification — photograph and record the requested 02R marking, then compare it with the original installed unit.
3. Assembly identification audit — confirm that the unit is the 3500/42M Proximitor/Seismic Monitor rather than a related I/O module such as 128229-01 or 128240-01.
4. Mechanical inspection — inspect card edges, connectors, ejector hardware, PCB surfaces, and mounting interfaces for corrosion, deformation, or previous repair.
5. Electrical pre-screening — verify continuity, grounding, isolation, and abnormal resistance conditions before applying power.
6. Power-on self-test (POST) — install the monitor in an approved 3500 test rack and confirm normal initialization.
7. LED verification — check the OK, TX/RX, and Bypass indicators under controlled operating conditions.
8. Four-channel signal simulation — independently inject representative proximity, velocity, and/or acceleration signals according to the intended channel configuration.
9. Measurement verification — validate the programmed measurement type, scaling, filtering, and calculated static values for every active channel.
10. -24 VDC transducer-supply test — verify stable sensor power under representative load conditions.
11. 4–20 mA load testing — test each recorder loop at representative low, mid-scale, and high-scale values and confirm loop stability.
12. Buffered-output testing — verify each coaxial buffered transducer output and confirm correct signal reproduction under controlled loading.
13. Alarm simulation — generate controlled Alert and Danger conditions and verify the programmed alarm response without exposing connected machinery to an uncontrolled shutdown.
14. Rack communication test — verify communication with the rack interface and configuration software.
15. Configuration-retention test — perform a controlled power cycle and confirm channel assignments, setpoints, and measurement configuration remain correct.
16. Extended operating test — monitor channel stability, diagnostics, thermal behavior, analog outputs, and unexpected resets.
17. Final QC release — photograph the complete identification, retain channel-by-channel test data, record the revision marking, use ESD-safe packaging, and preserve serial/part-number traceability.

The appropriate acceptance test is more than POST: the four signal channels, transducer supply, recorder loops, buffered outputs, configuration, and alarm functions all need functional verification before release.

Module 6: Procurement & Lifecycle FAQ

Q1. Is BENTLY 3500/42M 140734-02 02R genuinely in stock, and what is the cutoff for emergency shipping?
Exact inventory should be confirmed against 140734-02 plus the requested 02R revision marking, quantity, condition, and destination. Current references show conflicting availability: one supplier reports immediate inventory while another classifies 140734-02 as discontinued and unavailable. Emergency shipment therefore requires physical-stock verification rather than reliance on catalog status.

Q2. How do you verify the condition and authenticity of an obsolete or surplus 140734-02?
Require full part-number and revision inspection, OEM marking verification, PCB and connector examination, electrical screening, powered 3500-rack testing, four-channel signal simulation, -24 VDC supply verification, 4–20 mA testing, buffered-output testing, and alarm simulation. The exact revision marking should be included in the QC record.

Q3. Are there any firmware compatibility issues I should warn my engineers about before issuing the PO?
Yes. The 3500/42M channels are configured through 3500 Rack Configuration Software, and the channel functions are assigned in pairs. Preserve the existing configuration, setpoints, measurement types, and filtering parameters before replacing the module. A simple powered-up replacement is not sufficient for commissioning.

Q4. Can 176449-02 replace 140734-02 02R?
It is the documented upgrade path, but it should not be approved as a blind drop-in substitution. Current references identify 140734-02 as discontinued and 176449-02 as the upgrade. Engineering should verify the complete monitor/I/O configuration, rack software, field termination arrangement, and commissioning procedure before authorizing the change.

Q5. What warranty and return terms should procurement require?
Require a written warranty period, DOA criteria, return-authorization process, serial/part-number traceability, and explicit identification of the 02R revision requirement. Exclusions should cover incorrect wiring, electrical overstress, unauthorized configuration changes, and installation damage.
