BENTLY 3500/65 145988-02 02E | 16 Channel Temperature Monitor

Description

• Brand: Bently Nevada
• Full Model Number: 3500/65 145988-02 02E
• Lifecycle Status: Active 3500/65 product family; revision-specific verification required
• Core Function: 16-channel temperature monitoring
• Top 3 Technical Specs: 16 channels; RTD and isolated-tip thermocouple inputs; 1°C / 1°F resolution
• Main Monitor PWA: 145988-02
• Revision: 02E — verify physical marking
• Input Types: 3-wire RTD; 4-wire RTD; isolated-tip TC
• Alarm Functions: Programmable Alert and Danger setpoints
• Monitor Power: Approximately 3 W nominal
• Associated I/O: 172103-01 internal termination or 172109-01 external termination
• Configuration Software: 3500 Rack Configuration Software
• Stock & Condition: Exact 02E revision and I/O configuration confirmation required; New OEM / New Surplus / Tested Refurbished; emergency shipping subject to cutoff

Bently Nevada documentation identifies 145988-02 as the 3500/65 16-Channel Temperature Monitor. The module supports RTD and isolated-tip thermocouple inputs, with 1°C or 1°F resolution. The standard spare structure lists 172103-01 for internal terminations and 172109-01 for external terminations.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed 3500/65 145988-02 can remove as many as 16 temperature-monitoring channels from a machinery-protection rack. Those channels may cover bearing, winding, process, lube-oil, casing, or other temperature points tied to the machine’s alarm strategy. The monitor accepts 3-wire RTD, 4-wire RTD, and isolated-tip thermocouple configurations, with programmable temperature limits and individual channel monitoring.

The TCO case favors replacing the matched monitor and I/O assembly when the existing 3500 rack, sensors, wiring, and protection logic remain serviceable. There is little economic reason to redesign the entire temperature-monitoring system for an isolated monitor failure. The important procurement constraint is hardware matching: internal versus external termination, I/O revision, firmware compatibility, and the requested 02E marking all need verification. (Bently Nevada documentation specifically warns that certain newer I/O revisions require a firmware update to avoid an I/O mismatch and 562 ADC fault.)

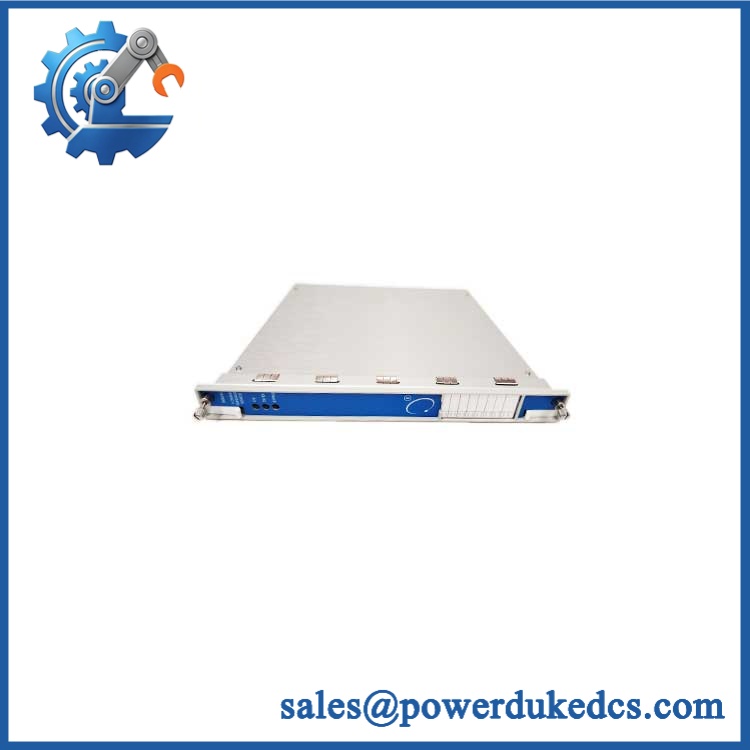

BENTLY 3500/65 145988-02 02E

Module 4: Compatibility & Replacement Matrix

The documented 3500/65 ordering structure distinguishes internal-termination and external-termination I/O. The monitor is 145988-02, while the associated I/O is a separate replaceable component.

⚠️ Field Traps — Watch Out

• I/O Revision Mismatch: Bently Nevada documentation states that when certain newer I/O modules are installed, the monitor firmware must be upgraded after removing the I/O module. Failure to follow that sequence can generate an I/O Module Mismatch and 562 ADC Failure event.
• Internal vs External Terminations: 172103-01 is the internal-termination I/O version, while 172109-01 is the external-termination version. These should not be treated as interchangeable without checking the field wiring and terminal arrangement.

Module 5: Quality Assurance & Testing SOP

1. OEM anti-counterfeit visual inspection — verify Bently Nevada markings, 145988-02 identification, requested 02E revision, labels, connectors, front-panel indicators, and manufacturing traceability.
2. Revision audit — photograph the complete nameplate and verify the 02E marking against the purchase requirement.
3. I/O configuration audit — establish whether the assembly uses 172103-01 internal terminals or 172109-01 external terminals.
4. Mechanical inspection — inspect card guides, ejector hardware, connectors, terminal interfaces, PCB edges, and mounting surfaces.
5. PCB condition inspection — check for corrosion, contamination, overheated components, cracked solder joints, damaged traces, and unauthorized rework.
6. Electrical pre-screening — verify continuity, isolation, grounding, and abnormal resistance before energization.
7. Power-on self-test (POST) — install the monitor in an approved 3500 rack and verify normal initialization and diagnostic status.
8. Status LED verification — check expected OK, TX/RX, and Bypass indications under controlled conditions.
9. RTD simulation — apply calibrated resistance values for 3-wire and 4-wire RTD inputs on applicable channels and verify temperature conversion.
10. Thermocouple simulation — inject controlled isolated-tip TC-equivalent signals and verify correct temperature measurement.
11. Channel scaling verification — test representative low, mid-range, and high values across required channels.
12. Temperature differential testing — where configured, simulate paired temperatures and verify calculated differential values.
13. Alarm simulation — drive each configured channel through Alert and Danger thresholds and verify the expected alarm response.
14. I/O recognition test — confirm correct recognition of the installed I/O revision without generating an I/O mismatch or ADC fault.
15. Firmware compatibility check — record the monitor firmware and verify it meets the requirement for the installed I/O revision before final commissioning.
16. TMR testing — where the rack uses TMR temperature monitoring, verify the three-monitor grouping and voting behavior.
17. Configuration-retention test — perform a controlled power cycle and confirm channel assignments, setpoints, scaling, and alarm configuration.
18. Extended energized run — monitor diagnostics, temperature stability, communication status, and intermittent channel faults.
19. Final QC release — photograph identification markings, retain channel-by-channel test records, document firmware and I/O revisions, package using ESD protection, and preserve traceability.

Bently Nevada’s published data requires configuration-specific testing, particularly where I/O revisions and firmware compatibility are involved. The correct test target is the complete monitor/I/O combination, not merely a successful power-up.

Module 6: Procurement & Lifecycle FAQ

Q1. Is BENTLY 3500/65 145988-02 02E genuinely in stock, and what is the cutoff for emergency shipping?
Exact availability should be confirmed against 145988-02, the requested 02E revision, associated I/O part number, quantity, condition, and destination before PO release. Current inventory references show stocked 3500/65 configurations, but revision-level availability must be confirmed directly before an emergency shipment is committed.

Q2. How do you verify the condition and authenticity of an obsolete or surplus 145988-02?
Require complete part-number and revision inspection, OEM marking verification, PCB and connector examination, electrical screening, powered 3500-rack testing, RTD simulation, thermocouple simulation, alarm testing, and I/O-recognition testing. The 02E marking should be photographed and retained with the QC record.

Q3. Are there any firmware compatibility issues I should warn my engineers about before issuing the PO?
Yes. This is the primary technical trap. Bently Nevada’s 3500/65 documentation states that replacement with certain newer I/O revisions requires the I/O module to be removed before upgrading monitor firmware. Skipping that sequence can produce an I/O Module Mismatch and 562 ADC Failure event. Record the installed firmware and I/O revision before approving the change.

Q4. Can any 3500/65 I/O module replace the existing one?
No. The 3500/65 supports different I/O arrangements, including 172103-01 internal termination and 172109-01 external termination. Match the termination method, field wiring, I/O revision, and firmware requirement before approving a substitute.

Q5. What warranty and return terms should procurement require?
Require a written warranty period, DOA criteria, return-authorization procedure, serial/part-number traceability, and exclusions for incorrect field wiring, incompatible I/O revisions, electrical overstress, or unauthorized configuration changes. The quotation should explicitly identify 3500/65 145988-02 02E, the associated I/O configuration, and the supplied condition.
