BENTLY 3500/65 145988-02 02E | 16 Channel Temperature Monitor

Description

• Brand: Bently Nevada
• Full Model Number: 3500/65 145988-02 02E
• Lifecycle Status: Active 3500/65 product family; revision-specific procurement required
• Core Function: 16-channel temperature monitoring
• Top 3 Technical Specs: 16 temperature channels; RTD / isolated-tip thermocouple inputs; ±3°C accuracy at +25°C
• Main Monitor PWA: 145988-02
• I/O Module: 172103-01 internal-termination or 172109-01 external-termination configuration
• Input Types: 3-wire RTD; 4-wire RTD; isolated-tip thermocouple
• Resolution: 1°C or 1°F
• Alarm Functions: Programmable Alert and Danger setpoints
• Power Consumption: Approximately 3 W nominal
• Operating Temperature: -30°C to +65°C
• Revision Marking: 02E — verify directly from the installed nameplate
• Stock & Condition: Exact 02E revision stock confirmation required; New OEM / New Surplus / Tested Refurbished; Emergency shipping subject to cutoff

Bently Nevada documentation identifies 145988-02 as the 3500/65 16-Channel Temperature Monitor. The monitor accepts RTD and isolated-tip thermocouple signals, provides 1°C/1°F resolution, and specifies approximately ±3°C accuracy at +25°C. The standard hardware uses a separate temperature I/O module.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed 3500/65 145988-02 can remove up to 16 temperature-monitoring channels from a 3500 machinery-protection rack, affecting bearing, winding, process, lube-oil, or other temperature points tied to the installed monitoring strategy. The monitor conditions RTD and isolated-tip thermocouple signals and compares measured values against programmable alarm limits. In a TMR installation, three adjacent temperature monitors are used as a group, so the exact hardware revision becomes even more important.

From a TCO perspective, replacing the matched monitor and I/O arrangement can preserve the existing 3500 rack, field sensors, alarm setpoints, wiring, and control-system integration. That is normally less expensive than redesigning the temperature-monitoring system or migrating the entire machinery-protection rack. The procurement risk is configuration mismatch: 145988-02 may use internal- or external-termination I/O, and newer I/O revisions can require a firmware/configuration review before commissioning. (For the supplied 02E revision, the revision marking should be physically verified rather than inferred from the base 145988-02 number.)

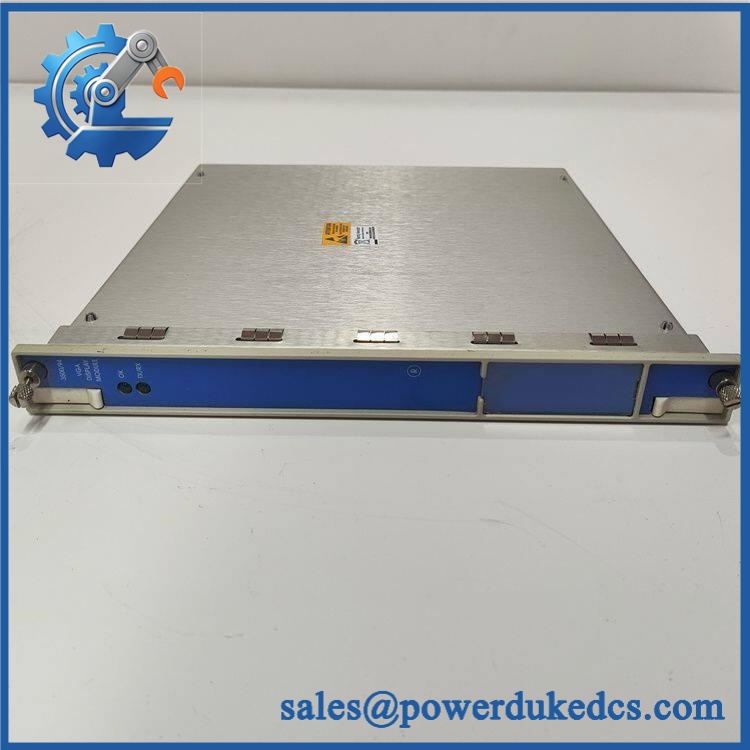

BENTLY 3500/65 145988-02 02E

Module 4: Compatibility & Replacement Matrix

The published 3500/65 specifications identify 172103-01 as the internal-termination RTD/isolated-tip TC I/O module and 172109-01 as the external-termination version. The monitor itself is 145988-02.

⚠️ Field Traps — Watch Out

• I/O Revision Mismatch: Do not order only “3500/65 145988-02” when the site requires the 02E revision. Verify the monitor revision and associated I/O module revision together.
• Firmware / I/O Compatibility: Bently Nevada maintenance references indicate that replacing certain 3500/65 I/O revisions can require a monitor firmware update; otherwise, an I/O module mismatch or ADC fault can occur. Verify the installed firmware before hardware replacement.

Module 5: Quality Assurance & Testing SOP

1. OEM anti-counterfeit visual inspection — verify Bently Nevada markings, 145988-02 identification, requested 02E revision, labels, connectors, front-panel indicators, and manufacturing traceability.
2. Revision audit — photograph the complete monitor nameplate and compare the 02E marking against the customer’s installed unit.
3. I/O configuration verification — establish whether the supplied assembly uses 172103-01 internal terminals or 172109-01 external terminals.
4. Mechanical inspection — inspect card guides, ejector hardware, connectors, terminal interfaces, PCB edges, and mounting surfaces.
5. PCB condition inspection — check for corrosion, contamination, overheating, cracked solder joints, damaged traces, and unauthorized rework.
6. Electrical pre-screening — perform continuity, grounding, isolation, and abnormal-resistance checks before energization.
7. Power-on self-test (POST) — install the monitor in an approved 3500 rack and verify normal initialization and diagnostic status.
8. Status LED verification — verify expected OK, TX/RX, and Bypass behavior during controlled operation.
9. RTD simulation — apply calibrated 3-wire and 4-wire RTD resistance values to applicable channels and verify correct temperature conversion.
10. Thermocouple simulation — inject controlled isolated-tip TC-equivalent signals and verify correct temperature indication.
11. Channel-scaling verification — test representative low-, mid-, and high-range points on all required channels.
12. Temperature-differential testing — where configured, simulate paired temperature inputs and verify the calculated differential.
13. Alarm simulation — drive each active channel through configured Alert and Danger thresholds and verify the expected alarm response.
14. TMR voting test — where the rack is configured for TMR operation, simulate redundant temperature conditions and verify voting behavior across the three-monitor group.
15. I/O revision test — verify that the installed I/O module is correctly recognized and that no I/O mismatch or ADC diagnostic is generated.
16. Configuration-retention test — perform a controlled power cycle and confirm channel types, setpoints, scaling, and alarm assignments remain intact.
17. Extended energized run — monitor temperature stability, diagnostic status, communication, and intermittent channel faults.
18. Final QC release — photograph the complete identification, retain channel-by-channel test results, document the I/O and firmware revisions, package using ESD protection, and preserve traceability.

The 3500/65 architecture makes the I/O hardware and monitor revision part of the acceptance criteria. Public maintenance references specifically warn that certain I/O revisions can require a firmware update to avoid mismatch and ADC faults.

Module 6: Procurement & Lifecycle FAQ

Q1. Is BENTLY 3500/65 145988-02 02E genuinely in stock, and what is the cutoff for emergency shipping?
Exact availability should be confirmed against 145988-02, the requested 02E revision, associated I/O configuration, quantity, and destination before PO release. Current supplier listings show materially different lead times, ranging from short lead time to approximately 8–10 weeks, so emergency dispatch should be based on physically verified inventory.

Q2. How do you verify the condition and authenticity of an obsolete or surplus 145988-02?
Require complete part-number and revision verification, OEM marking inspection, PCB and connector examination, electrical screening, powered 3500-rack testing, RTD simulation, thermocouple simulation, alarm testing, and I/O-module recognition testing. The exact 02E marking should remain attached to the QC record.

Q3. Are there any firmware compatibility issues engineers should check before issuing the PO?
Yes. The most important check concerns the monitor firmware and I/O revision combination. Bently Nevada maintenance references indicate that certain I/O-module replacements can require a monitor firmware upgrade; failure to follow the required sequence can generate I/O module mismatch and ADC fault conditions. Record the installed firmware before replacing the hardware.

Q4. Can any 3500/65 I/O module replace the installed I/O module?
No. The 3500/65 uses different I/O configurations for internal versus external termination, and some installations require specific firmware compatibility. The installed I/O part number and revision must be matched before procurement.

Q5. What warranty and return terms should procurement require?
Require a written warranty period, DOA criteria, return-authorization procedure, serial/part-number traceability, and exclusions for incorrect field wiring, incompatible I/O revision, electrical overstress, and unauthorized configuration changes. The quotation should explicitly identify 3500/65 145988-02 02E, the associated I/O configuration, and the tested condition.
