BENTLY 3701/55 289761-01 | ADAPT ESD Terminal Base Assembly

Description

• Brand: Bently Nevada
• Full Model Number: 3701/55 289761-01
• Lifecycle Status: Active ADAPT 3701/55 product family
• Core Function: ADAPT ESD Terminal Base Assembly
• Top 3 Technical Specs: 3701/55 ADAPT ESD platform; terminal/base assembly; interfaces CPU and relay I/O modules
• System: Bently Nevada ADAPT 3701/55 Emergency Shutdown Device
• Module Type: Terminal Base Assembly
• Safety Role: Mechanical/electrical mounting and field-termination base for ESD electronics
• Associated CPU: 323174-01
• Associated Relay I/O: 323073-01 / 323073-02
• Associated Terminal Block: 289036-01
• Installation: Vertical mounting orientation
• Enclosure Requirement: Minimum 9-inch enclosure depth
• Stock & Condition: Exact stock confirmation required; New OEM / New Surplus; Emergency shipping subject to cutoff

Bently Nevada’s current documentation identifies 289761-01 as the ADAPT ESD Terminal Base Assembly used with the 3701/55 Emergency Shutdown Device. It is not the complete 3701/55 ESD monitor; it forms the base/interface assembly supporting the CPU and relay-output hardware.

Module 3: Obsolescence & Supply Chain Deep Dive

A missing or damaged 289761-01 can prevent maintenance personnel from rebuilding a 3701/55 ADAPT ESD system even when the CPU and relay-output modules are still available. The terminal base is the physical and electrical foundation for the ADAPT ESD assembly, providing the interface for the 323174-01 CPU module, 323073-01/323073-02 relay output module, and associated terminal hardware. Because the 3701/55 is a safety shutdown device for rotating machinery, an unavailable base assembly can extend an outage far beyond the cost of the component itself.

For TCO, replacing the correct terminal base allows the existing ADAPT ESD architecture to remain in service without redesigning the emergency-shutdown system. The base itself does not contain the programmable safety logic, so there is no justification for replacing the complete ESD platform solely because this mechanical/electrical interface has failed. The installation detail matters: Bently Nevada specifies that the 3701/55 terminal base must be mounted vertically, with the power-supply terminal exiting horizontally for proper heat dissipation, and calls for a minimum 9-inch enclosure depth. (A base that fits physically but is installed with the wrong orientation can create thermal and commissioning problems.)

Module 4: Compatibility & Replacement Matrix

Bently Nevada’s ordering information explicitly lists 289761-01 as the terminal base assembly and separates it from the 323174-01 CPU module and 323073-01/323073-02 relay-output modules.

⚠️ Field Traps — Watch Out

• Wrong Part Classification: Do not issue a PO describing 289761-01 as the complete 3701/55 ESD controller. Bently Nevada identifies it specifically as the ADAPT ESD Terminal Base Assembly.
• Mounting / Thermal Arrangement: The terminal base must be mounted vertically, with the power-supply terminal exiting horizontally for heat dissipation. The enclosure depth should be at least 9 inches.

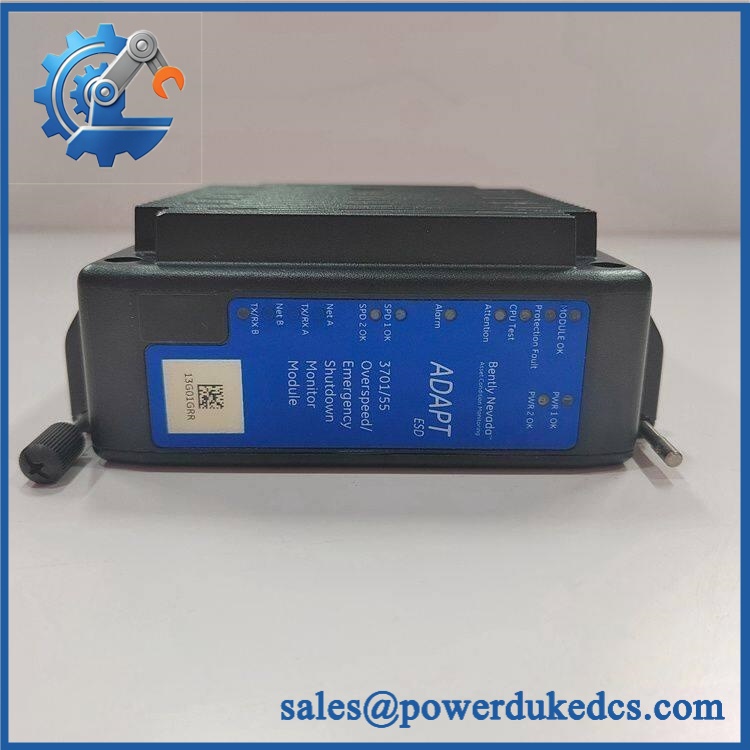

BENTLY 3701/55 289761-01

Module 5: Quality Assurance & Testing SOP

1. OEM anti-counterfeit visual inspection — verify Bently Nevada markings, 289761-01 identification, machining, connectors, mounting features, and manufacturing traceability.
2. Part-number verification — record 289761-01 independently from the associated 3701/55 CPU and relay modules.
3. Mechanical inspection — inspect the complete base for cracks, distortion, corrosion, damaged mounting points, terminal damage, or unauthorized modification.
4. Connector inspection — examine module interfaces, terminal connections, contacts, and mating surfaces for bent pins, oxidation, contamination, or mechanical wear.
5. Electrical continuity screening — verify approved terminal-to-interface continuity and absence of unintended shorts before assembly.
6. Grounding verification — check the protective-grounding path against the approved 3701/55 installation drawing.
7. Assembly-fit test — install the applicable 323174-01 CPU and 323073-01/323073-02 relay module to verify correct seating and mechanical retention.
8. Terminal-block verification — confirm correct installation and fit of the applicable terminal hardware, including the 289036-01 spare terminal block where used.
9. Power-path verification — verify the base’s power-distribution interfaces before installing the complete system.
10. System POST — energize the completed ADAPT ESD assembly and verify expected CPU, relay, and diagnostic startup behavior.
11. I/O functional testing — test the relay-output module after installation and confirm all field-terminal paths respond as configured.
12. ESD logic verification — validate the complete 3701/55 safety logic only after the base, CPU, and relay modules have passed their individual inspections.
13. Communication testing — verify the assembled system communicates with the applicable HMI or plant automation interface using the configured Ethernet/Modbus TCP path.
14. Thermal installation check — confirm vertical mounting, enclosure depth, power-supply orientation, and available clearance before final release.
15. Final QC release — photograph the part identification and terminal arrangement, retain inspection records, package to prevent connector damage, and preserve traceability.

Because 289761-01 is a terminal base, not an active processor, a standalone firmware or software test is not appropriate. Acceptance should concentrate on mechanical integrity, terminal continuity, grounding, module fit, and correct operation after integration into a complete 3701/55 ADAPT ESD assembly.

Module 6: Procurement & Lifecycle FAQ

Q1. Is BENTLY 3701/55 289761-01 genuinely in stock, and what is the cutoff for emergency shipping?
Exact availability should be confirmed against 289761-01, quantity, condition, and destination before PO release. Current supplier listings show differing lead times, including approximately 8 weeks for some new units, so emergency dispatch should be based on physically confirmed inventory rather than catalog status.

Q2. How do you verify the condition and authenticity of a 289761-01?
Require complete part-number verification, OEM marking inspection, mechanical examination, connector inspection, continuity testing, grounding verification, and a complete assembly-fit test with the applicable 3701/55 electronics. The base should remain traceable to the QC record.

Q3. Are there firmware compatibility issues engineers should check before issuing the PO?
Not for the 289761-01 base itself. Firmware and application configuration apply to the active ADAPT ESD electronics, particularly the CPU and safety-control system. The complete assembly should be validated using the applicable Bently Nevada Monitor Configuration software after the base replacement.

Q4. Can 289761-01 be replaced by another 3701/55 enclosure or terminal assembly?
Do not assume interchangeability. The terminal base establishes the mechanical and electrical interfaces for the ADAPT ESD modules, so the replacement must match the 3701/55 configuration and physical installation requirements. Verify terminal arrangement, mounting geometry, grounding, and enclosure clearance before substitution.

Q5. What warranty and return terms should procurement require?
Require a written warranty period, DOA criteria, return-authorization procedure, exact part-number traceability, and exclusions for installation damage, incorrect mounting, terminal modification, or unauthorized machining. The quotation should explicitly identify 289761-01 as the ADAPT ESD Terminal Base Assembly, rather than describing it as the complete 3701/55 controller.
